Power Steering Pump - 2.0L ZETEC: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the accessory drive belt. .

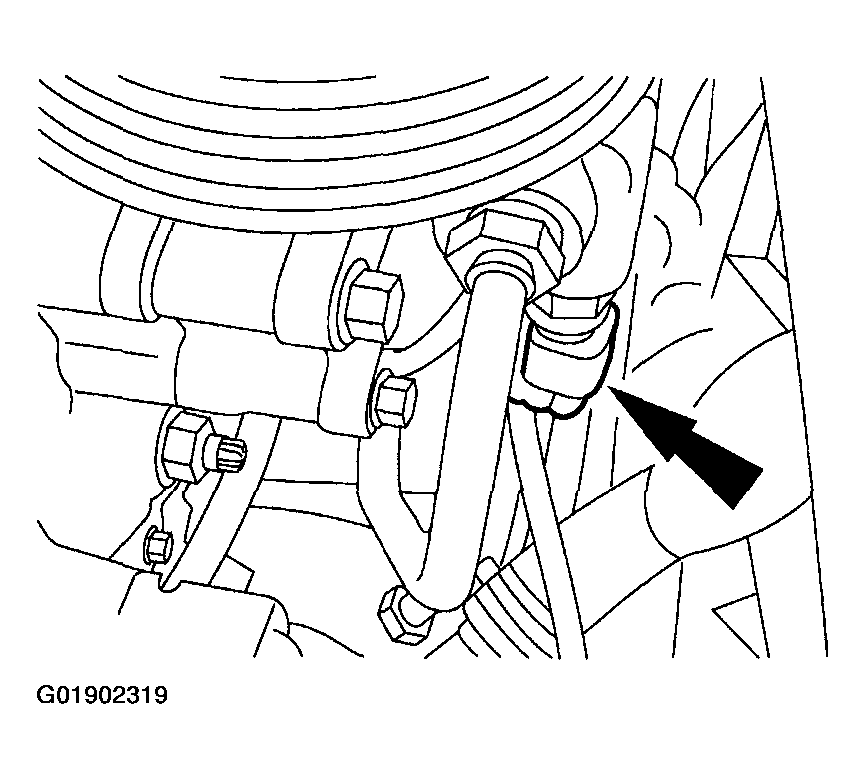

Fig 1: Disconnecting Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the electrical connector.

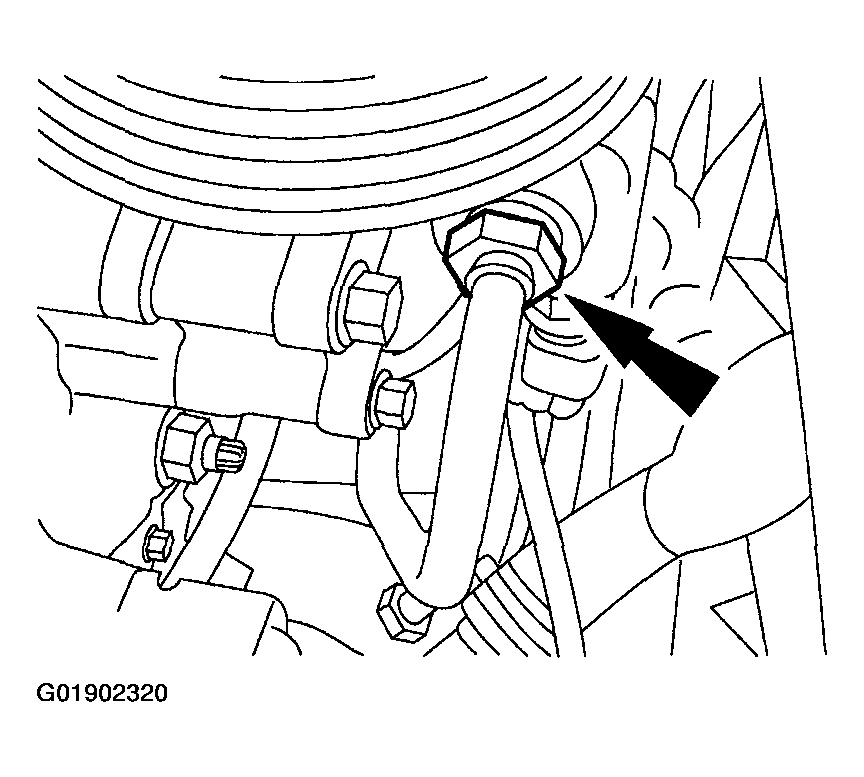

Fig 2: Disconnecting Power Steering Pressure Line
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Drain the power steering fluid into a suitable drain pan.
Disconnect the power steering pressure line.

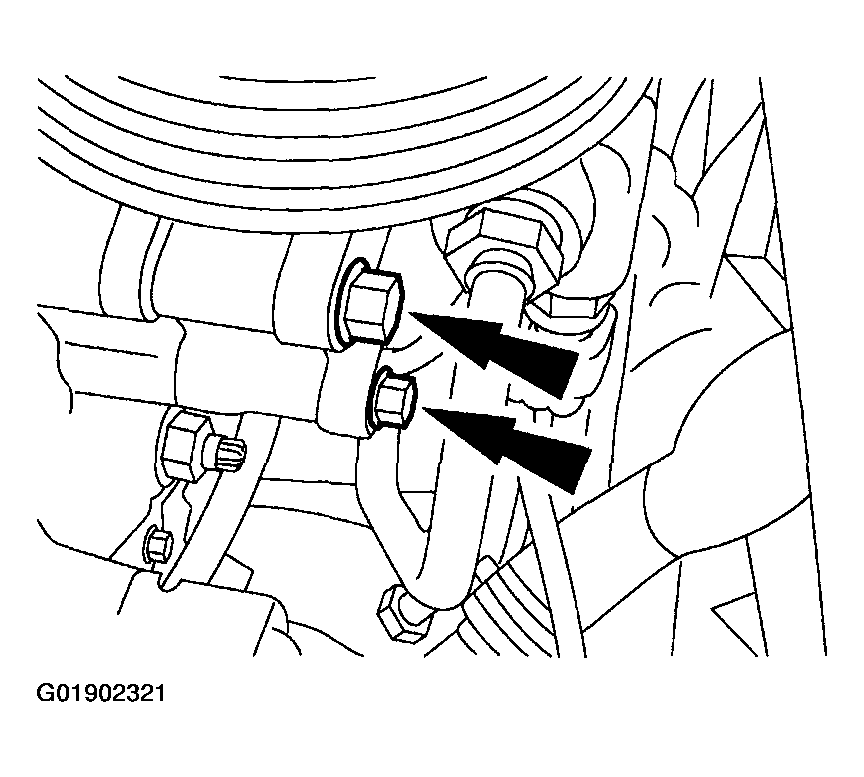

Fig 3: Removing Lower Power Steering Pump Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the lower power steering pump bolts.
Lower the vehicle.

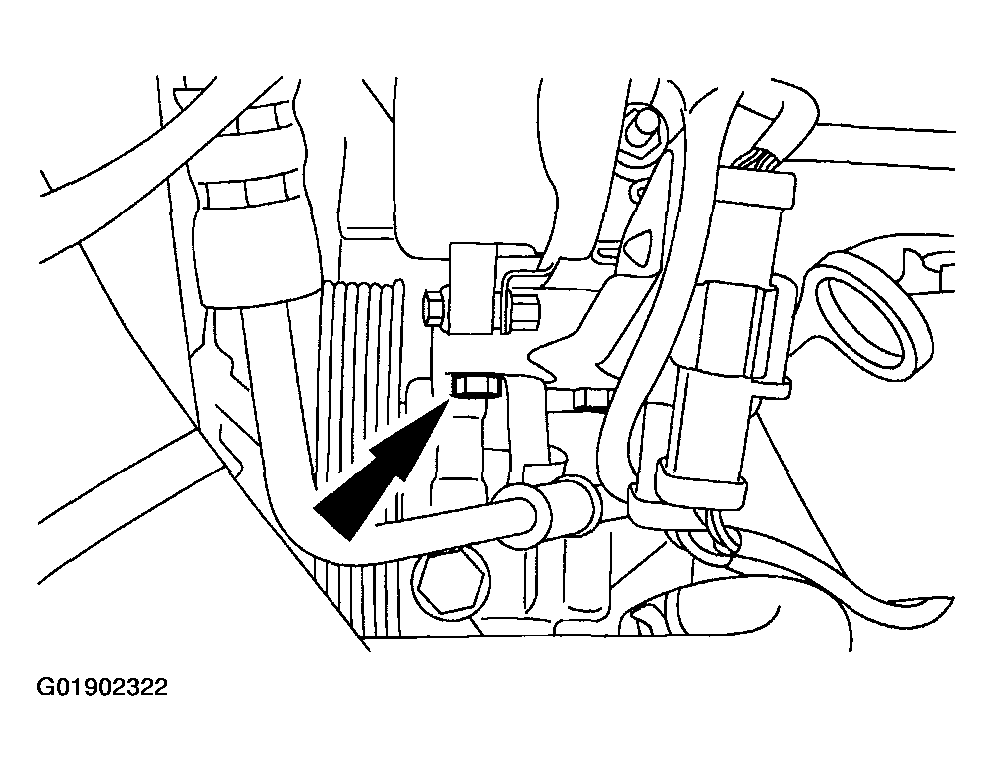

Fig 4: Removing Power Steering Pressure Line Bracket Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the power steering pressure line bracket bolt.

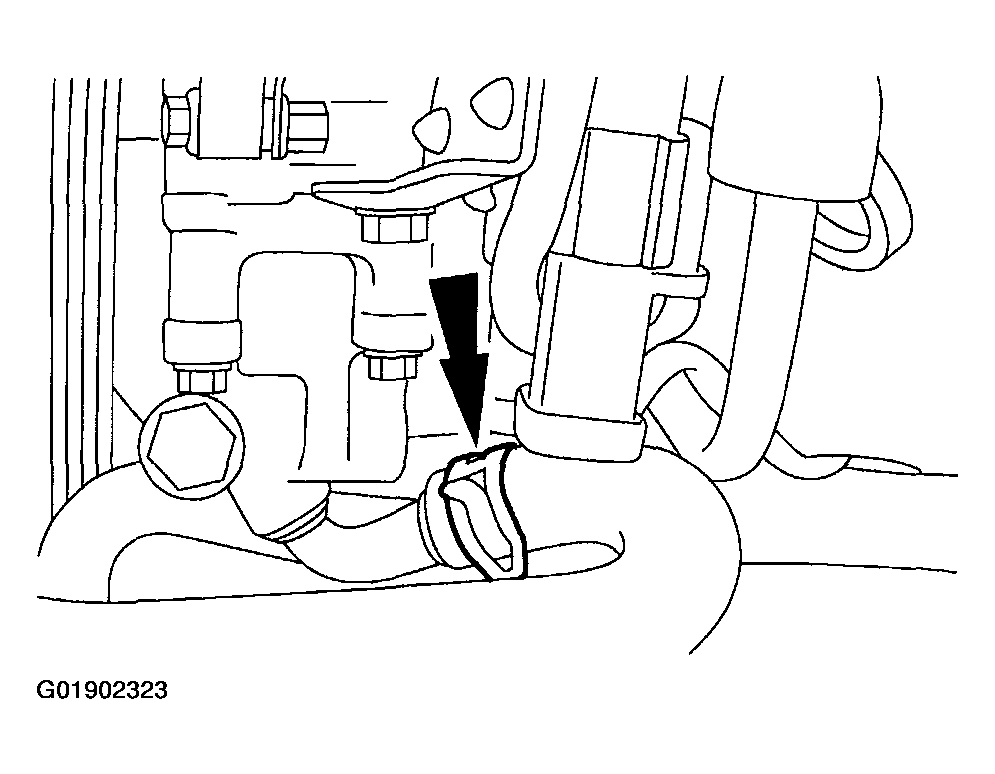

Fig 5: Disconnecting Power Steering Low Pressure Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering low pressure hose.

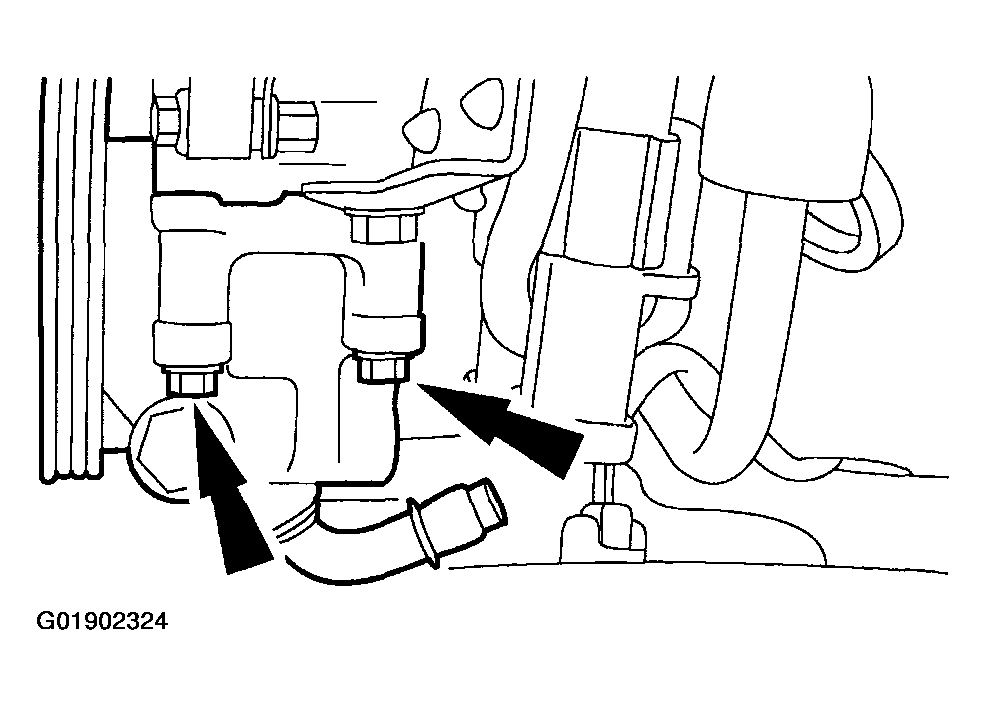

Fig 6: Removing Bolts & Power Steering Pump
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the power steering pump.

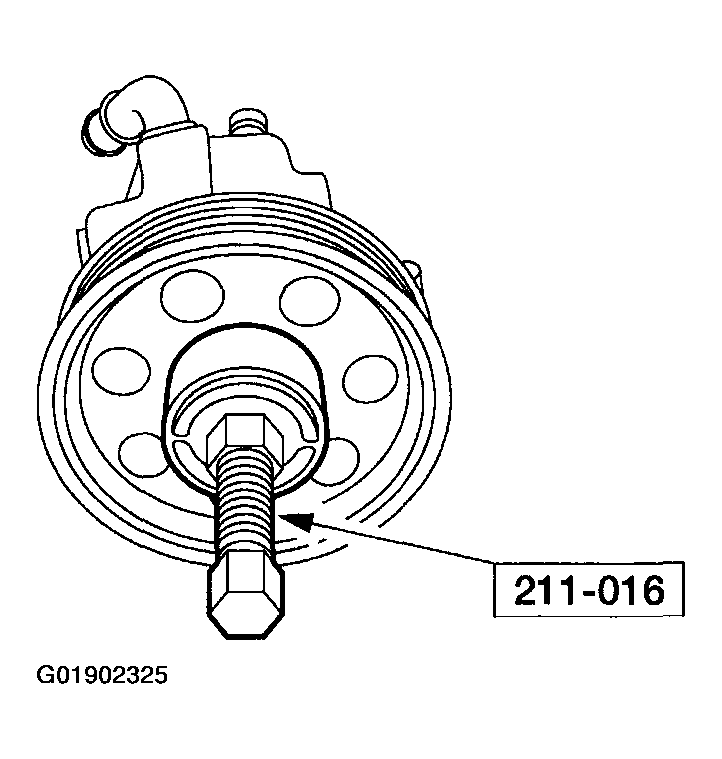

Fig 7: Removing Power Steering Pump Pulley Using Tool
Courtesy of MAZDA MOTORS CORP.
Using the special tool, remove the power steering pump pulley.
