Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

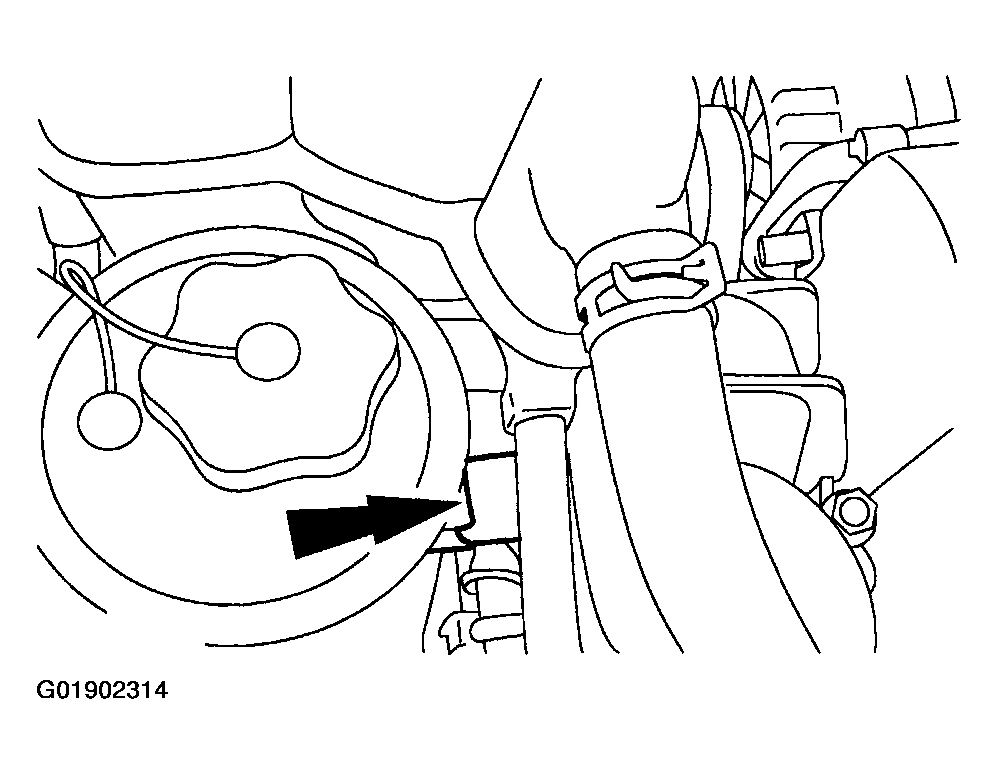

Fig 1: Disconnecting Power Steering Fluid Return Hose

Courtesy of MAZDA MOTORS CORP.

NOTE:

Drain the power steering fluid into a suitable drain pain.

Disconnect the power steering fluid return hose.

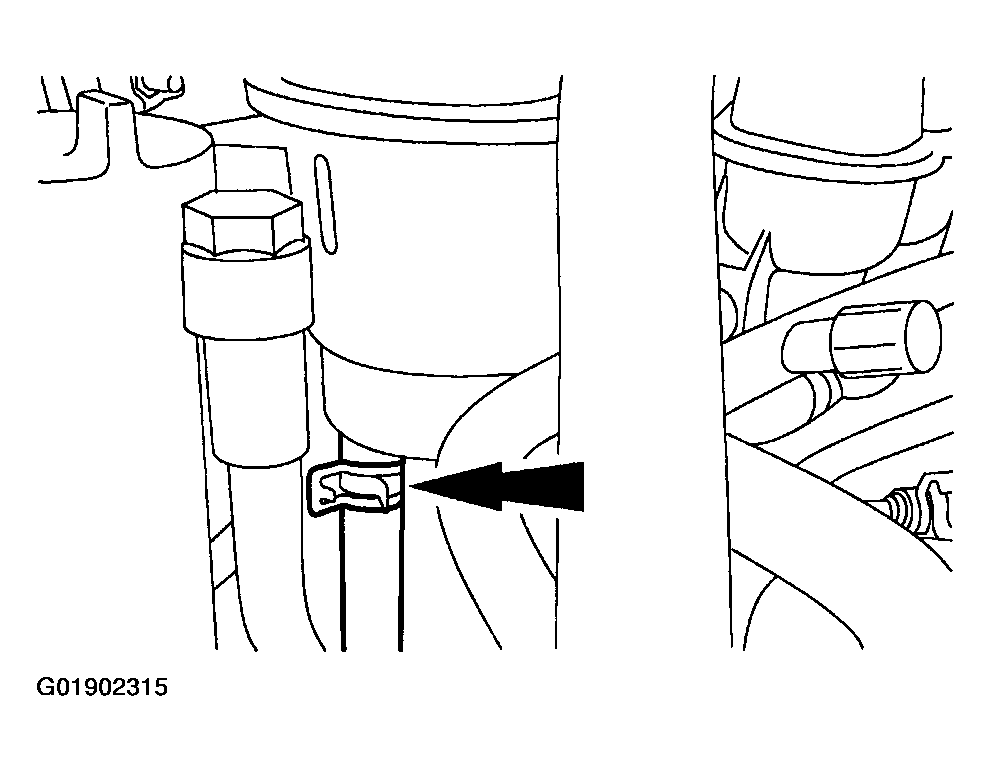

Fig 2: Disconnecting Power Steering Low Pressure Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering low pressure hose.

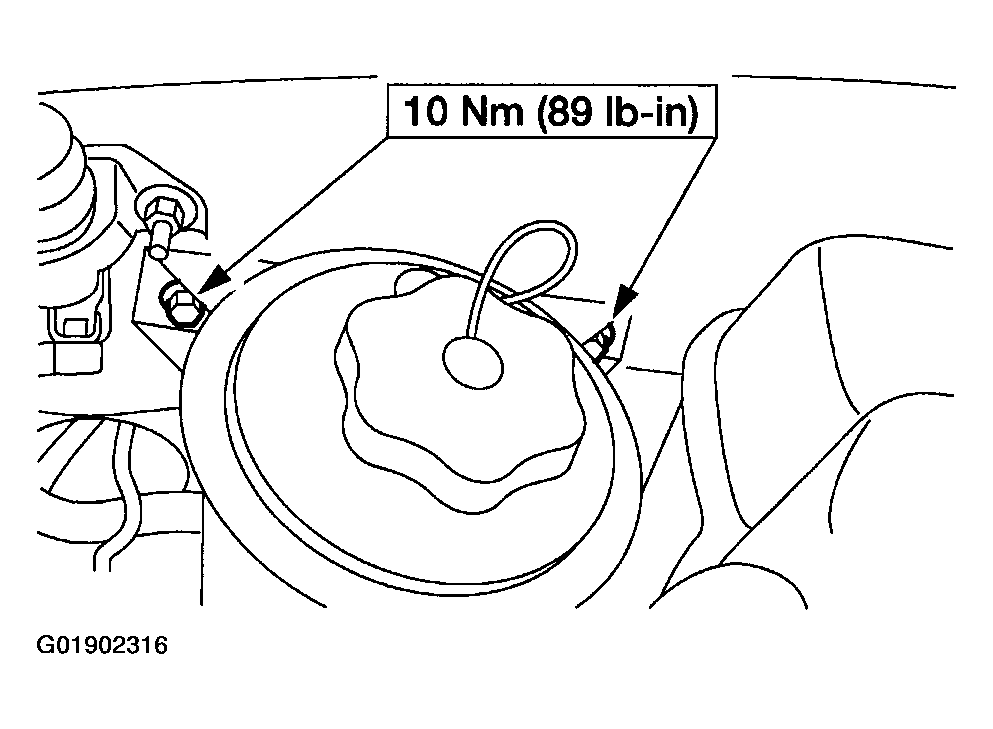

Fig 3: Removing Bolts & Power Steering Pump Reservoir
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the power steering pump reservoir.
To install, reverse the removal procedure.
1. Fill power steering system. Refer to FILL .
