Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

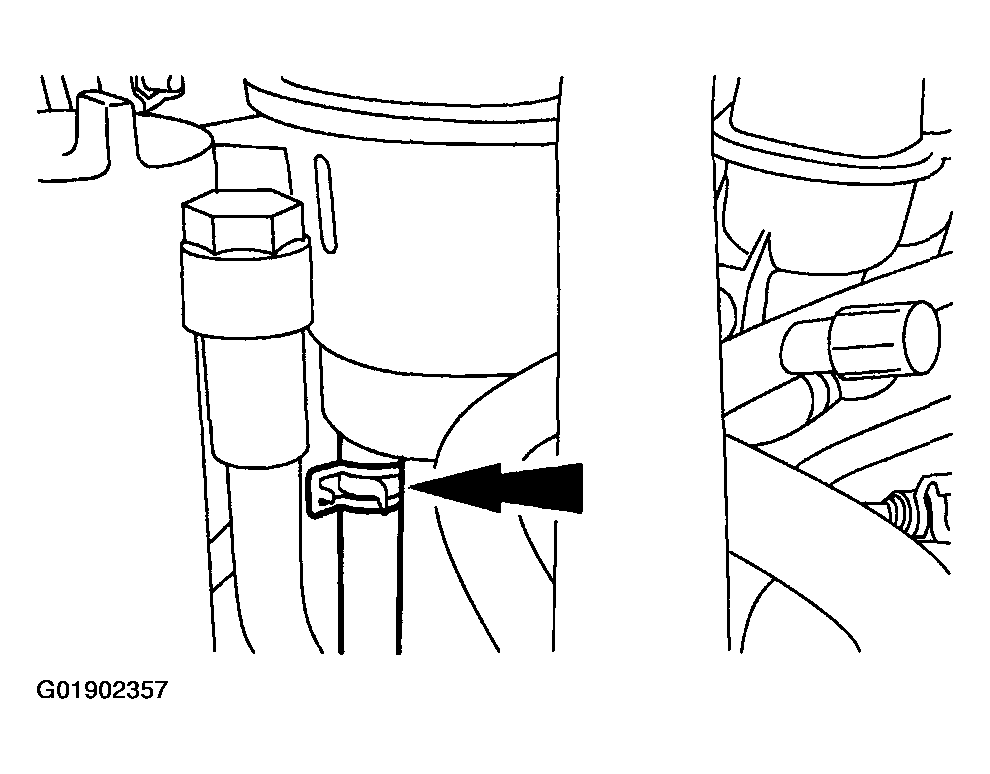

Fig 1: Disconnecting Hose From Power Steering Fluid Reservoir

Courtesy of MAZDA MOTORS CORP.

Disconnect the hose from the power steering fluid reservoir.

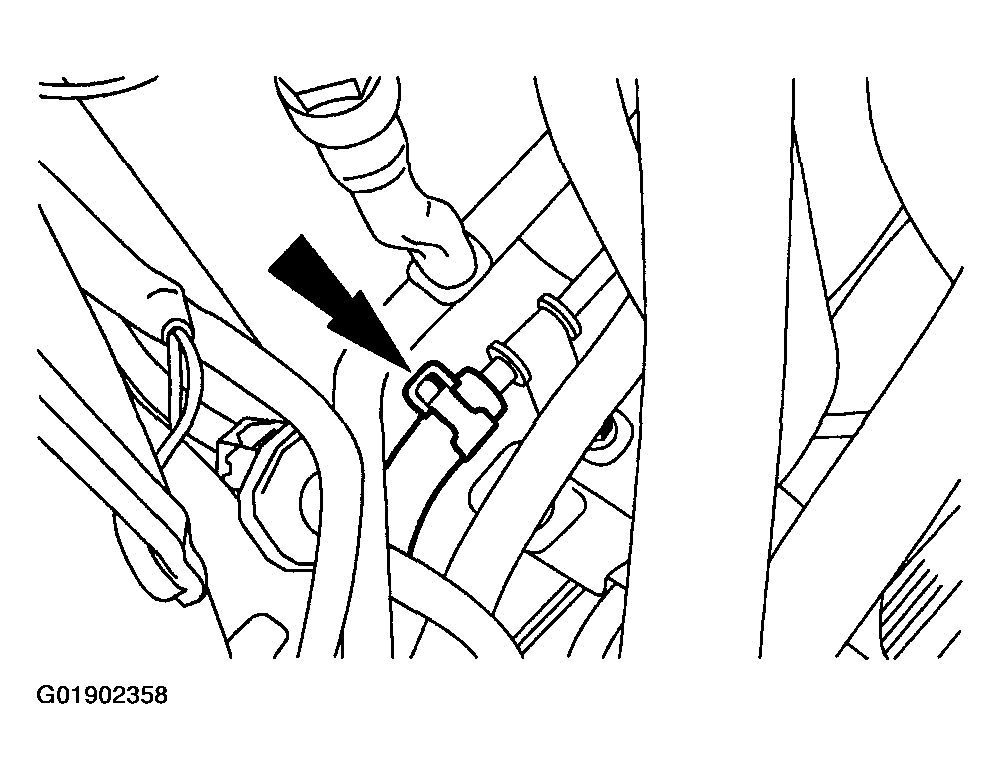

Fig 2: Disconnecting Power Steering Cooler Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering cooler hose.
Remove the front bumper cover. Refer to FRONT BUMPER COVER .

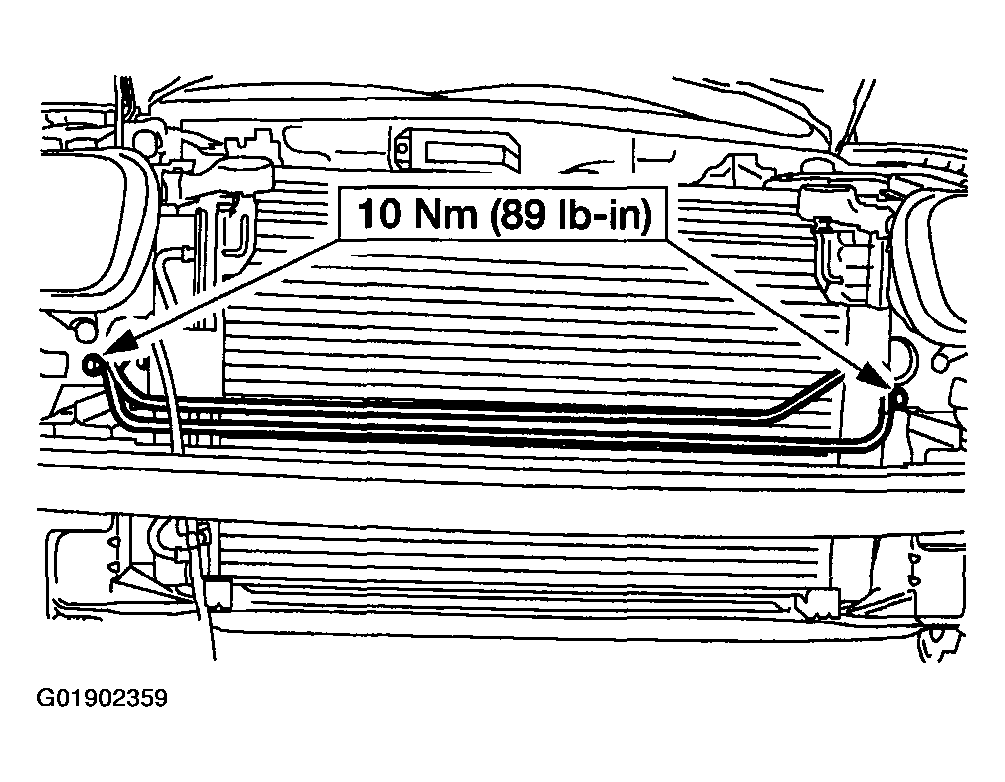

Fig 3: Removing Nuts & Power Steering Fluid Cooler
Courtesy of MAZDA MOTORS CORP.
Remove the nuts and the power steering fluid cooler.
To install, reverse the removal procedure.
1. Fill, bleed and leak check the power steering system. Refer to FILL .
