Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Turn the ignition key to the ON position.

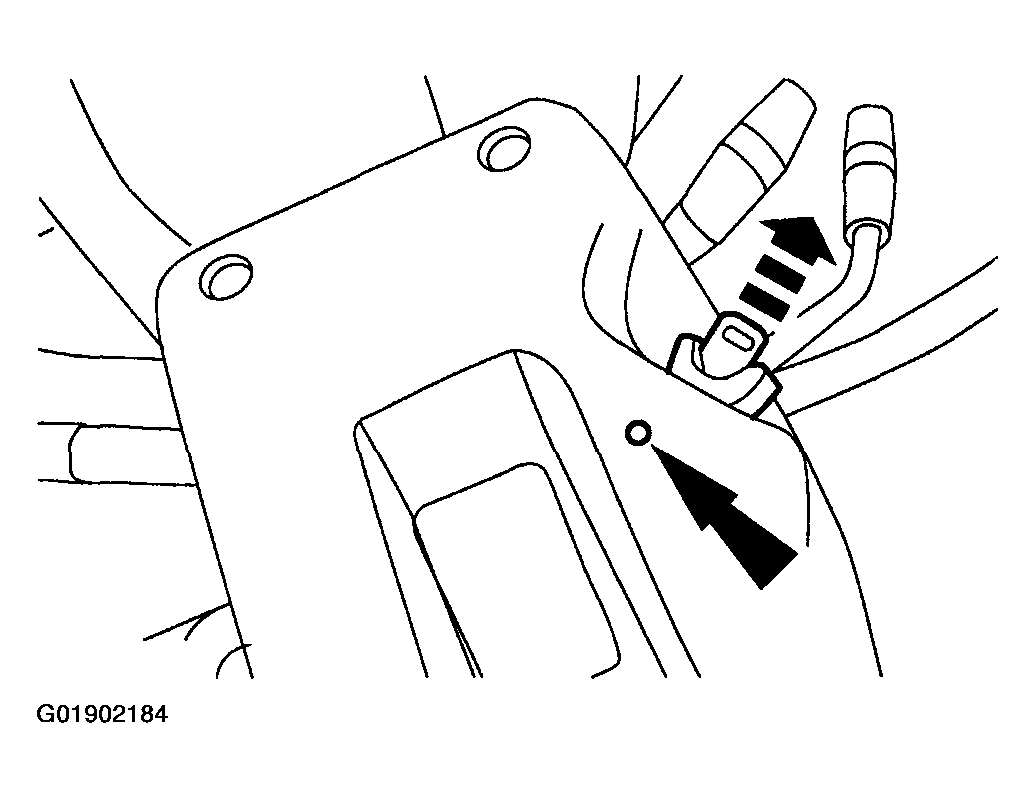

    Fig 1: Depressing Ignition Lock Cylinder Using Tool
    G01902184Courtesy of MAZDA MOTORS CORP.
  3. Using a small tool, depress the ignition lock cylinder release button and pull the ignition lock cylinder out.
  4. To install, reverse the removal procedure.
