Camber And Caster Adjustment

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. .

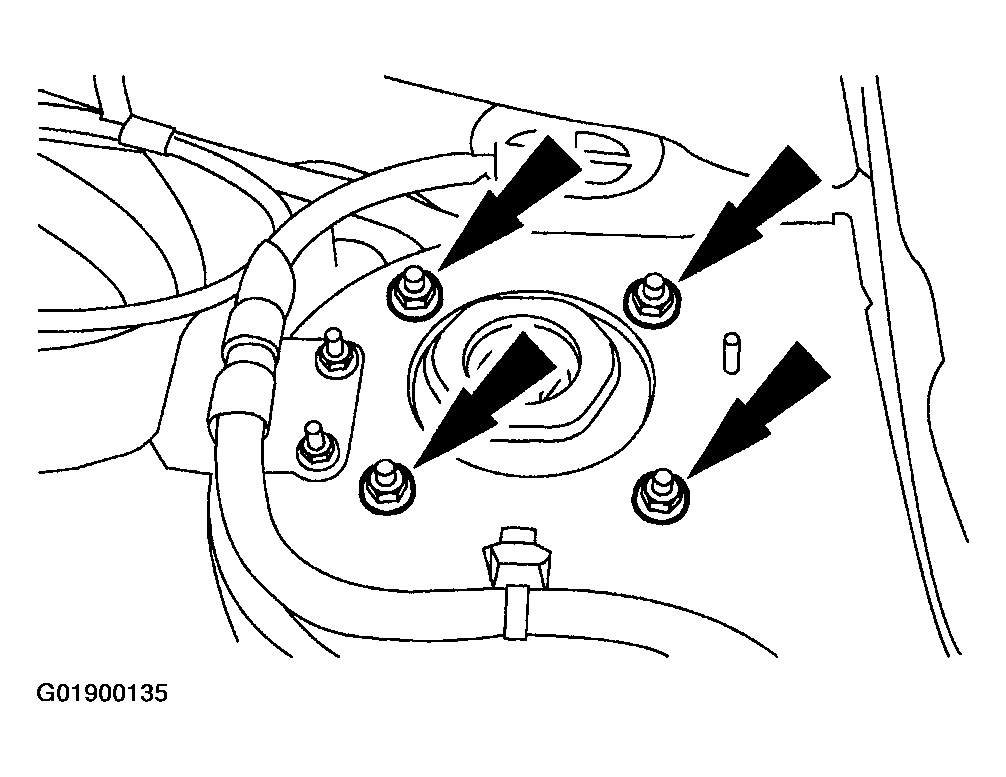

Fig 1: Removing Front Shock Absorber Upper Mounting Bracket Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the front shock absorber upper mounting bracket nuts.

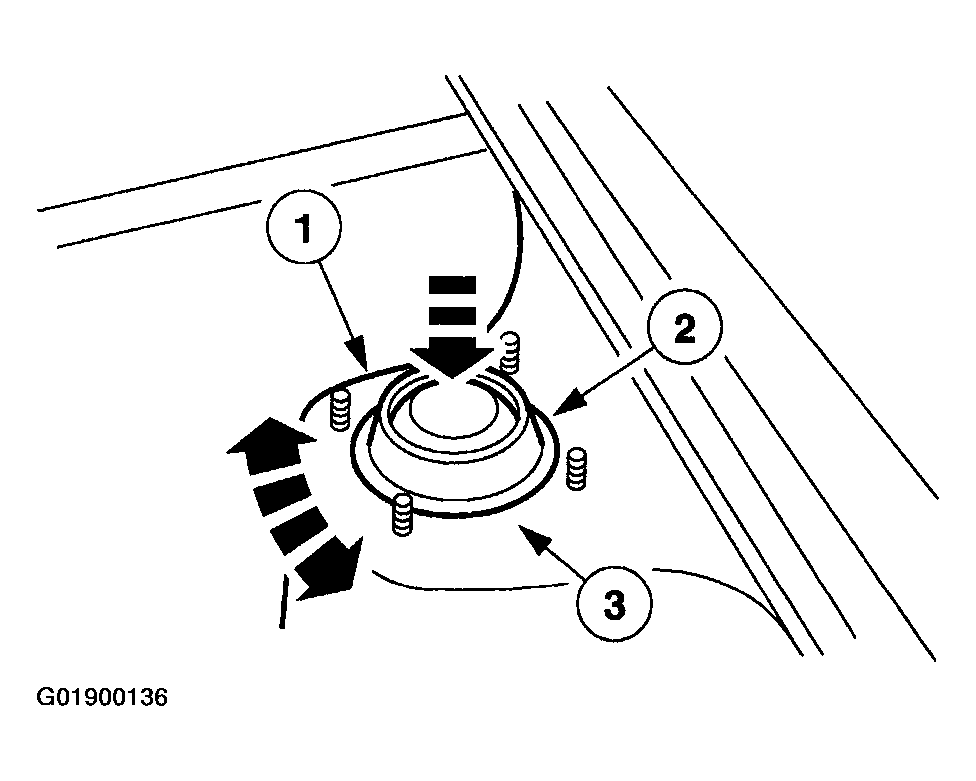

Fig 2: Pushing Front Shock Absorber Upper Mounting Bracket Downward
Courtesy of MAZDA MOTORS CORP.
Push the front shock absorber upper mounting bracket downward and turn it to the desired position to set camber and caster. Both camber and caster for front suspension are adjustable within a maximum of 30 degree angle.

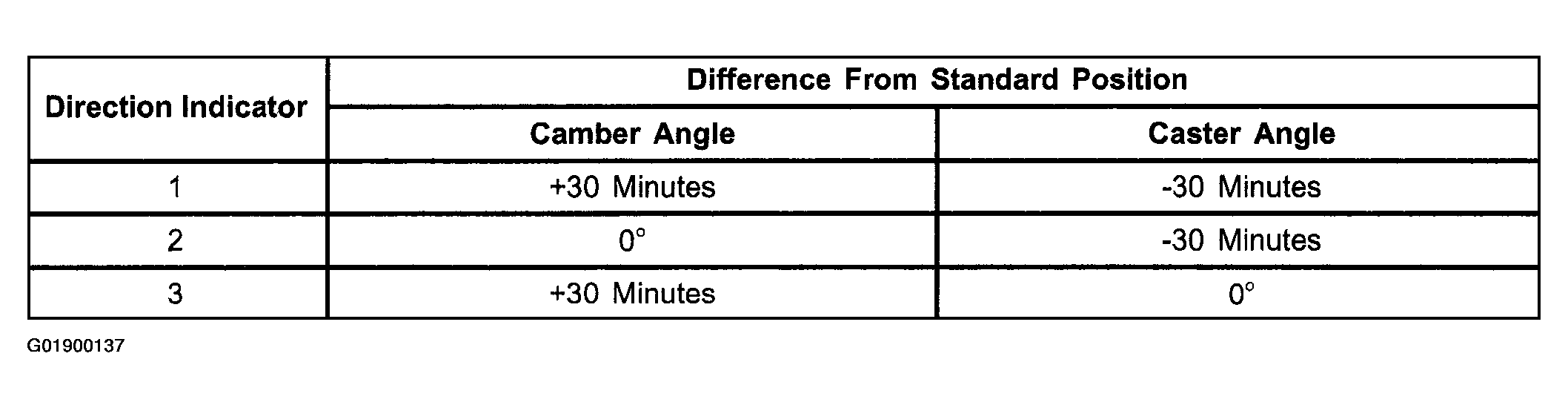

Fig 3: Camber And Caster Degree Angle Chart
Courtesy of MAZDA MOTORS CORP.

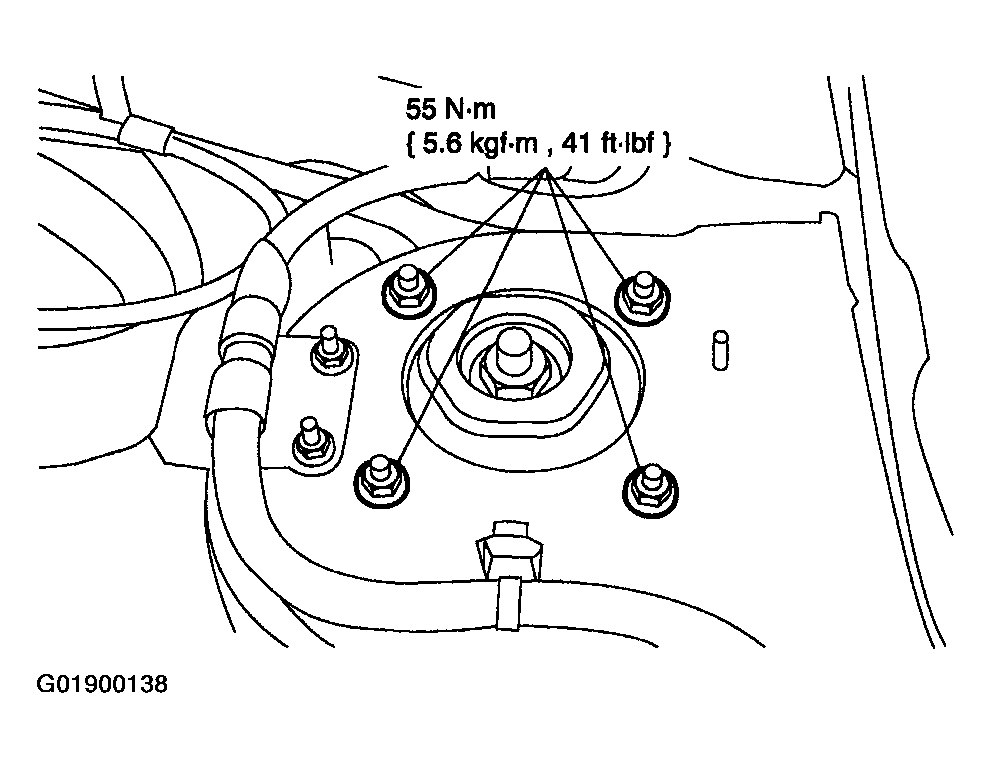

Fig 4: Identifying Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the front shock absorber upper mounting bracket nuts.
