Rear Door Quarter Glass Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim.
Remove the screw and bolt, then remove the rear door glass guide.
Remove the rear door quarter glass and the molding as a signal unit.
Remove the rear door quarter glass molding from the glass.
Install in the reverse order of removal.

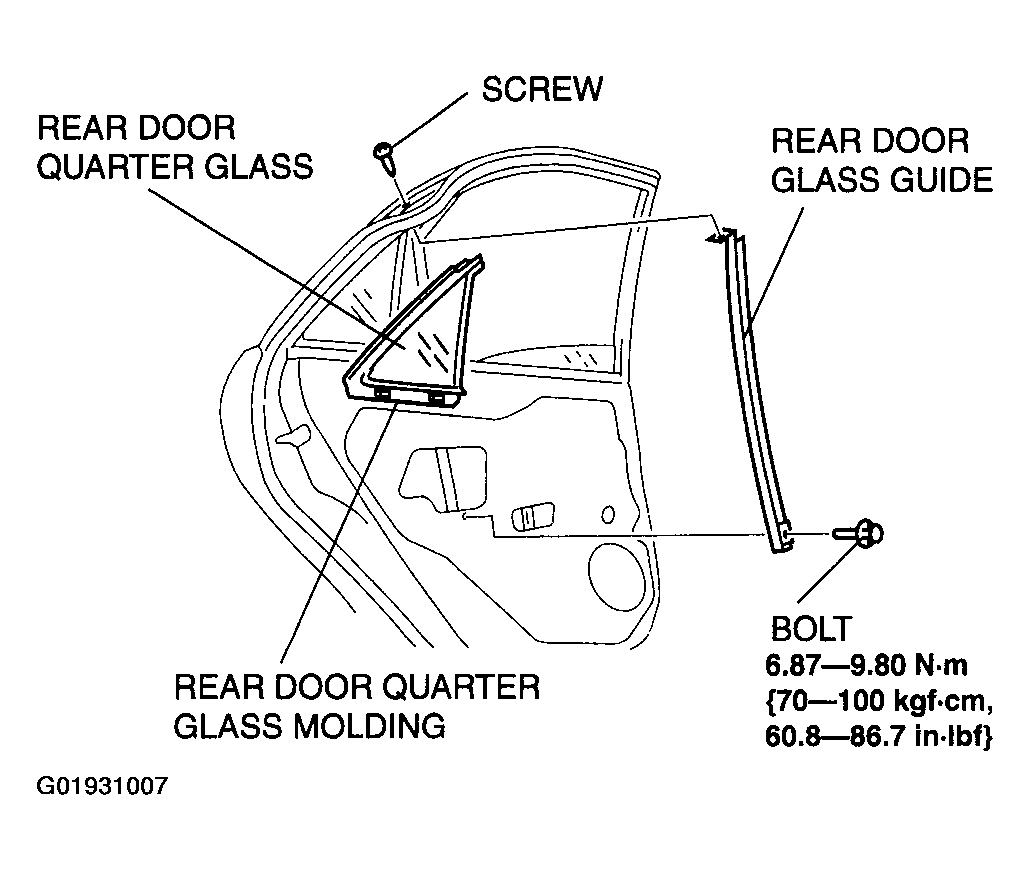

Fig 1: Removing Rear Door Glass Guide Screw And Bolt
Courtesy of MAZDA MOTORS CORP.
