DTC 31: Key Reminder On/Off Signal: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

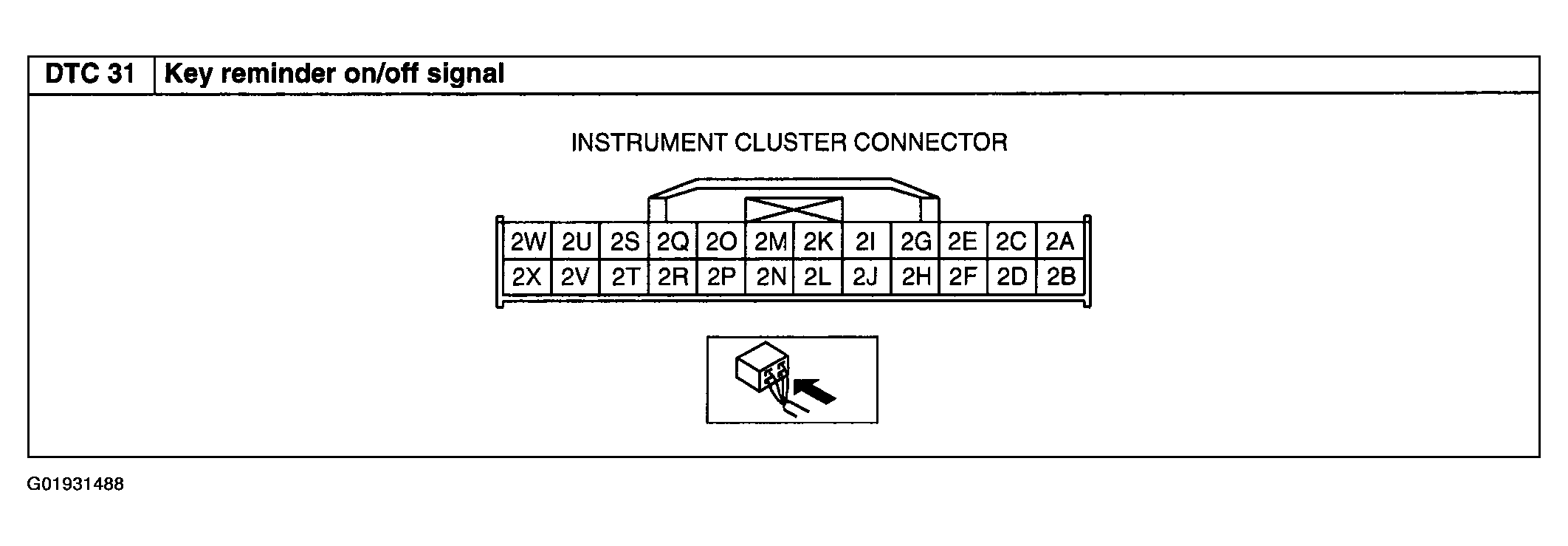

Fig 1: Identifying Instrument Cluster Connector (Key Reminder On/Off Signal)
G01931488Courtesy of MAZDA MOTORS CORP.
