Windshield Wiper Motor Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the windshield wiper motor connector.
Connect battery positive voltage to terminal E or D and ground to terminal B, and inspect operation of the windshield wiper motor as indicated below.

Fig 1: Windshield Wiper Motor Terminals & Operation Table
Courtesy of MAZDA MOTORS CORP.

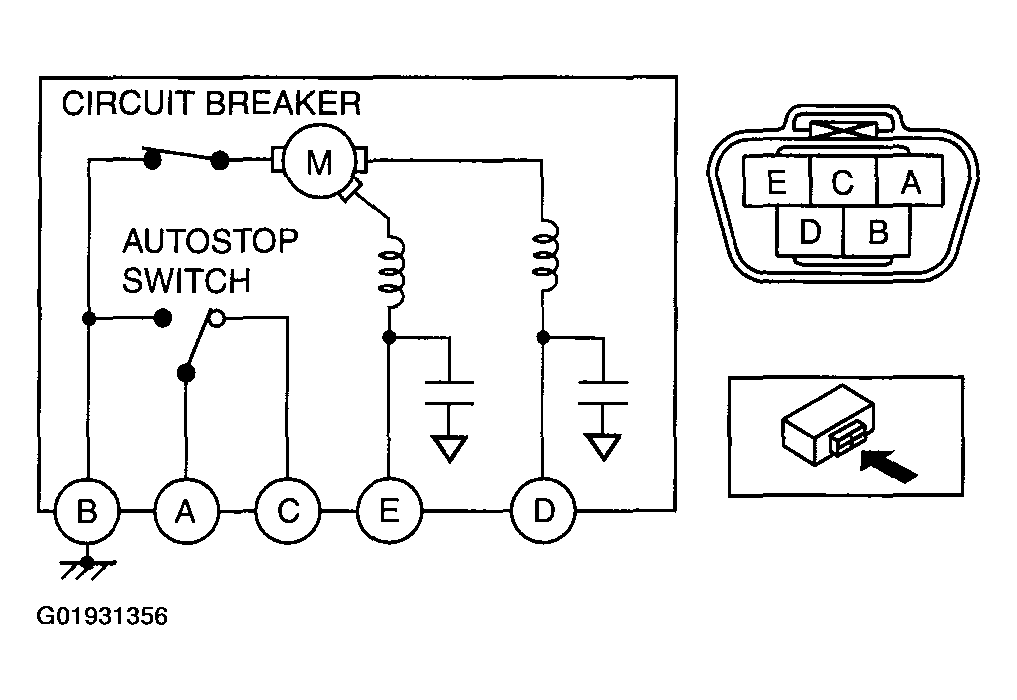

Fig 2: Identifying Windshield Wiper Motor Schematic & Terminals
Courtesy of MAZDA MOTORS CORP.
Disconnect battery positive voltage from terminal E of the motor while the wipers are operating.
Verify that the wipers do not stop in the park position.
Short between the motor terminals A and D and connect battery positive voltage to the motor terminal C.
Verify that the wipers operate at low speed again, then stop in the park position.
- If not as specified, replace the windshield wiper motor.
