Shock Absorbing Pad Removal/Installation
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the headliner.
- Remove the fasteners.

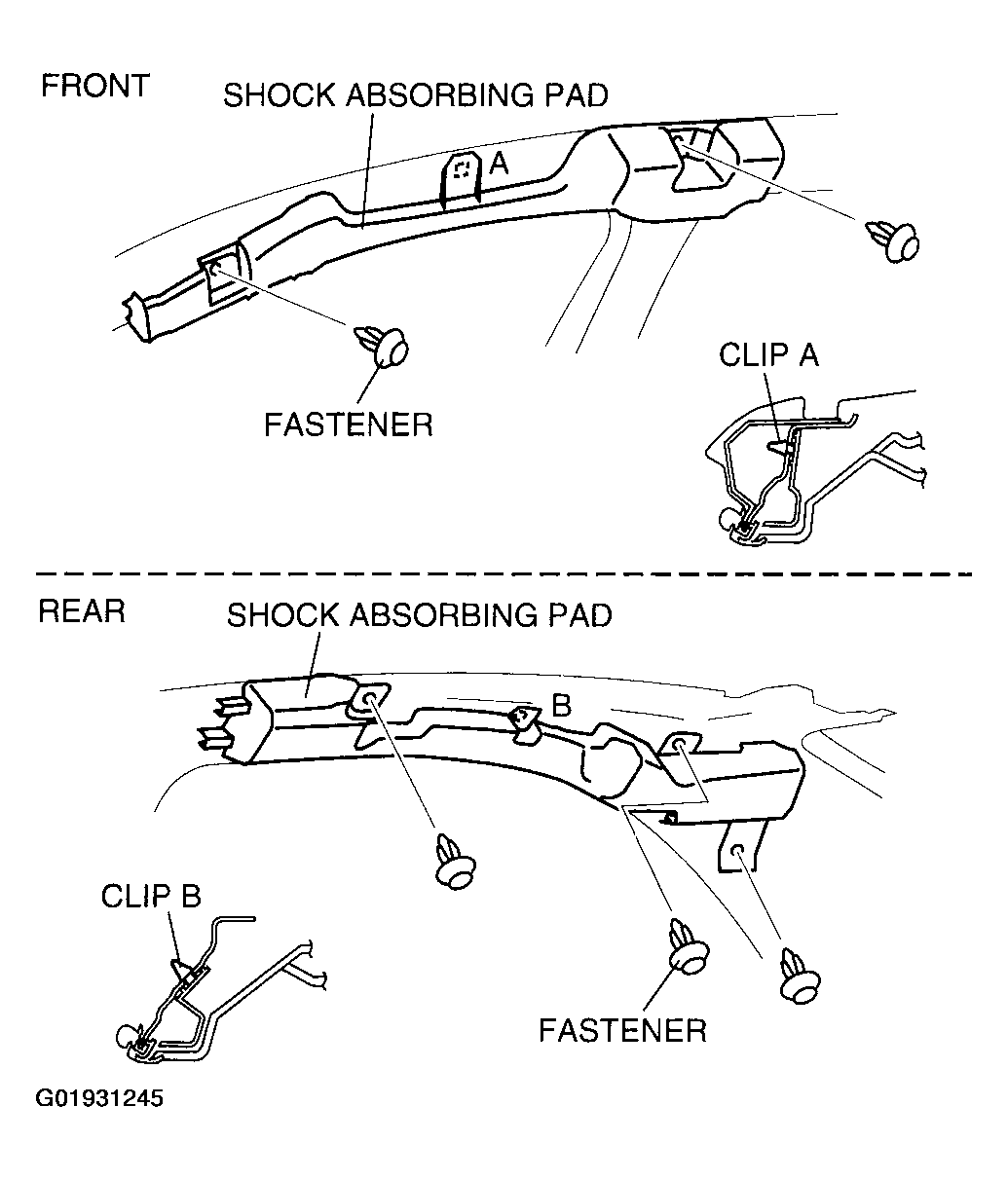

- Pull the shock absorbing pad, then disengage the clip A or B from the body.
Courtesy of MAZDA MOTORS CORP.
- Install in the reverse order of removal.
