Rear Door Trim Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Open the cap using a small screwdriver, then remove the screw.
  3. Remove the inner handle cover.
  4. Remove the cover, then remove screw A.
  5. Disengage clips A from the rear door using a fastener remover.
    Fig 1: Removing Inner Handle Cover
    G01931232Courtesy of MAZDA MOTORS CORP.
  6. Pull the rear door trim upward, then disengage tabs B from the rear door.
  7. Disconnect the power window subswitch connector.
  8. Remove the rear door trim.

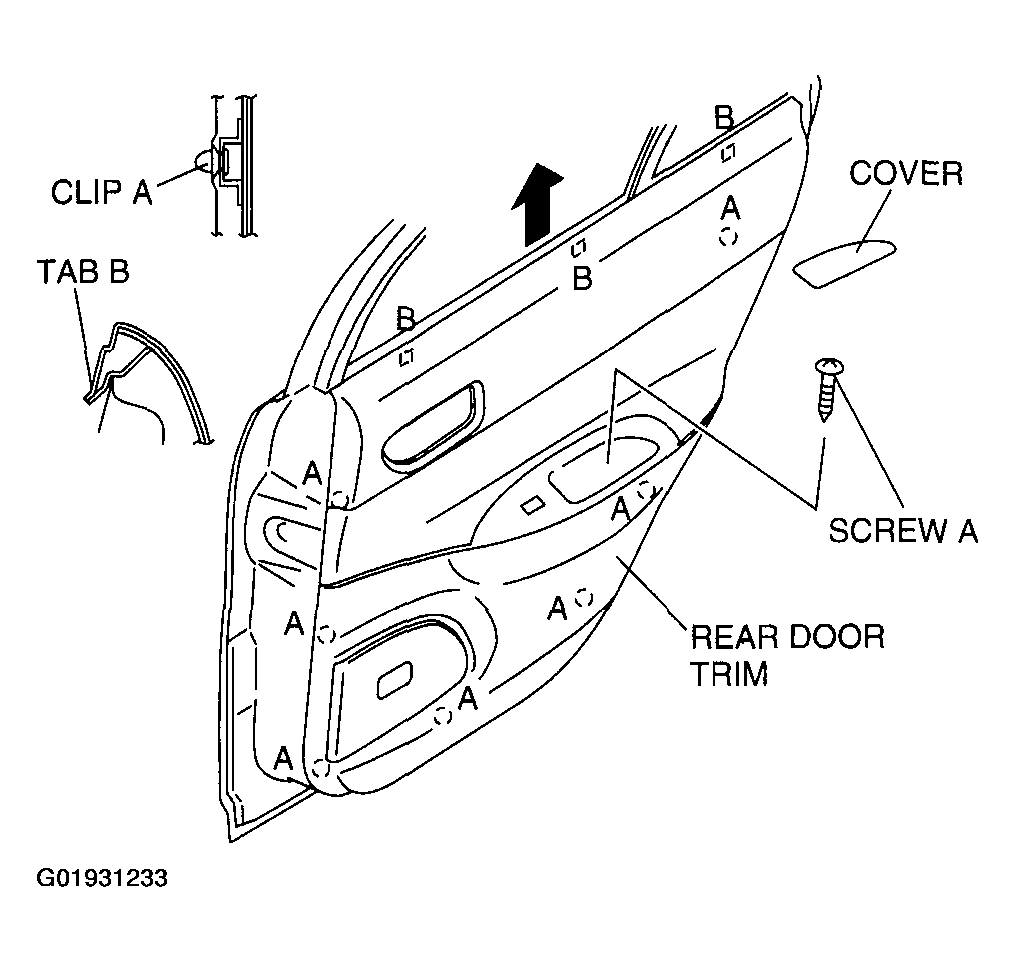

    Fig 2: Removing Rear Door Trim
    G01931233Courtesy of MAZDA MOTORS CORP.
  9. Remove the switch panel from the rear door trim.
  10. Install in the reverse order of removal.
