Rear BELTLINE Molding Removal

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When removing the rear beltline molding, the clip may be damaged. If the clip is damaged, replace the rear beltline molding with a new one.
  1. Pull section A upward and remove the clip.
  2. Rotate section B of the rear beltline molding in direction (2), along the direction (1) shown in Fig 1 and remove it from the body.
  3. Pull section C upward and remove the clip. Then remove the rear beltline molding.

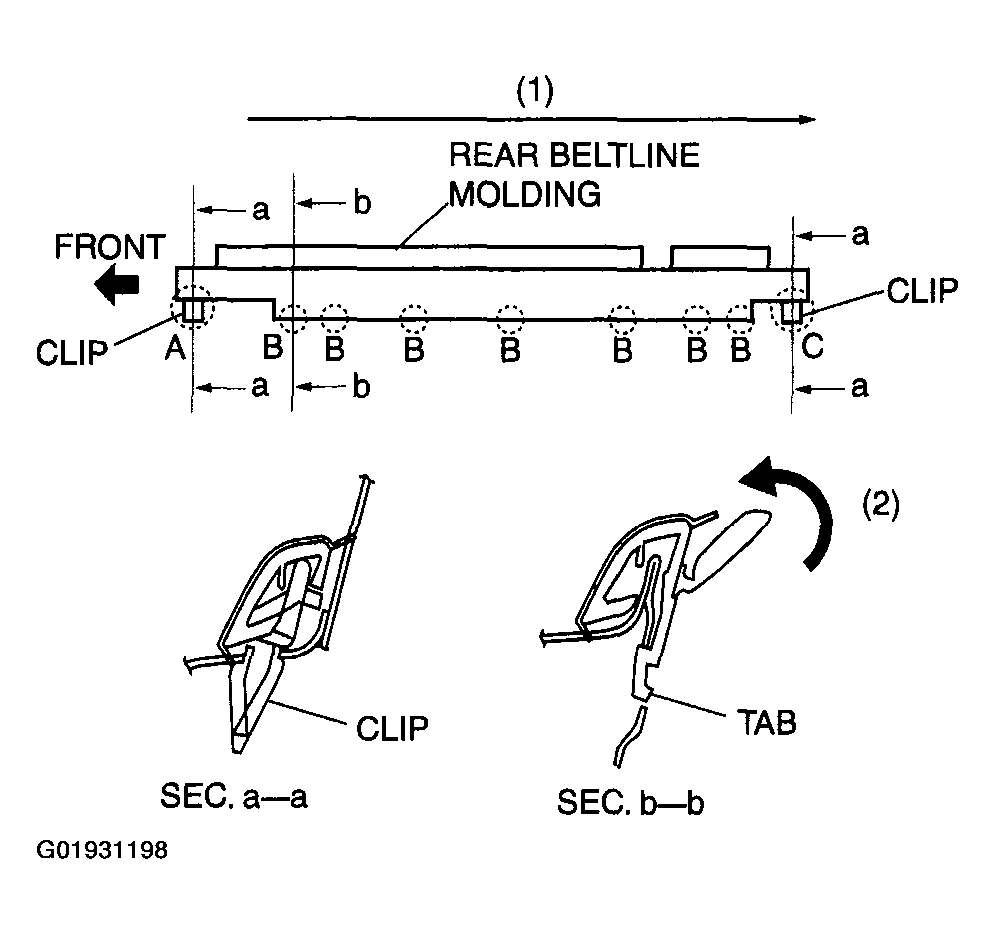

    Fig 1: Removing Rear Beltline Molding
    G01931198Courtesy of MAZDA MOTORS CORP.
