Rear Seat Disassembly/Assembly

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble in the order indicated.
  2. Assemble in the reverse order of disassembly.

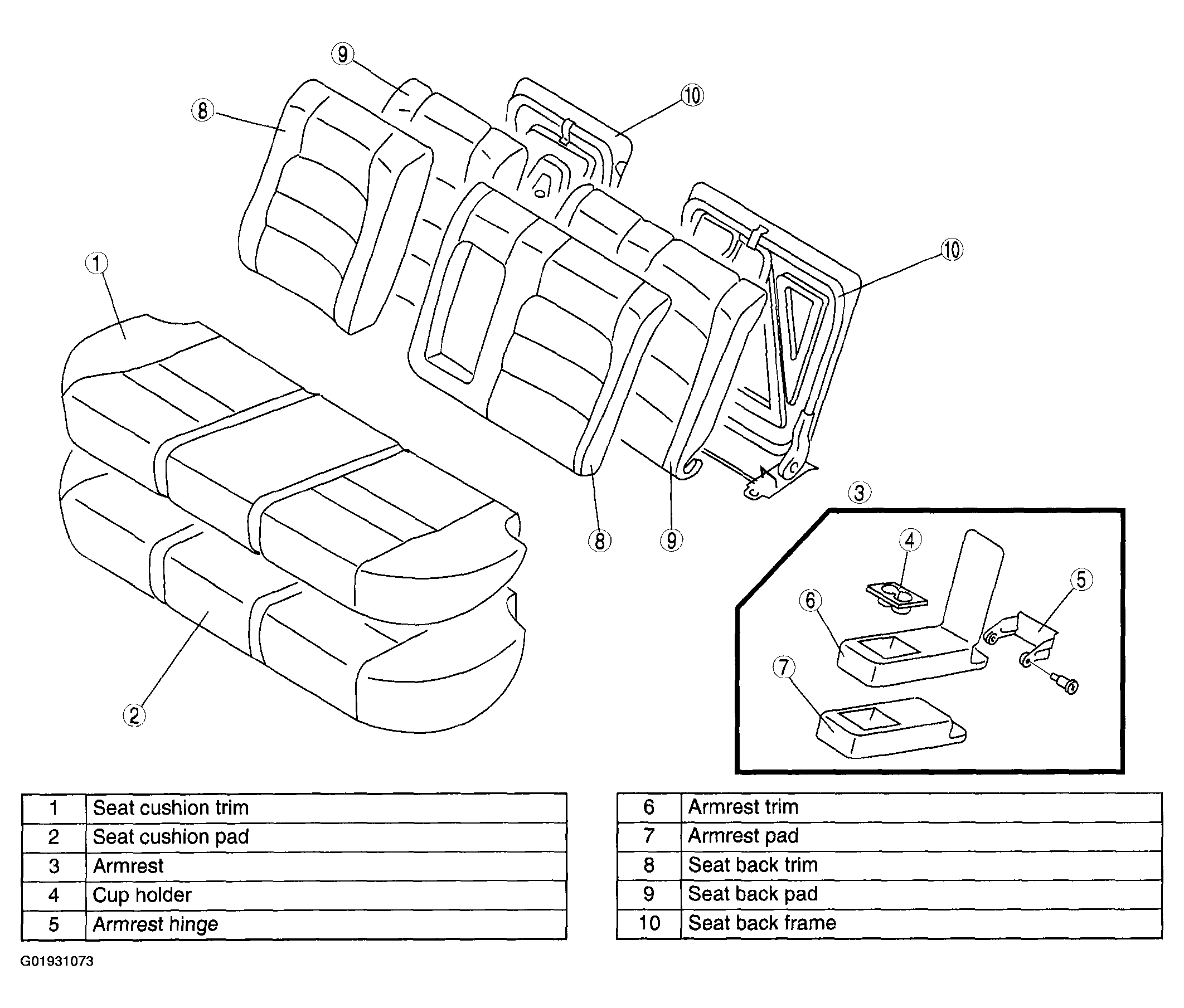

    Fig 1: Disassembling Rear Seat
    G01931073Courtesy of MAZDA MOTORS CORP.
