Trunk Lid Adjustment
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Measure the gap and height difference between the trunk lid and the body.
- If not as specified, loosen the trunk lid hinge installation bolts or the trunk lid lock striker installation screws, and reposition the trunk lid.

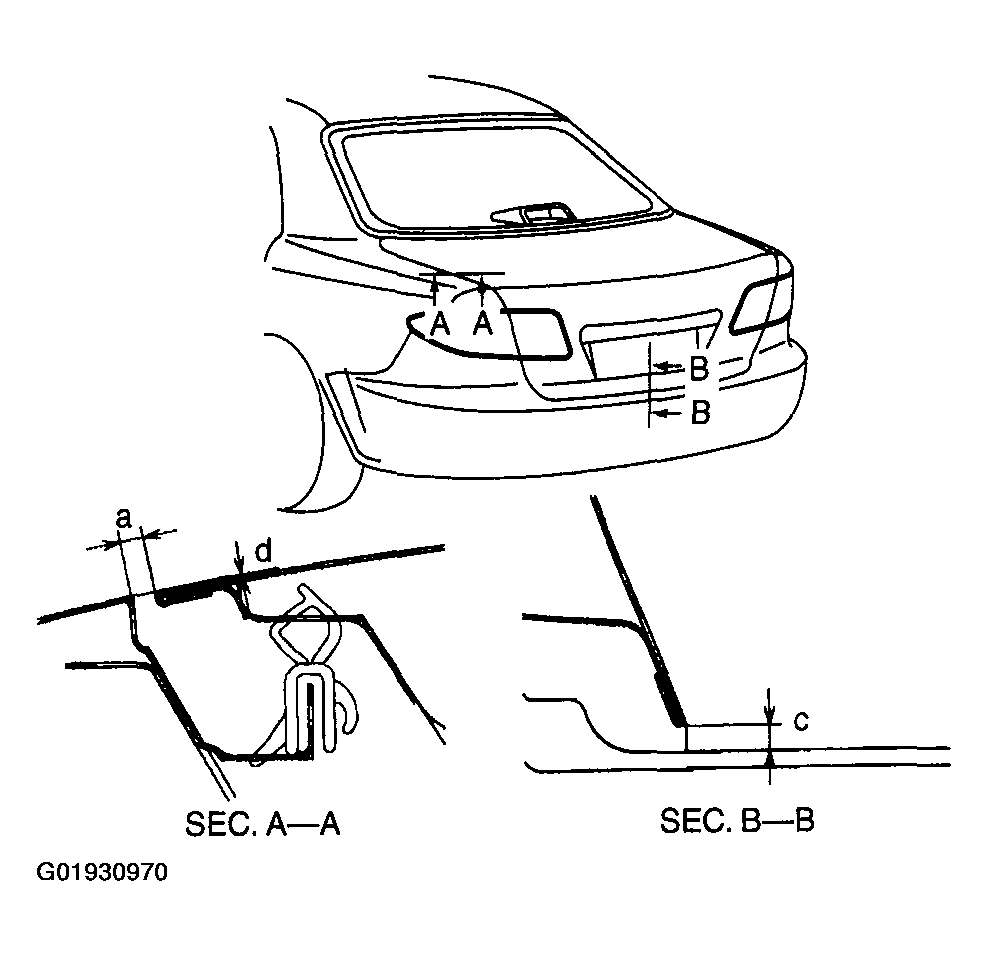

Clearance
- a: 2.5-4.5 mm {0.10-0.18 in}
- b: -1.0-1.0 mm {-0.04-0.04 in}
- c: 4.0-8.0 mm {0.16-0.31 in}
- Tighten the bolts or screws.
