Front Bumper Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull the front bumper ends (wheel arch) outward to disengage from the bumper slider.
    CAUTION:
    • If only one side of the front bumper is disengaged from the bumper slider and the bumper falls, it could be damaged. When disengaging the front bumper from the slider, secure the bumper so that it does not fall.

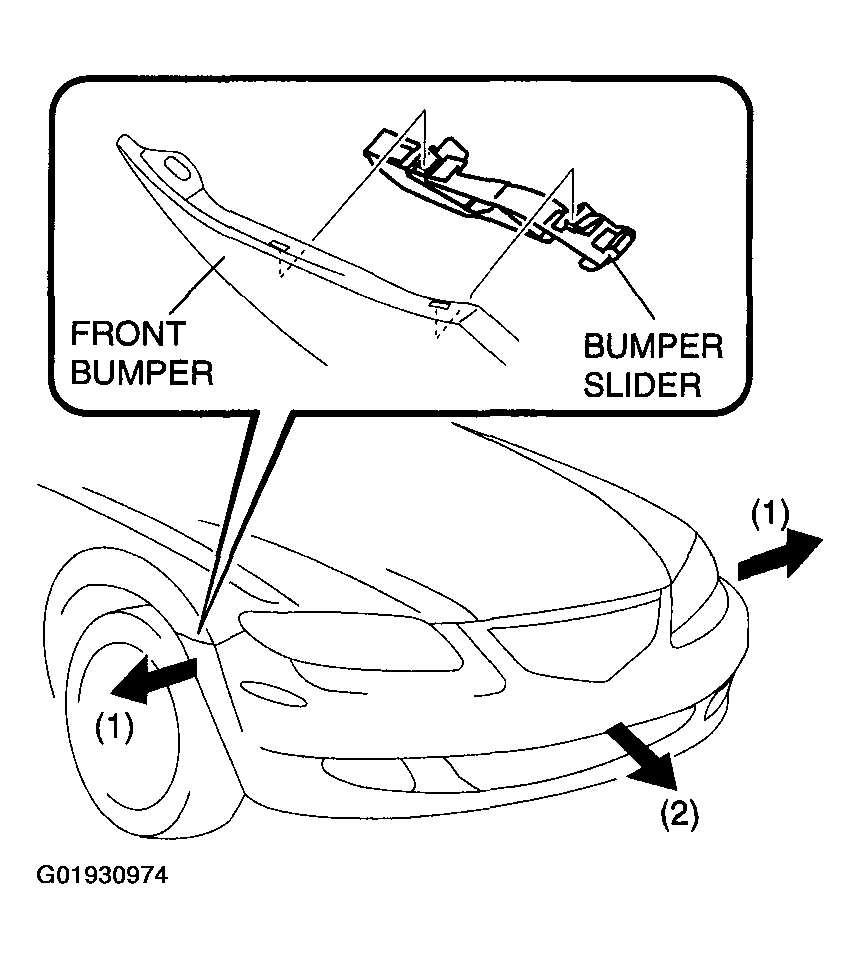

      • Fig 1: Disengaging Front Bumper From Bumper Slider
      G01930974Courtesy of MAZDA MOTORS CORP.
  2. Remove the front bumper from the body.
