Cowl Panel Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grille.
  3. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
  4. Remove in the order indicated.

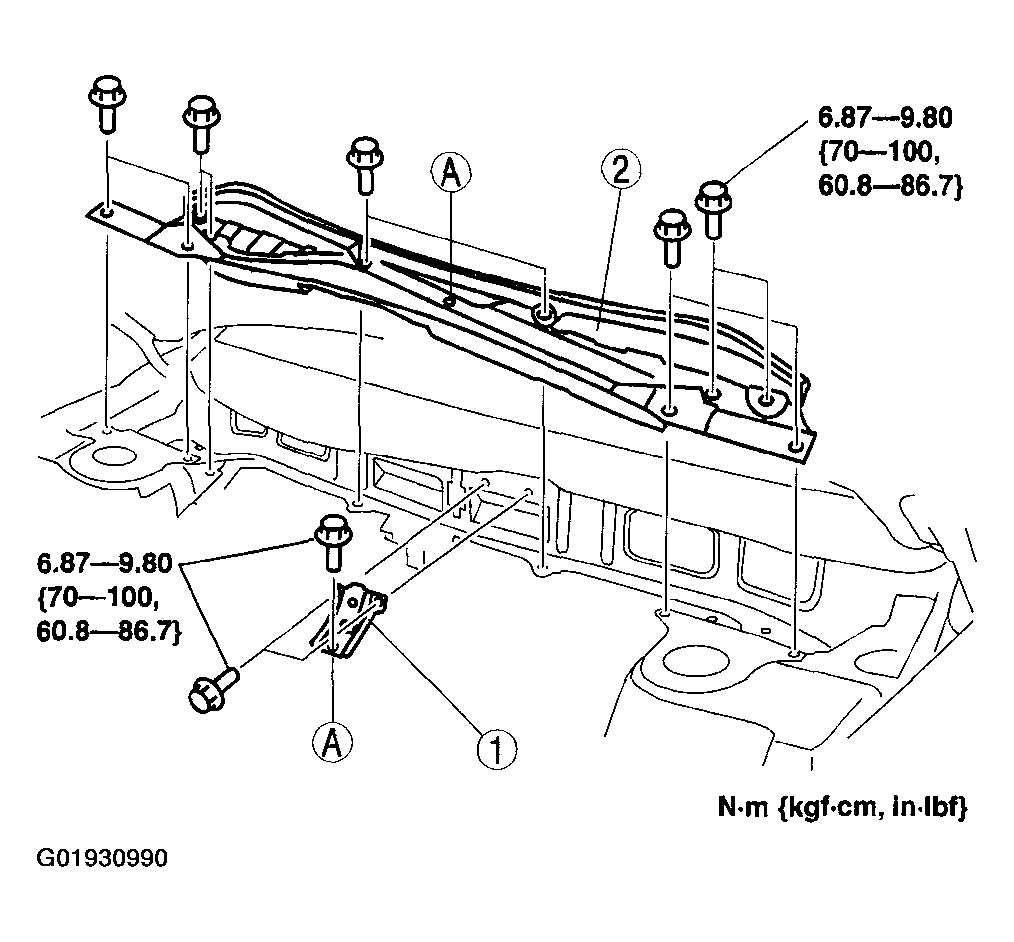

    Fig 1: Identifying Cowl Panel Components
    G01930990Courtesy of MAZDA MOTORS CORP.
    Fig 2: Cowl Panel Removal Sequence
    G01930989Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
