Magnetic Clutch Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Connect battery positive voltage to terminal A of magnetic clutch and ground to A/C compressor body.

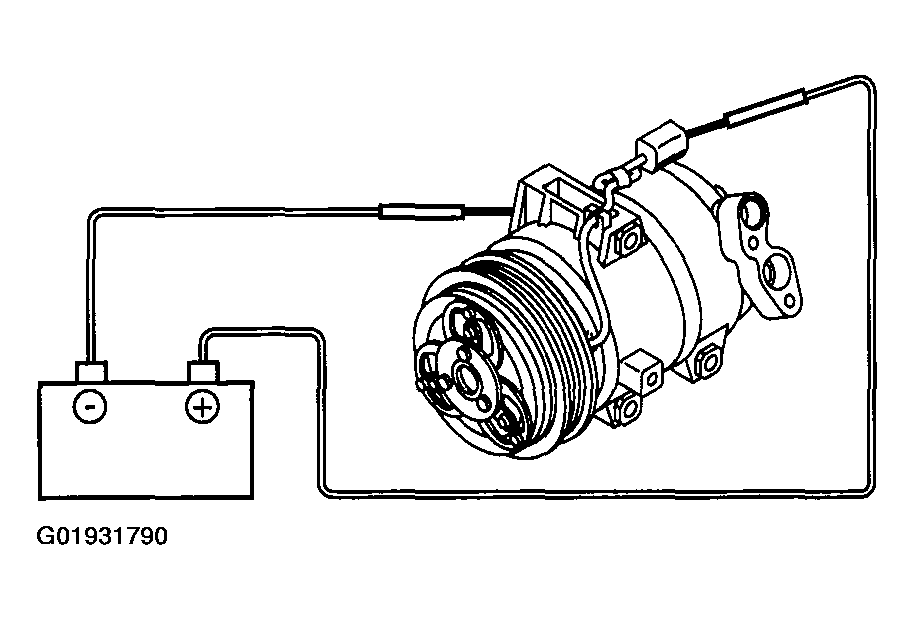

Fig 1: Checking Magnetic Clutch Operation
Courtesy of MAZDA MOTORS CORP.
Verify that the magnetic clutch operates.
- If not as specified, replace the stator.
Fig 2: Magnetic Clutch Schematic & Connector Views
Courtesy of MAZDA MOTORS CORP.
