Except 626 2.0L

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2002 Mazda Protege5, 2002 Mazda Protege, 2002 Mazda Millenia, 2002 Mazda MX-5 Miata, and 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for starter operation with ignition switch in START position and shift lever in "P" and "N" position only. Ensure back-up lights illuminate with ignition in ON position and selector lever in "R".
  2. To test switch, disconnect transmission range switch connector. Check for continuity between specified terminals at transmission range switch. See Fig 1 , Fig 2 , Fig 3 , Fig 4 or Fig 5 . If continuity is not as specified, replace switch.

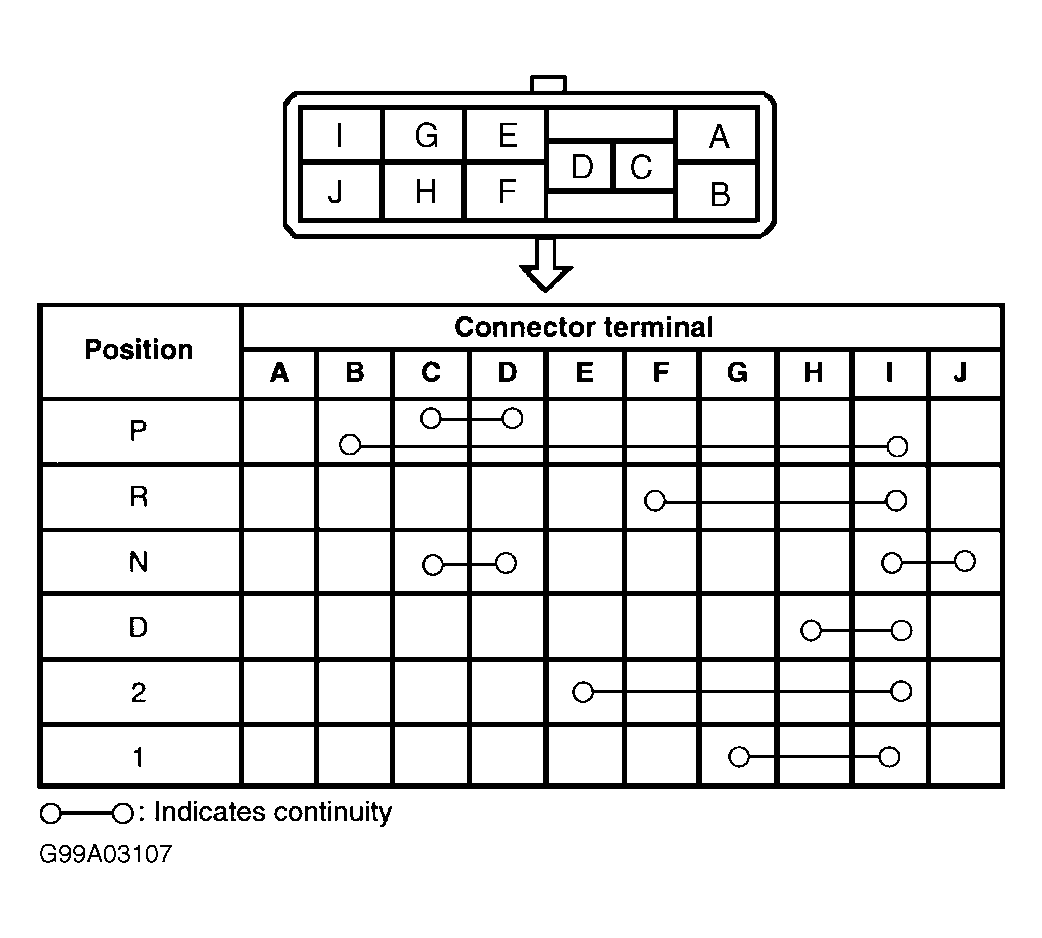

Fig 1: Checking Transmission Range Switch (Miata)
G99A03107Courtesy of MAZDA MOTORS CORP.

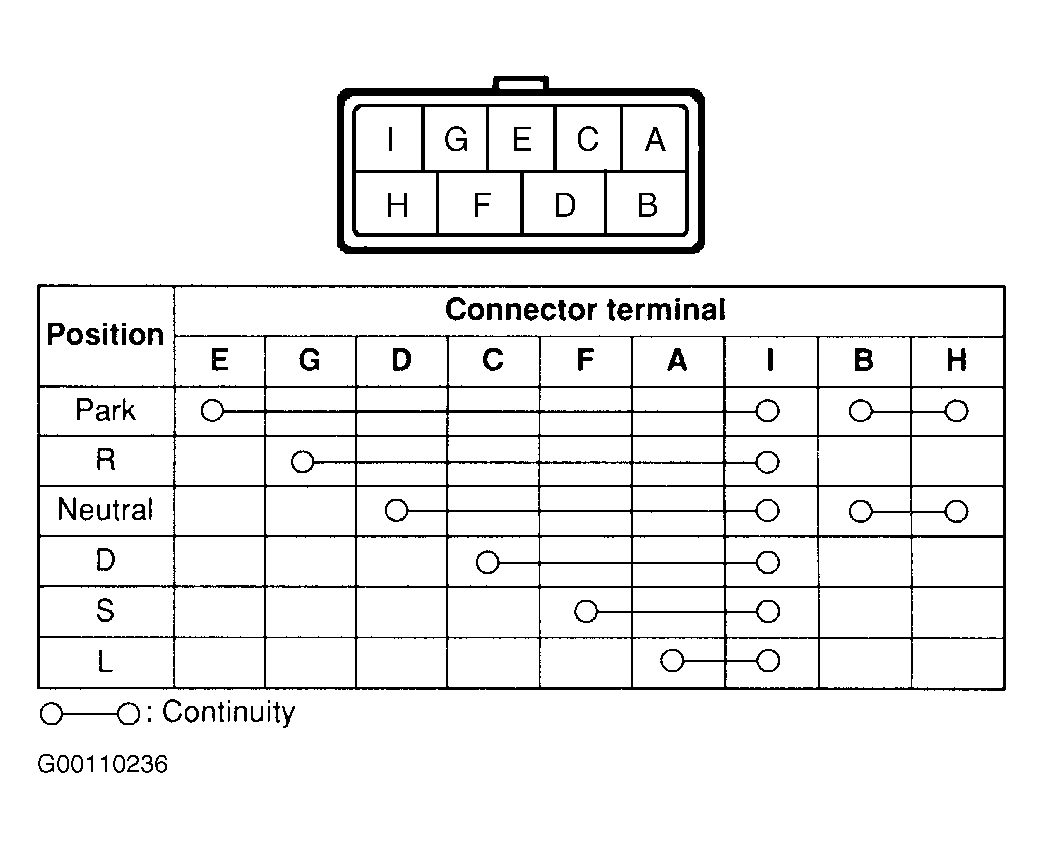

Fig 2: Checking Transmission Range Switch (Millenia 2.3L)
G00110236Courtesy of MAZDA MOTORS CORP.

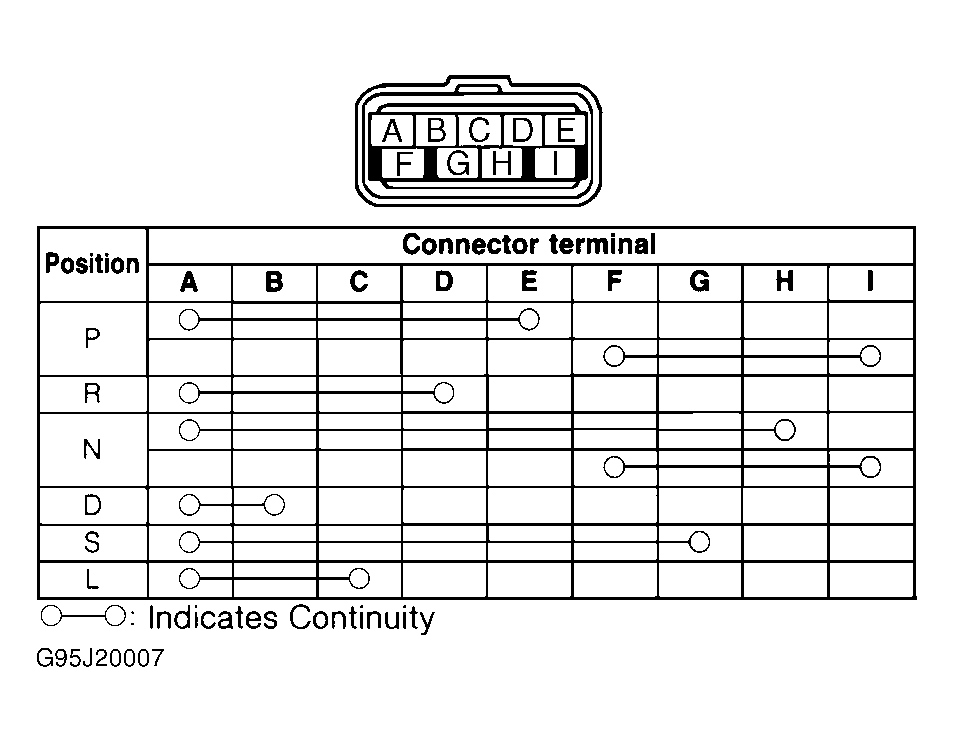

Fig 3: Checking Transmission Range Switch (Millenia 2.5L & 626 2.5L)
G95J20007Courtesy of MAZDA MOTORS CORP.

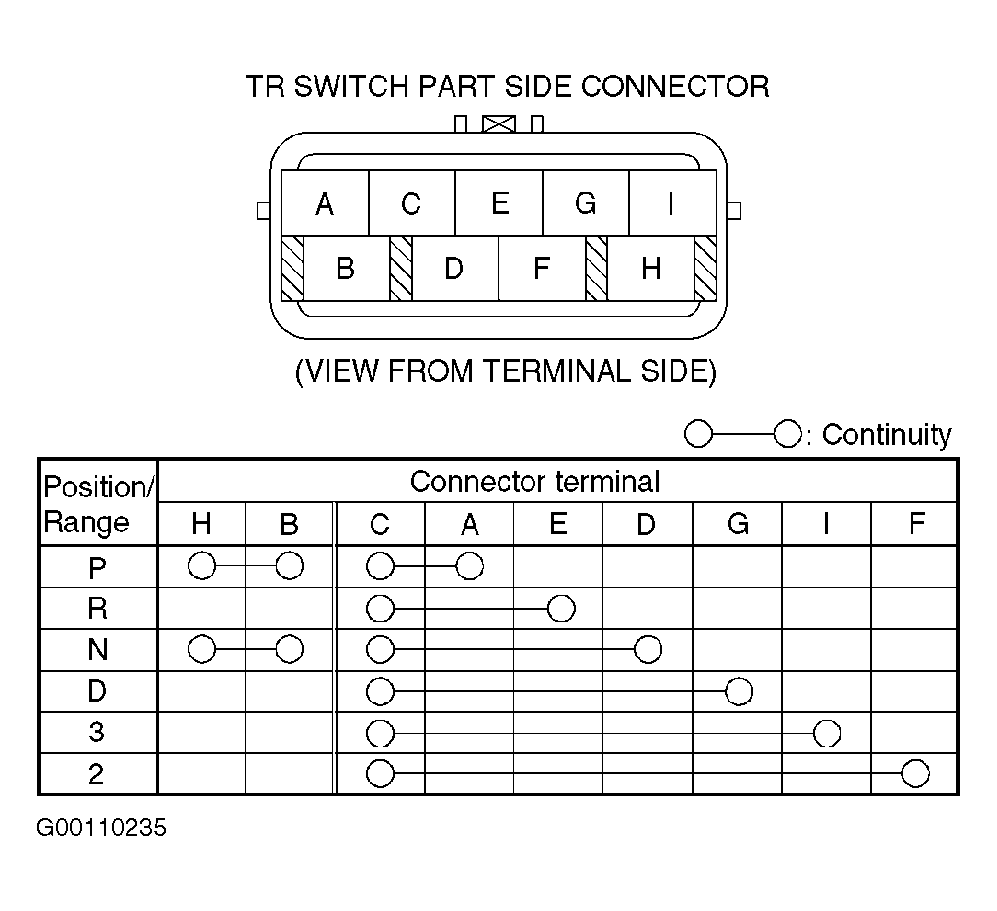

Fig 4: Checking Transmission Range Switch (MPV)
G00110235Courtesy of MAZDA MOTORS CORP.

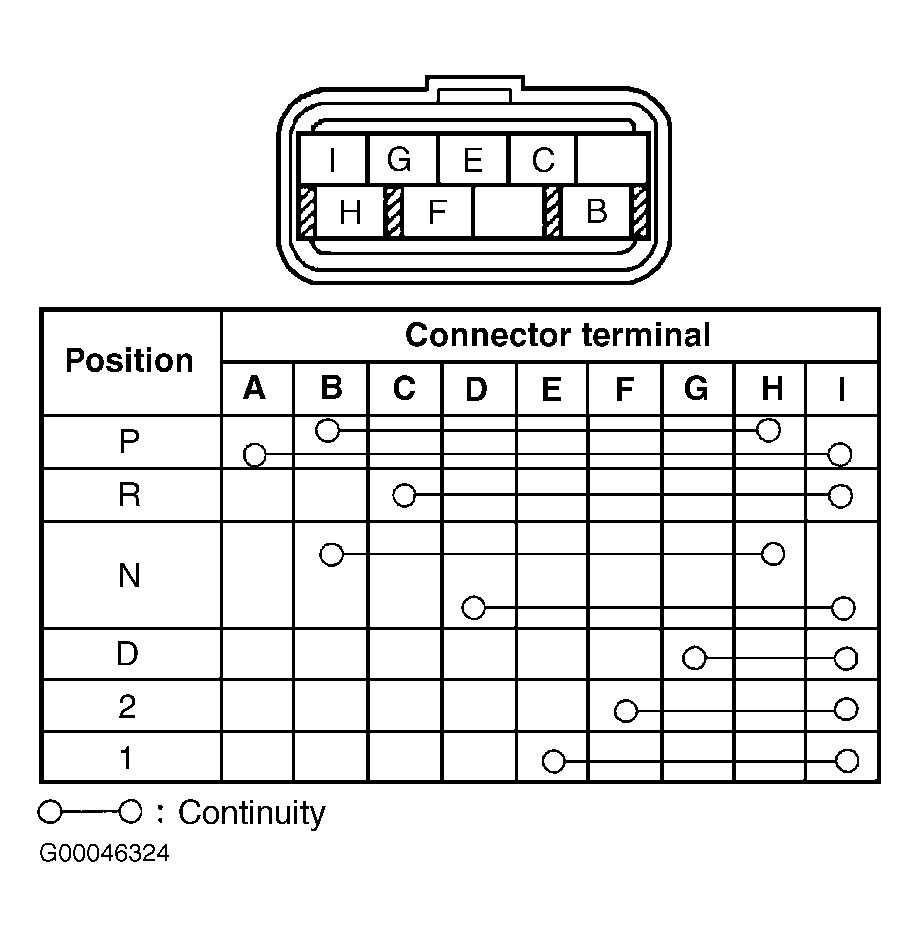

Fig 5: Checking Transmission Range Switch (Protege & Protege5)
G00046324Courtesy of MAZDA MOTORS CORP.
