Rear Heat Duct Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn over the floor covering. (See FLOOR COVERING REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.

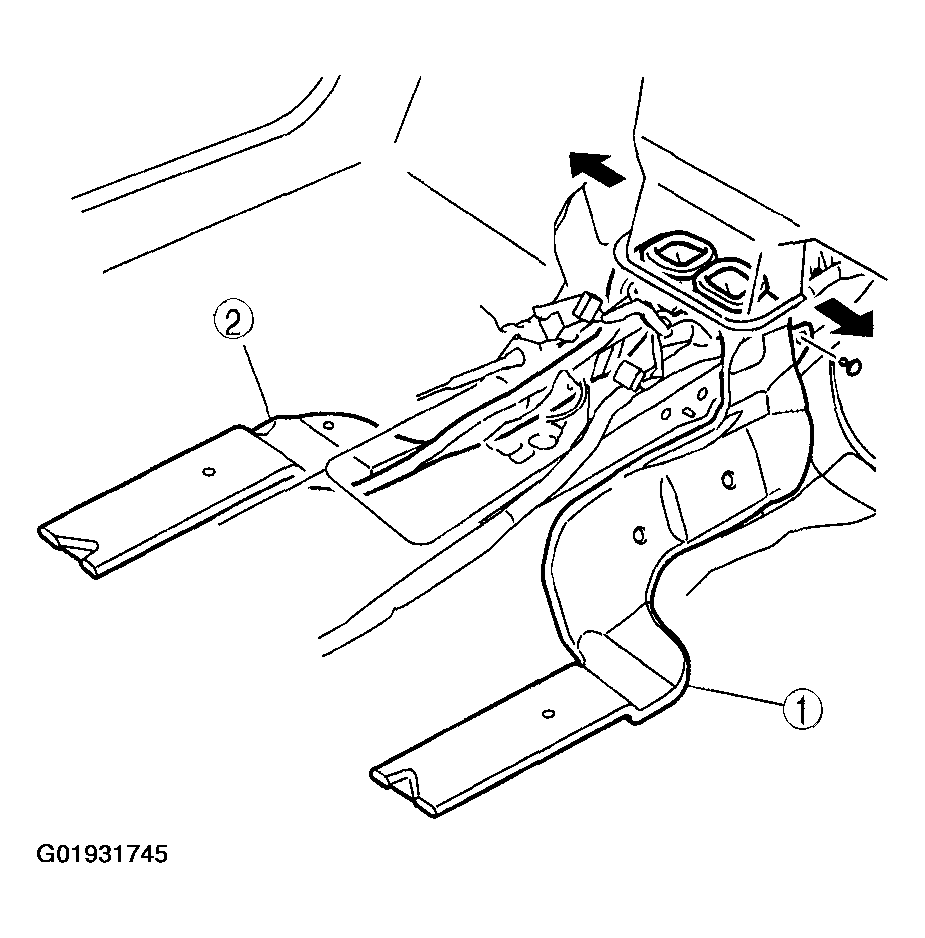

    REAR HEAT DUCT REMOVAL/INSTALLATION

    G01931745
    1 Rear Heat Duct (Right)
    2 Rear Heat Duct (Left)
  3. Install in the reverse order of removal.
