Section 277 (Symptom Troubleshooting [HVAC)): Foreword

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

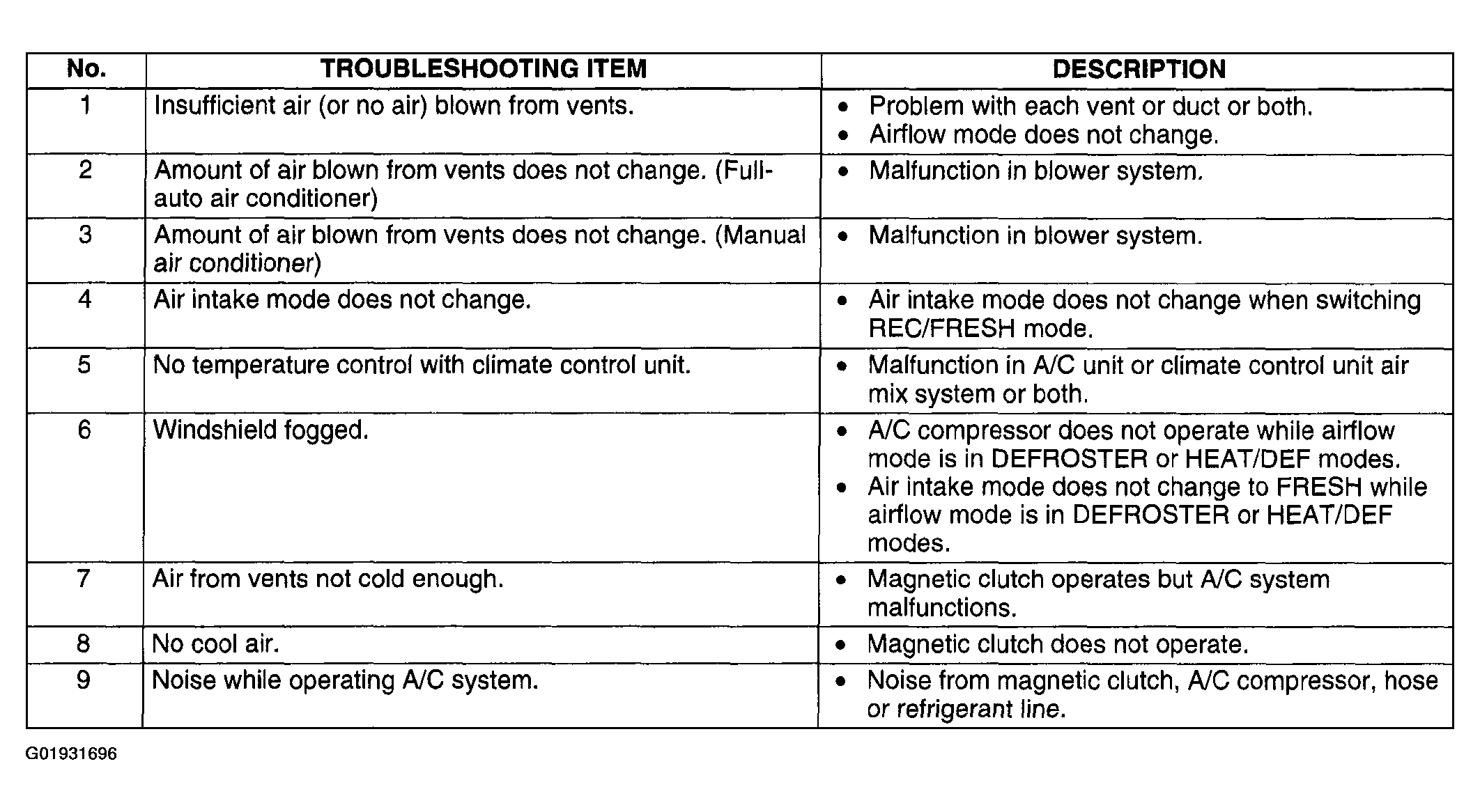

The areas for inspection (steps) are given according to various circuit malfunctions. Use the following chart in Figure to verify the symptoms of the trouble in order to diagnose the appropriate area.
