Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

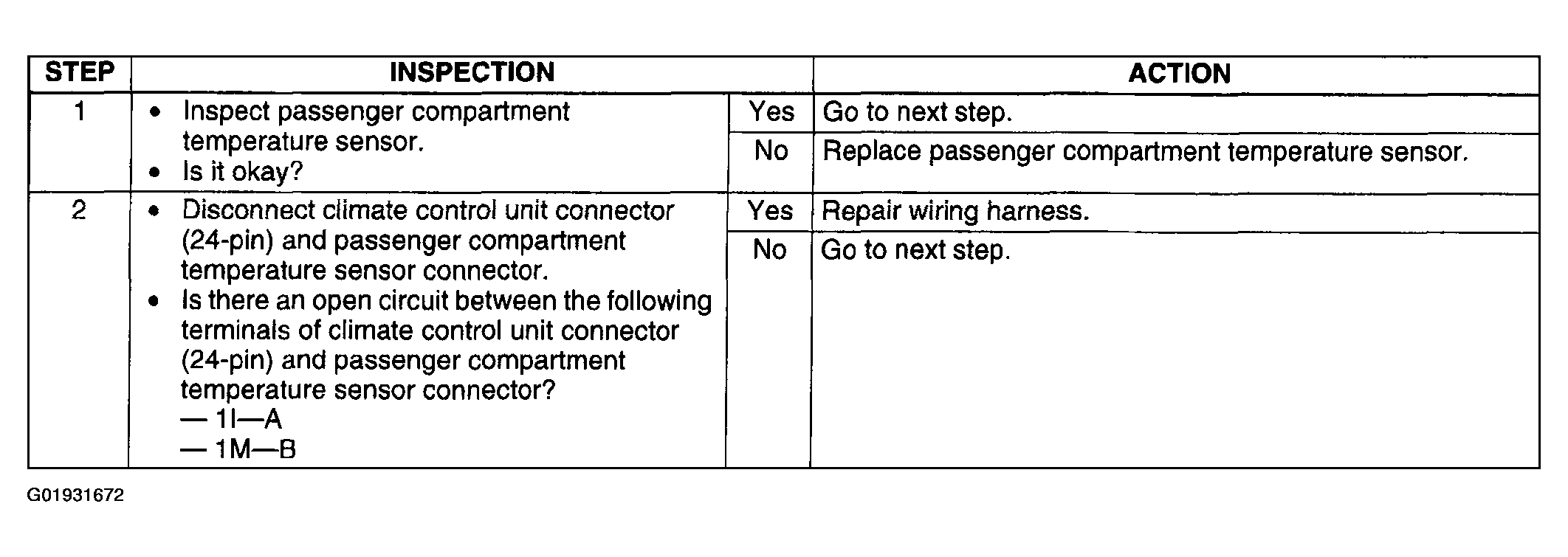

Fig 1: DTC 07: Passenger Compartment Temperature Sensors System Inspection - Diagnostic Procedure (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

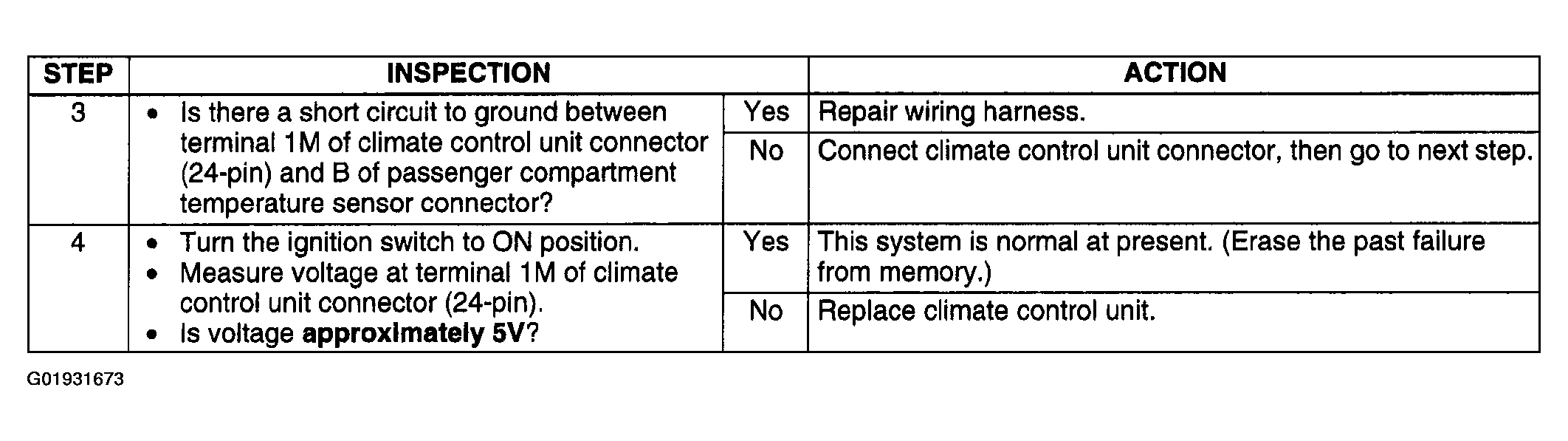

Fig 2: DTC 07: Passenger Compartment Temperature Sensors System Inspection - Diagnostic Procedure (Steps 3 & 4)

Courtesy of MAZDA MOTORS CORP.
