Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

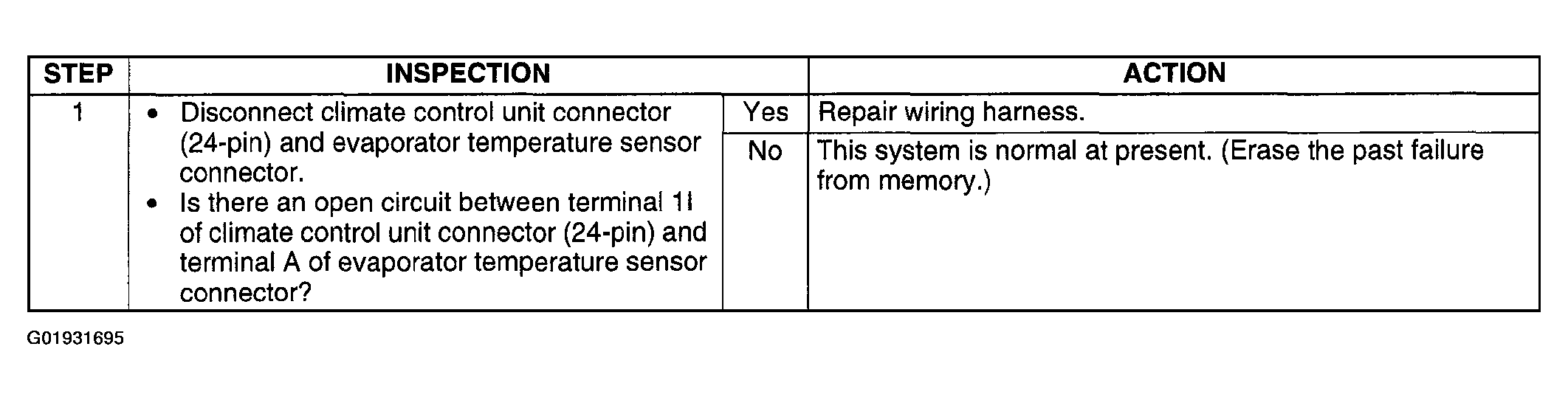

Fig 1: DTC 07, 11, 13, 15, 22: Climate Control Unit (+5V Power Supply Or Sensor Ground System) Or System Ground System Inspection - Diagnostic Procedures
G01931695Courtesy of MAZDA MOTORS CORP.
