Power Steering Oil Pump (L3) Removal/Installation
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3] .)

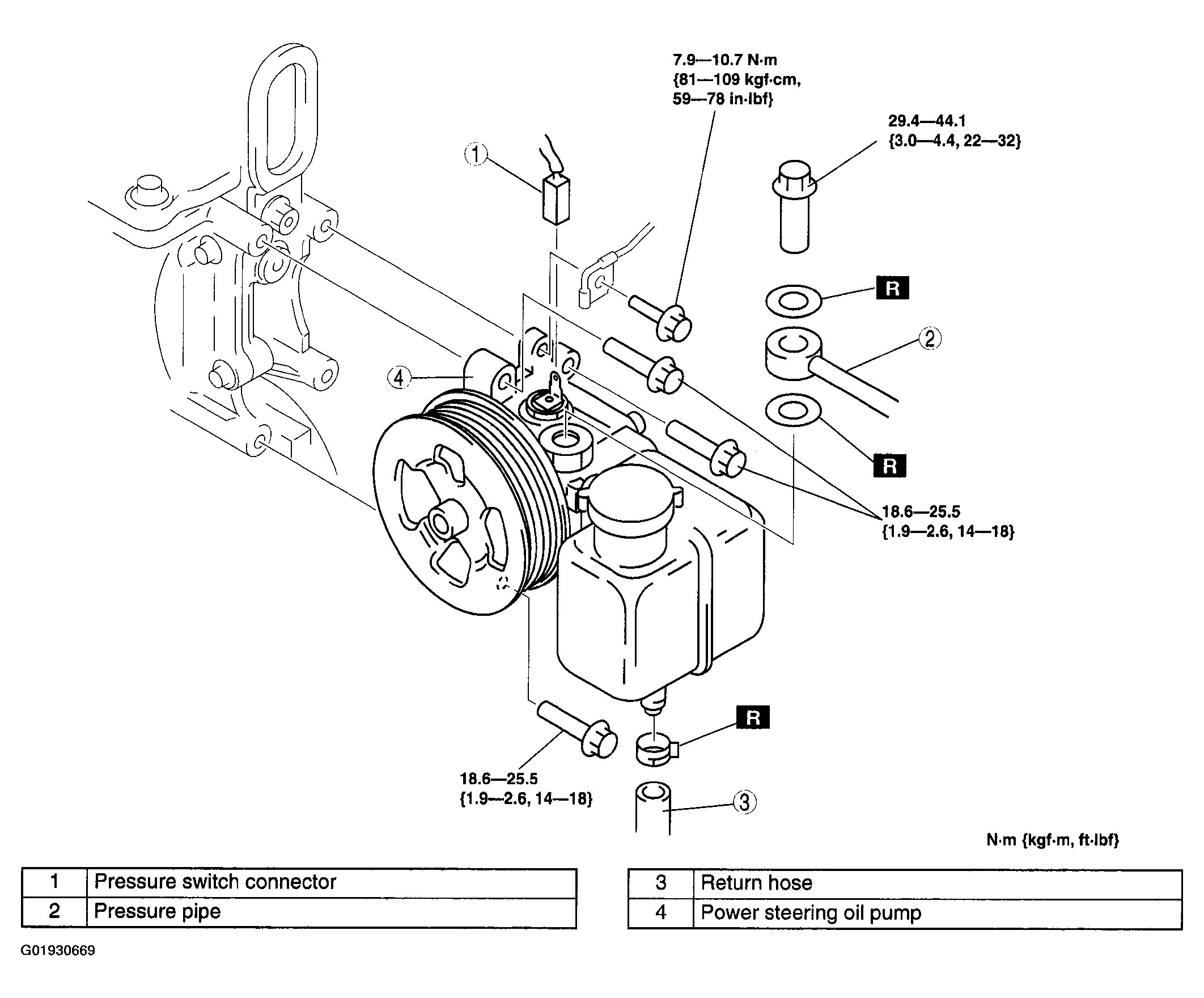

- Remove in the order indicated in Fig 1.
- Install in the reverse order of removal.
