Clutch Cover Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Measure the wear of the diaphragm spring fingers.
    • If not as specified, replace the clutch cover.
      1. Depth 0.6 mm {0.024 in} max.

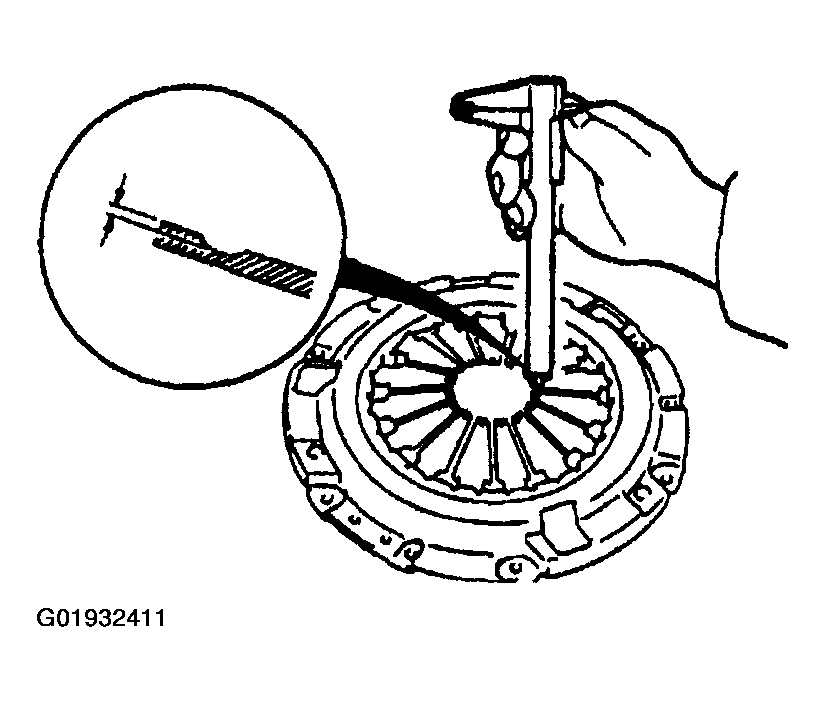

      Fig 1: Measuring Wear Of Diaphragm Spring Fingers
      G01932411Courtesy of MAZDA MOTORS CORP.
  2. Measure the flatness of the pressure plate with a straight edge and a feeler gauge.
    • If not as specified, replace the clutch cover.
      1. Clearance 0.3 mm {0.012 in} max.
    Fig 2: Measuring Flatness Of Pressure Plate With Straight Edge And Feeler Gauge
    G01932412Courtesy of MAZDA MOTORS CORP.
  3. When checking the diaphragm spring fingers, mount a dial indicator on the cylinder block.
  4. Rotate the flywheel and check for misaligned diaphragm spring fingers.
    • If not as specified, replace the clutch cover.
      1. Misalignment 0.6 mm {0.024 in} max.

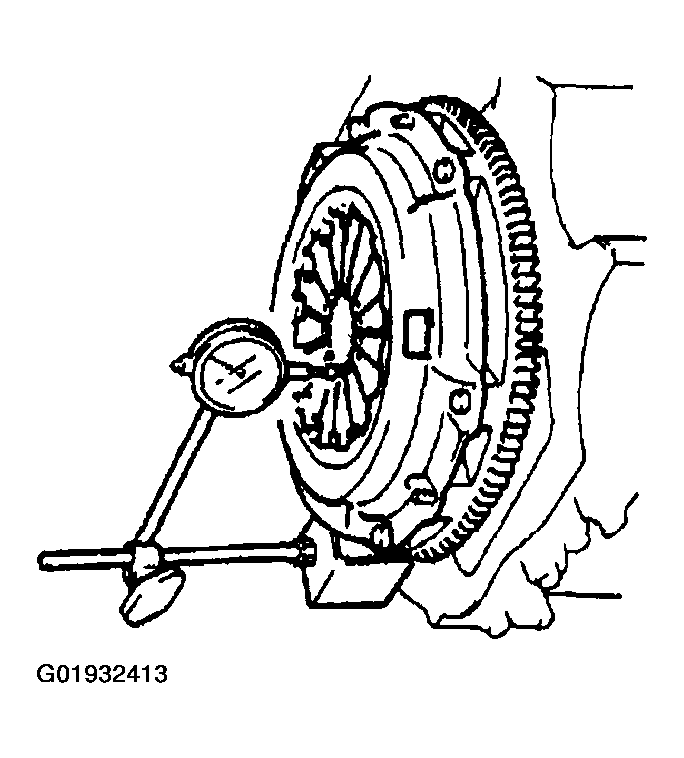

      Fig 3: Checking Diaphragm Spring Fingers Misalignment
      G01932413Courtesy of MAZDA MOTORS CORP.
