Exhaust Manifold (RH) Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the exhaust manifold installation nuts in the order shown in Fig 1.

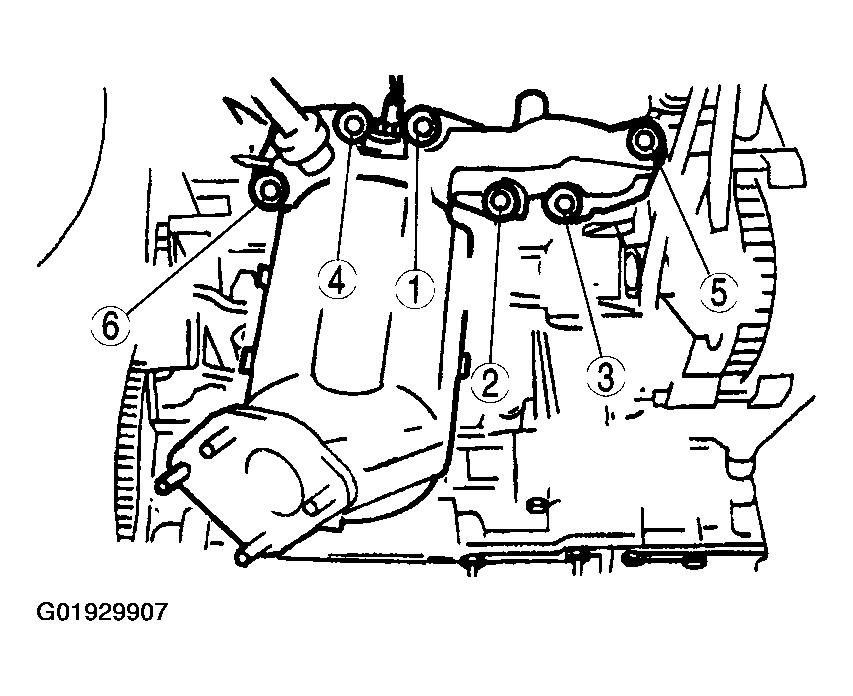

    Fig 1: Tightening Sequence Of Exhaust Manifold (RH) Installation Nuts
    G01929907Courtesy of MAZDA MOTORS CORP.
