Oil Pump Removal/Installation: AJ
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the under cover.
- Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION .)
- Remove the timing chain. (See TIMING CHAIN REMOVAL/INSTALLATION) [AJ] .)

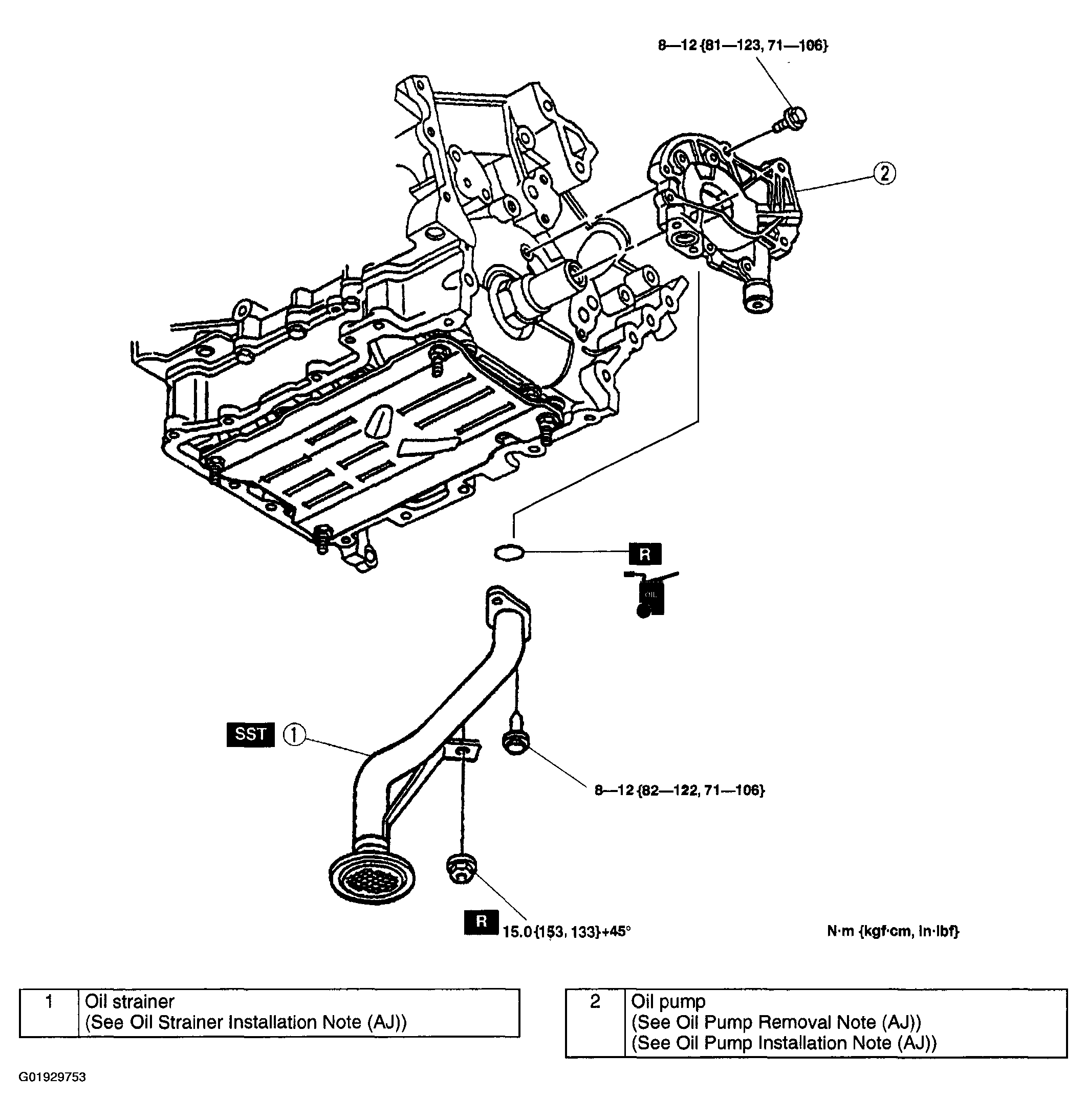

- Remove in the order indicated in Fig 1.
- Install in the reverse order of removal.
- Start the engine and inspect for oil leakage.
- If the oil leaks, specified the faulty part and repair or replace it.
- Inspect the oil level. (See ENGINE OIL REPLACEMENT .)
- Inspect the oil pressure. (See OIL PRESSURE INSPECTION .)
