Oil Pan Installation Note (AJ)

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pan bolts and studs as shown in Fig 1.

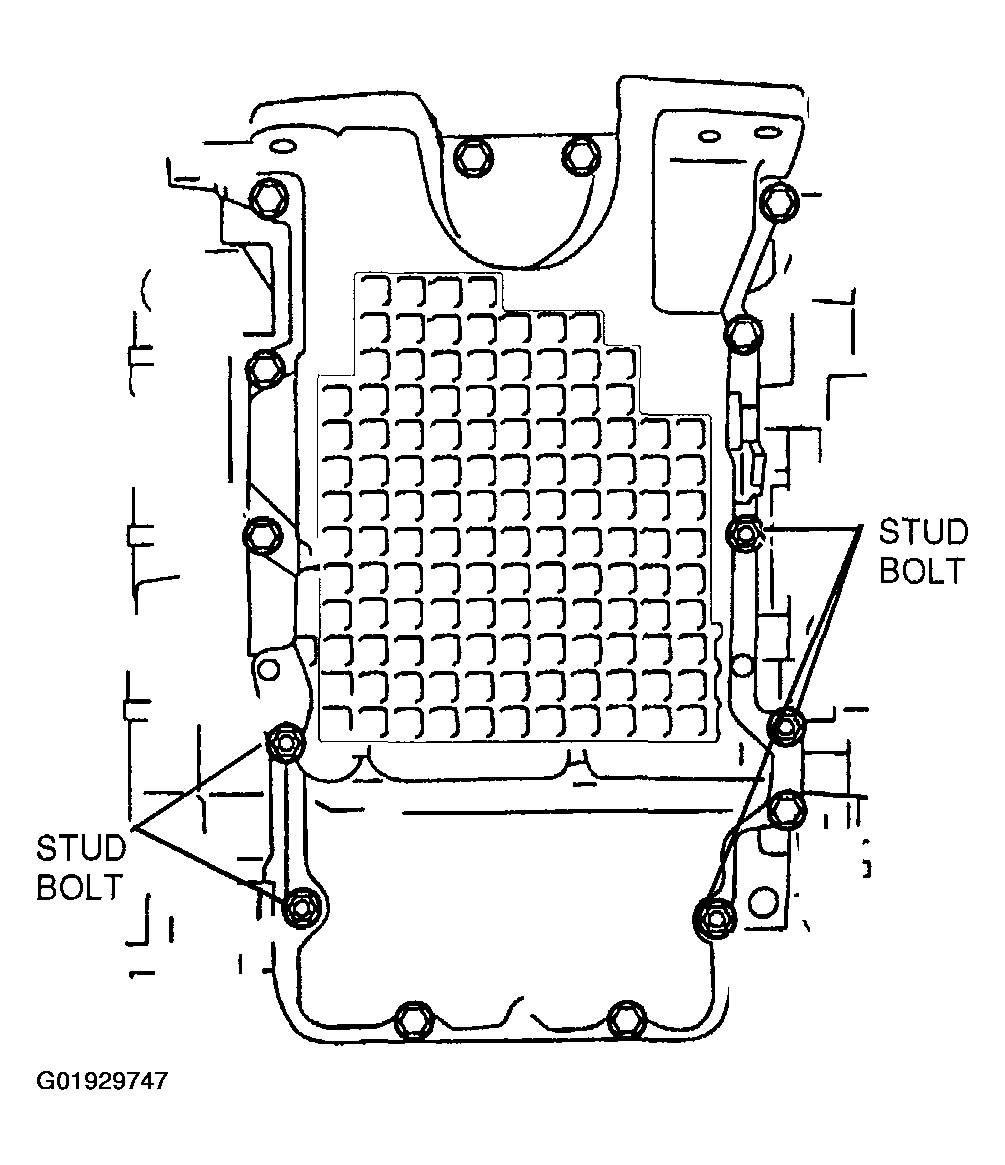

Fig 1: Installing Sequence Of Oil Pan Bolts And Studs
Courtesy of MAZDA MOTORS CORP.
Tighten the transaxle housing bolts to oil pan.

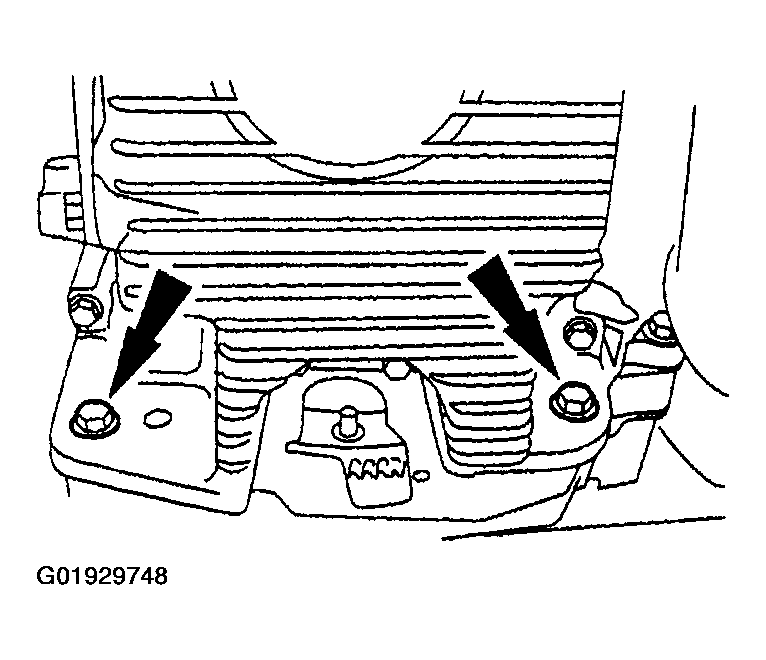

Fig 2: Tightening Transaxle Housing Bolts To Oil Pan
Courtesy of MAZDA MOTORS CORP.
Tighten the oil pan bolts and studs in several passes in the order shown in Fig 3.

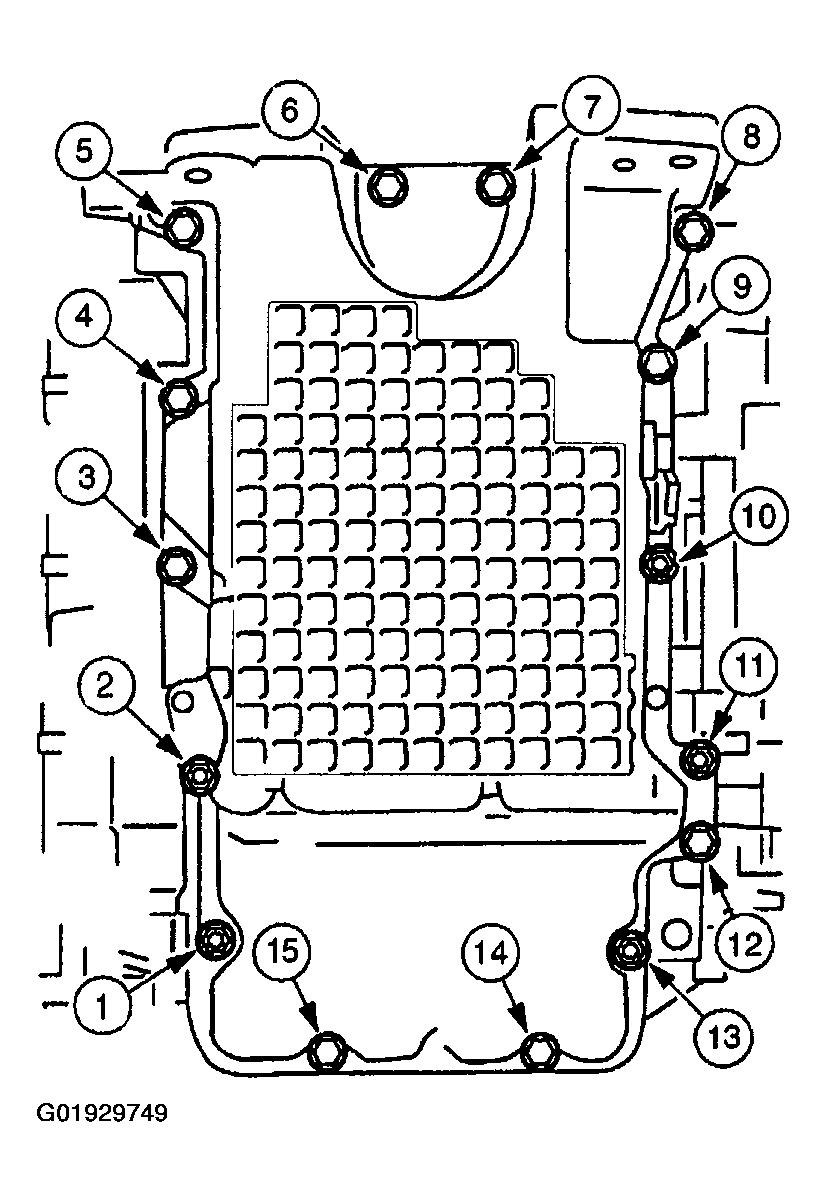

Fig 3: Tightening Sequence Of Oil Pan Bolts And Studs
Courtesy of MAZDA MOTORS CORP.
