Oil Pan Gasket Installation Note (AJ)
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

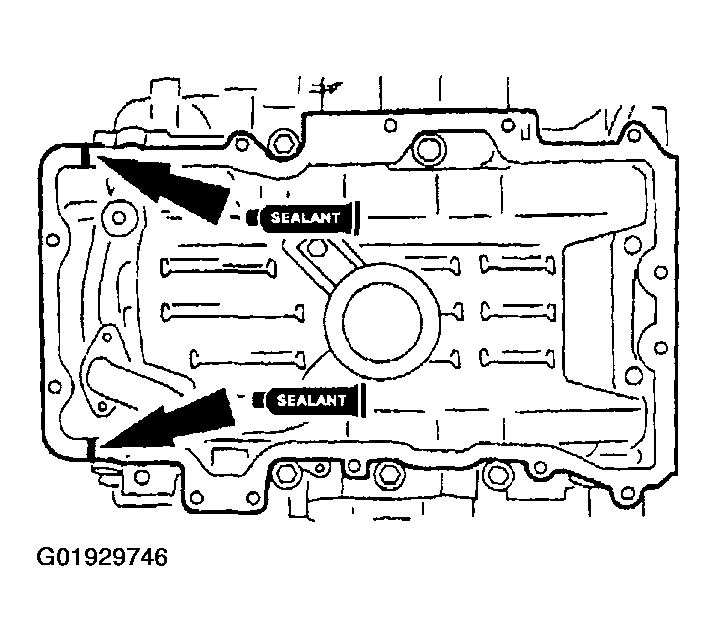

- Apply silicone sealant to the cylinder block as shown in Fig 1.
- Dot diameter 10 mm {0.39 in}
