No.3 Engine Joint Bracket Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine hanger (RH). (See ENGINE HANGER INSTALLATION NOTE .)
  2. Using the bolts part number 99794 1025  or M10x1.25, length 25 mm {0.984 in}  to Install the SST  as shown (LH Bank).

    Tightening torque

    1. 100-125 N.m
    2. {10.2-12.7 kgf.m, 73.8-92.1 ft.lbf}

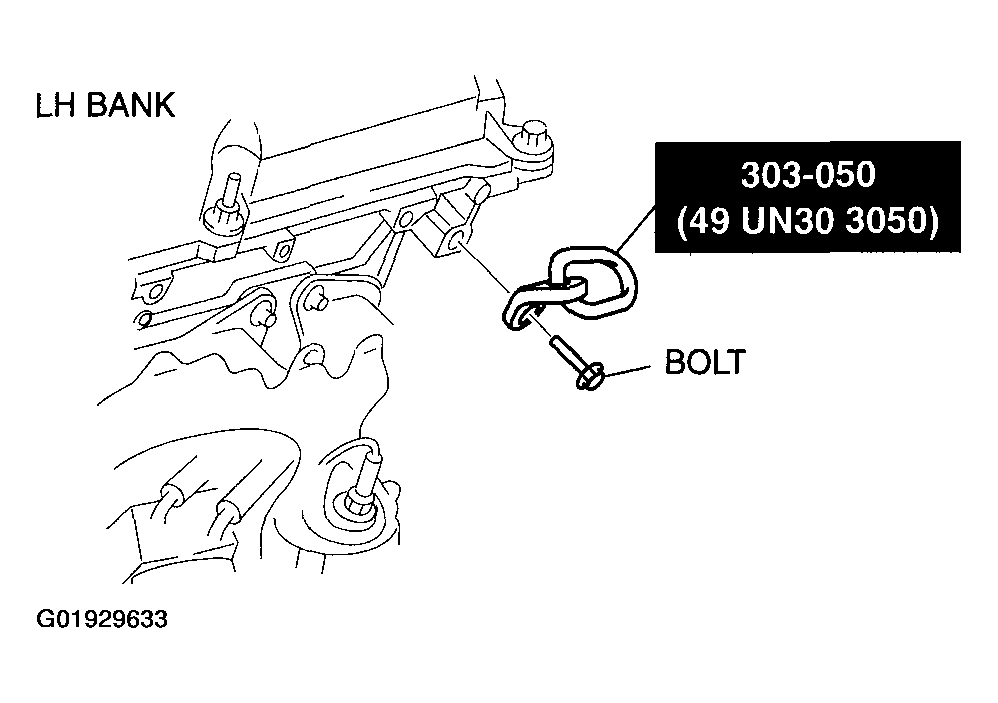

      3. Fig 1: Installing SST To Left Cylinder Head
      G01929633Courtesy of MAZDA MOTORS CORP.
  3. Suspend the engine using the SSTs.
    Fig 2: Suspending Engine
    G01929634Courtesy of MAZDA MOTORS CORP.
  4. Remove the No.3 engine joint bracket.
