Front Oil Seal Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the front oil seal using part A of the SST  [303-335 (49 UN30 3335)] and the SST  [303-102 (49 UN01 002)].
    Fig 1: Identifying Special Tools
    G01929668Courtesy of MAZDA MOTORS CORP.
  2. Apply clean engine oil to the oil seal.
  3. Push the oil seal slightly in by hand.
  4. Compress the oil seal using the SSTs  .

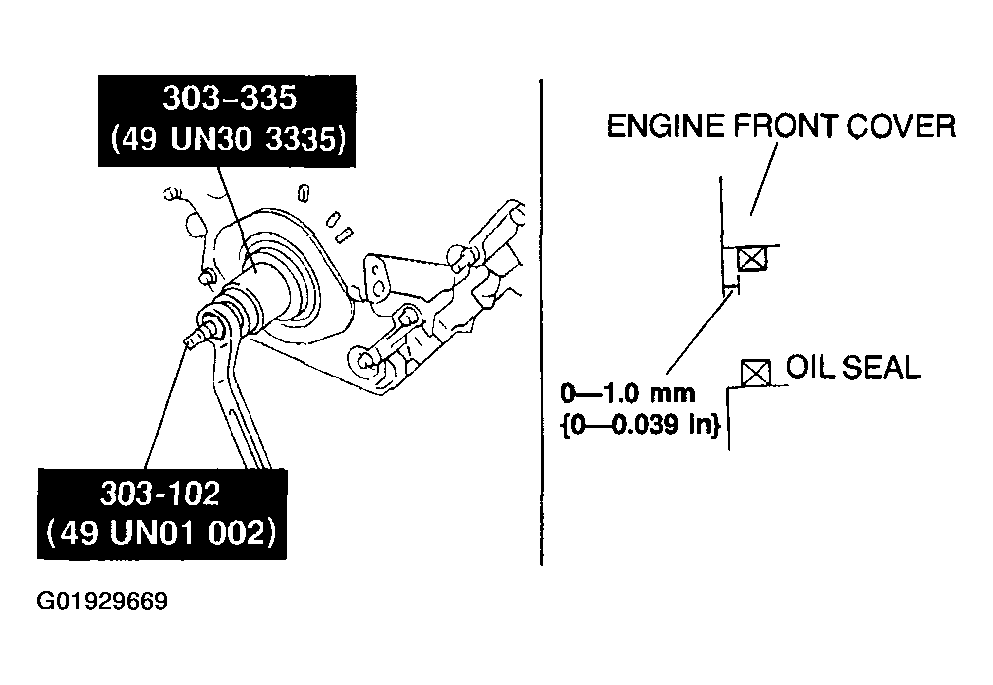

    Fig 2: Installing Oil Seal
    G01929669Courtesy of MAZDA MOTORS CORP.
