Engine Front Cover Installation Note
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

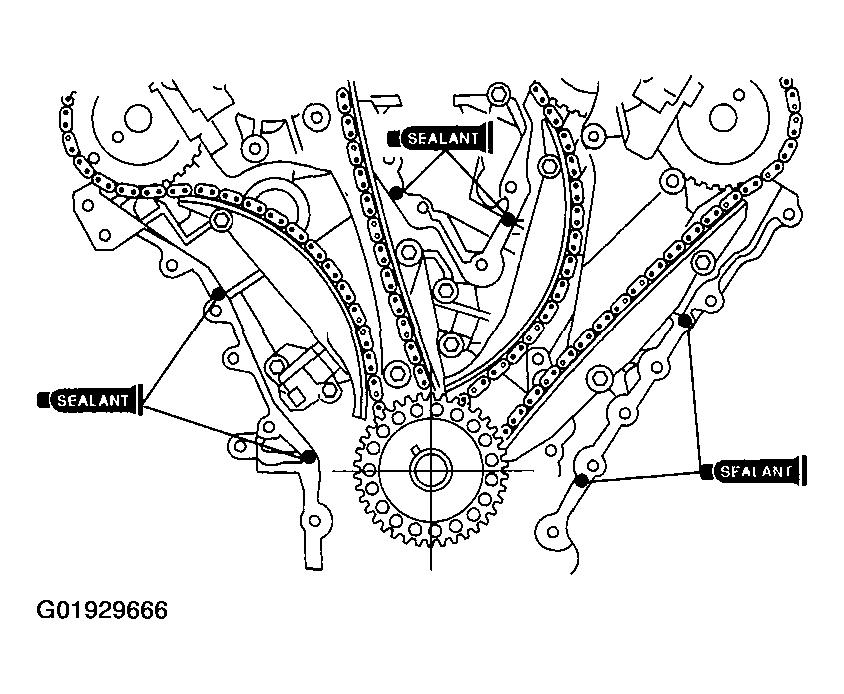

- Apply a 6 mm {0.24 in}
dot of silicone sealant at the indicated location in Fig 1.
Courtesy of MAZDA MOTORS CORP.

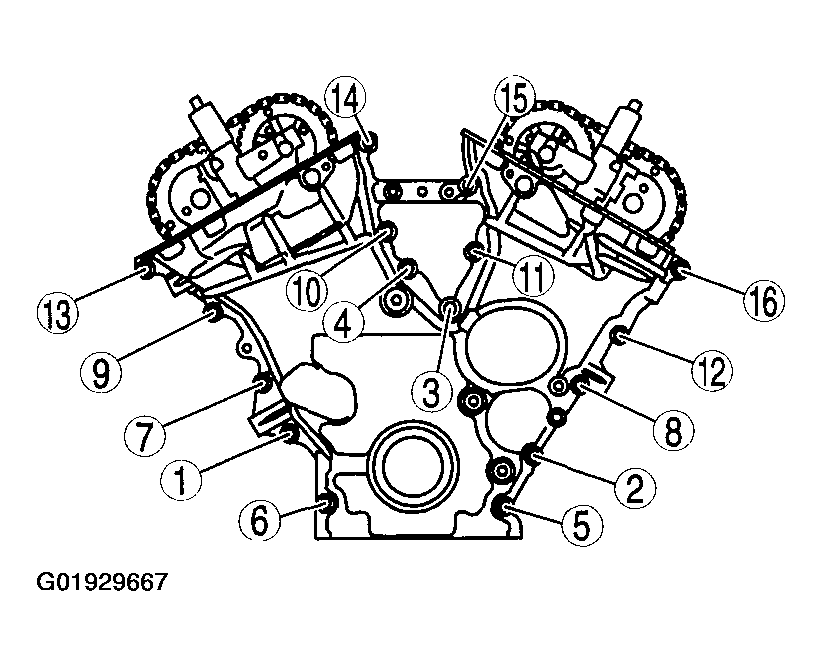

- Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown in Fig 2.
Courtesy of MAZDA MOTORS CORP.
