Cylinder Head Cover (LH) Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover bolts in the order shown Fig 1.

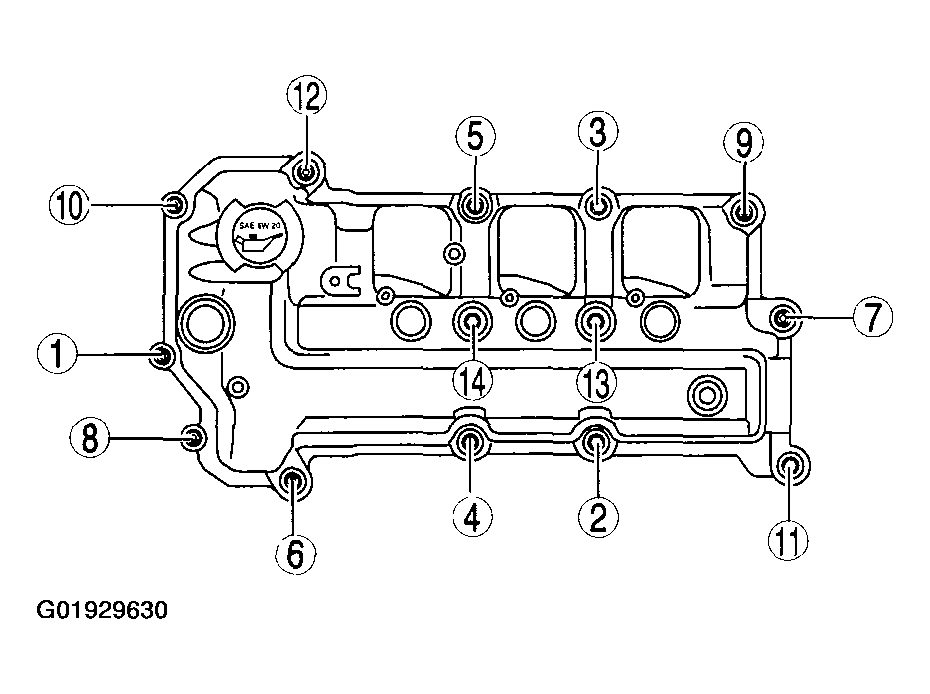

    Fig 1: Removing Sequence Of Cylinder Head Cover Bolts (LH)
    G01929630Courtesy of MAZDA MOTORS CORP.
