Cylinder Head Cover (LH) Installation Note
WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

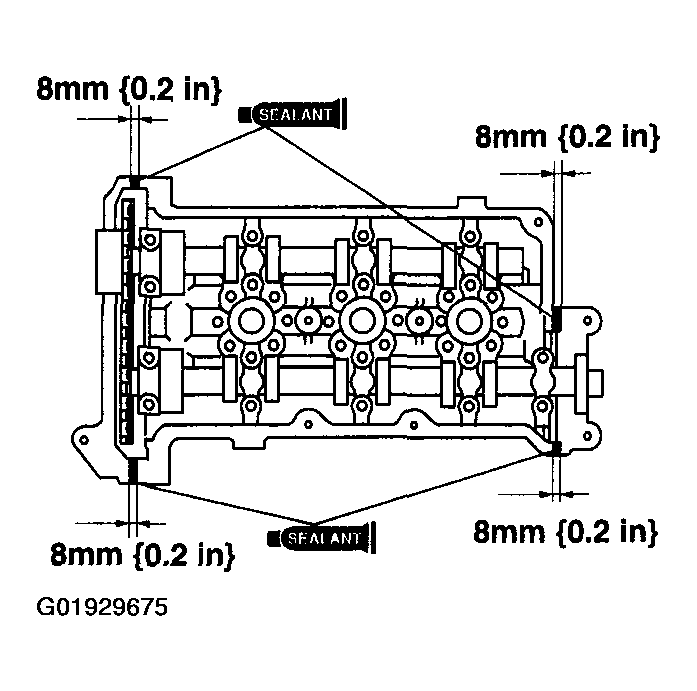

- Apply silicone sealant to the mating faces as shown in Fig 1.
Courtesy of MAZDA MOTORS CORP.
- Install the cylinder head cover with a new gasket.

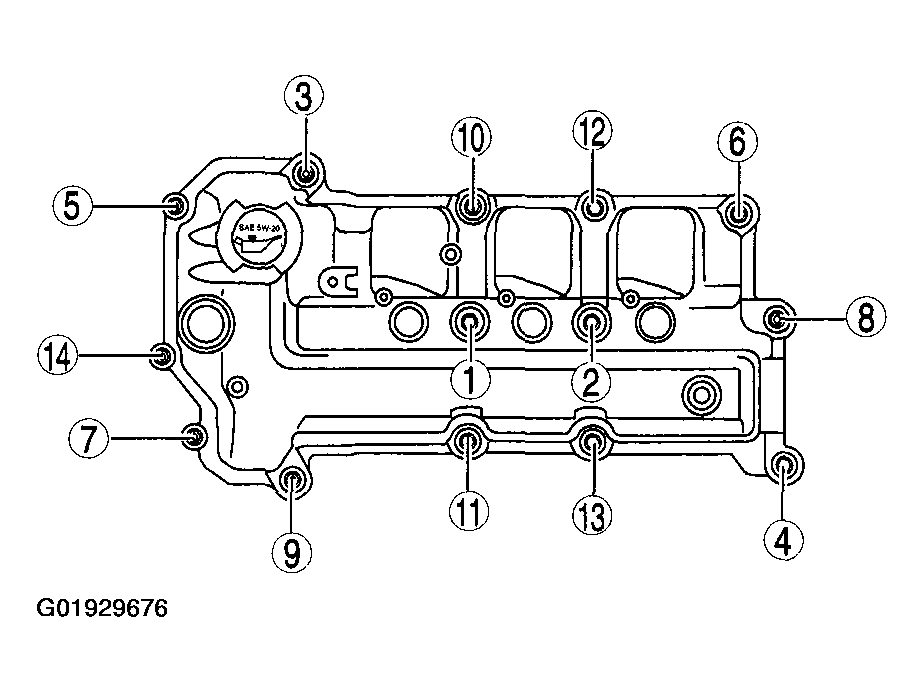

- Tighten the bolts in the order shown in Fig 2.
Courtesy of MAZDA MOTORS CORP.
