Crankshaft Position (CKP) Sensor Pulse Wheel Installation Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the "FRONT" mark of the pulse wheel facing you, install the crankshaft position (CKP) sensor pulse wheel using the keyway on the same side as the empty space shown in Fig 1.

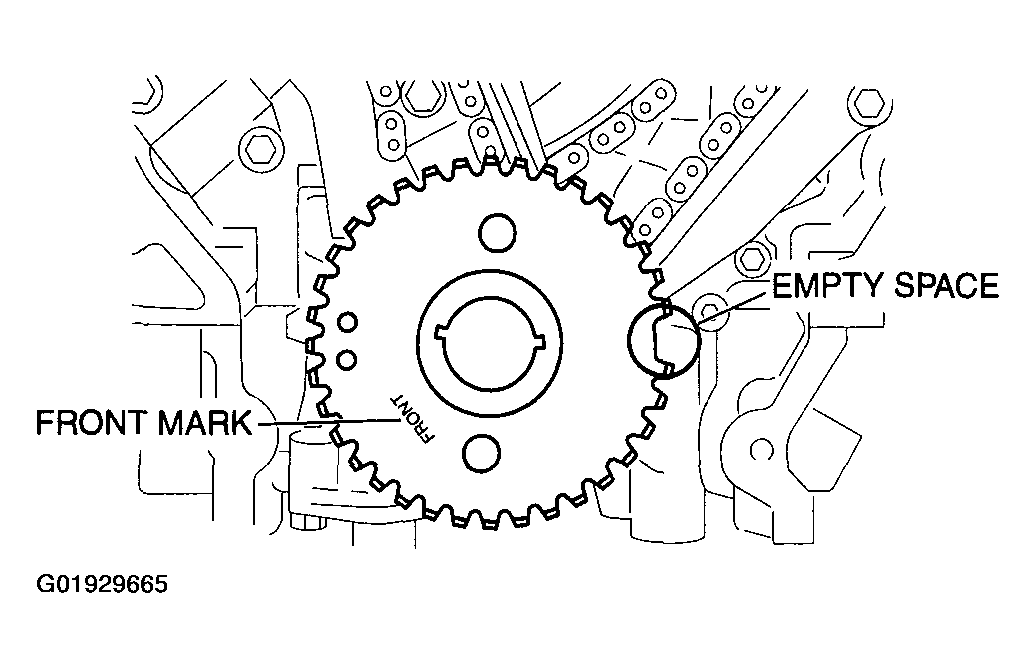

    Fig 1: Installing Crankshaft Position Sensor Pulse Wheel
    G01929665Courtesy of MAZDA MOTORS CORP.
