Water Pump Drive Belt

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plug hole plate.
  2. Rotate the belt tensioner counterclockwise to release the drive belt tension and remove the belt.

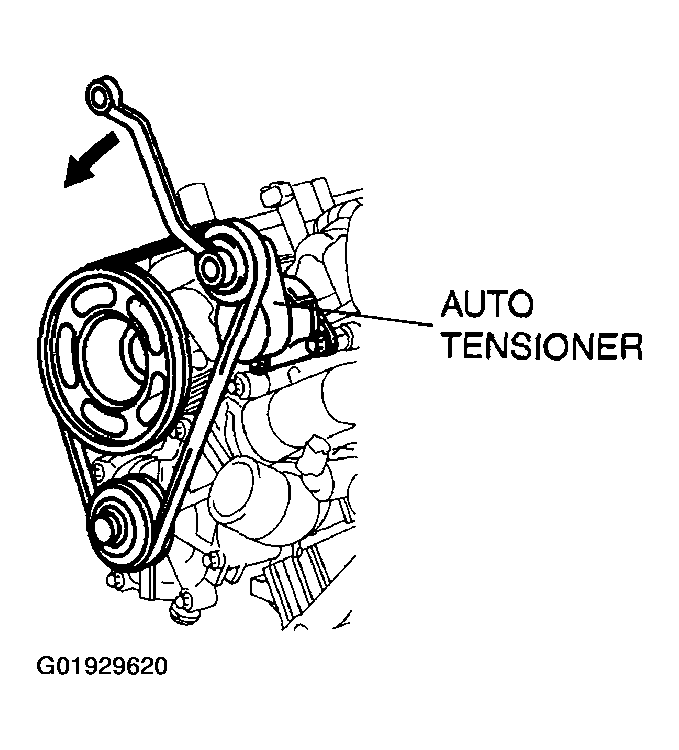

    Fig 1: Releasing Water Pump Drive Belt Tension
    G01929620Courtesy of MAZDA MOTORS CORP.
  3. Reinstall the water pump drive belt or install a new drive belt.
