Cylinder Head (LH) Removal Note

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the cylinder head bolts in several passes in the order shown in Fig 1.

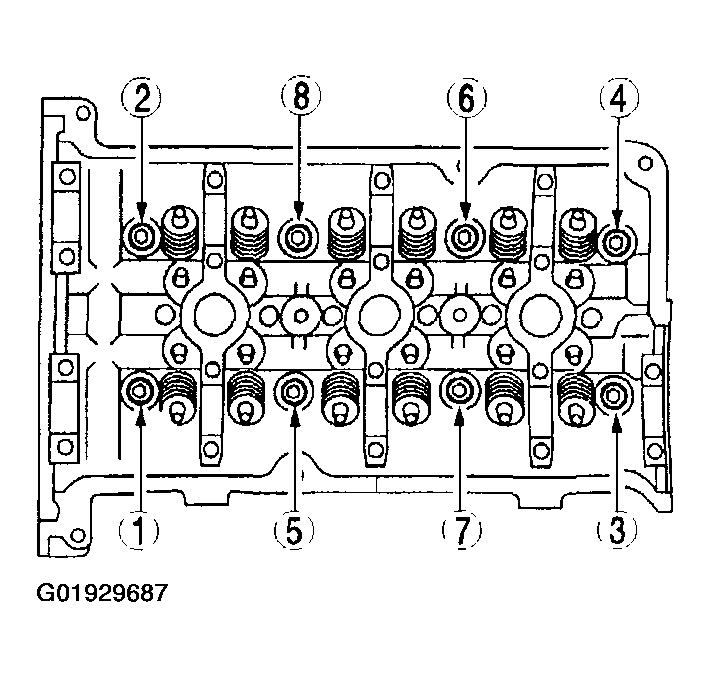

    Fig 1: Removing Sequence Of LH Cylinder Head Bolts
    G01929687Courtesy of MAZDA MOTORS CORP.
