Oil Pump Installation Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the oil pump bolts in the order shown.

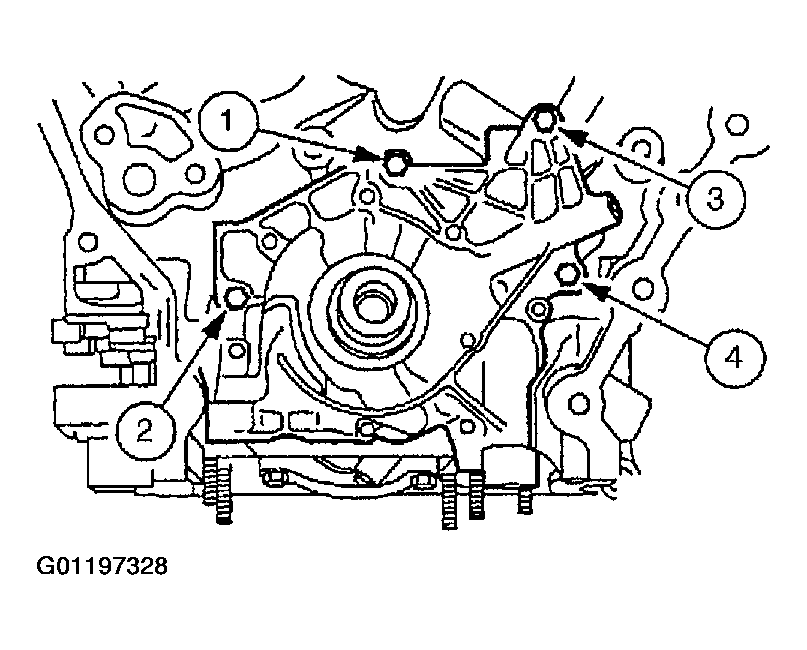

Fig 1: Oil Pump Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
