Oil Pan Removal Note
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transaxle housing bolts from oil pan.
Courtesy of MAZDA MOTORS CORP.

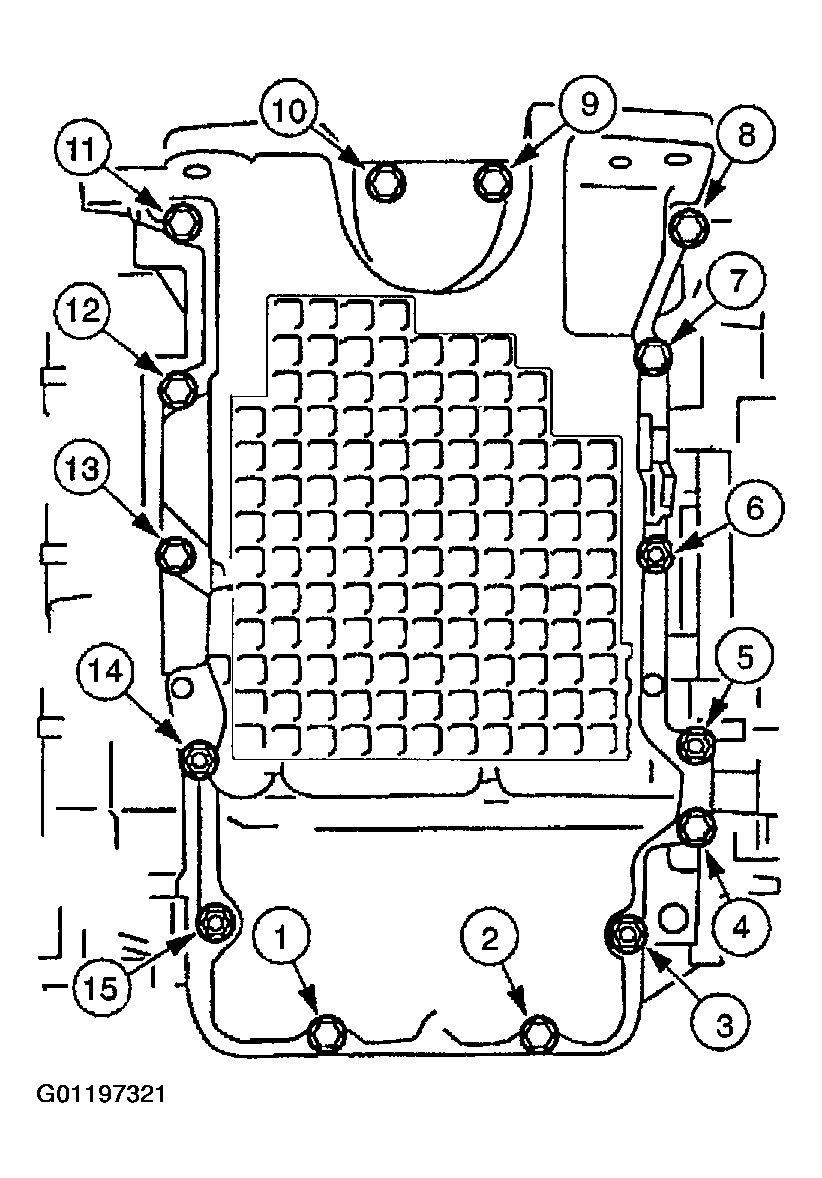

- Loosen the oil pan bolts and studs in several passes in the order shown.
Courtesy of MAZDA MOTORS CORP.
