Oil Pan Installation Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pan bolts and studs as shown.

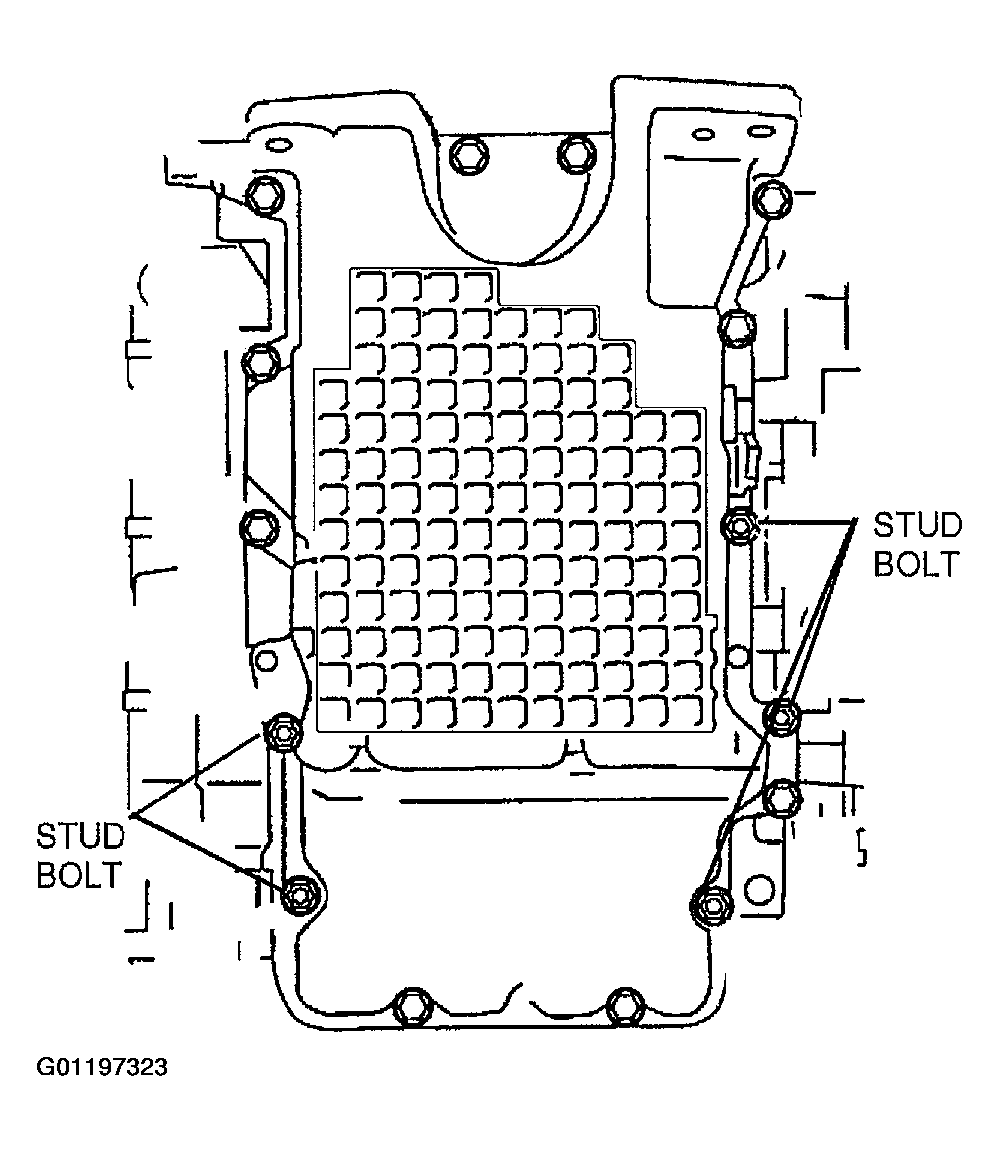

Fig 1: Locating Oil Pan Bolts/Studs
Courtesy of MAZDA MOTORS CORP.
Tighten the transaxle housing bolts to oil pan.

Fig 2: Tightening Transaxle Housing-To-Oil Pan Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the oil pan bolts and studs in several passes in the order shown.

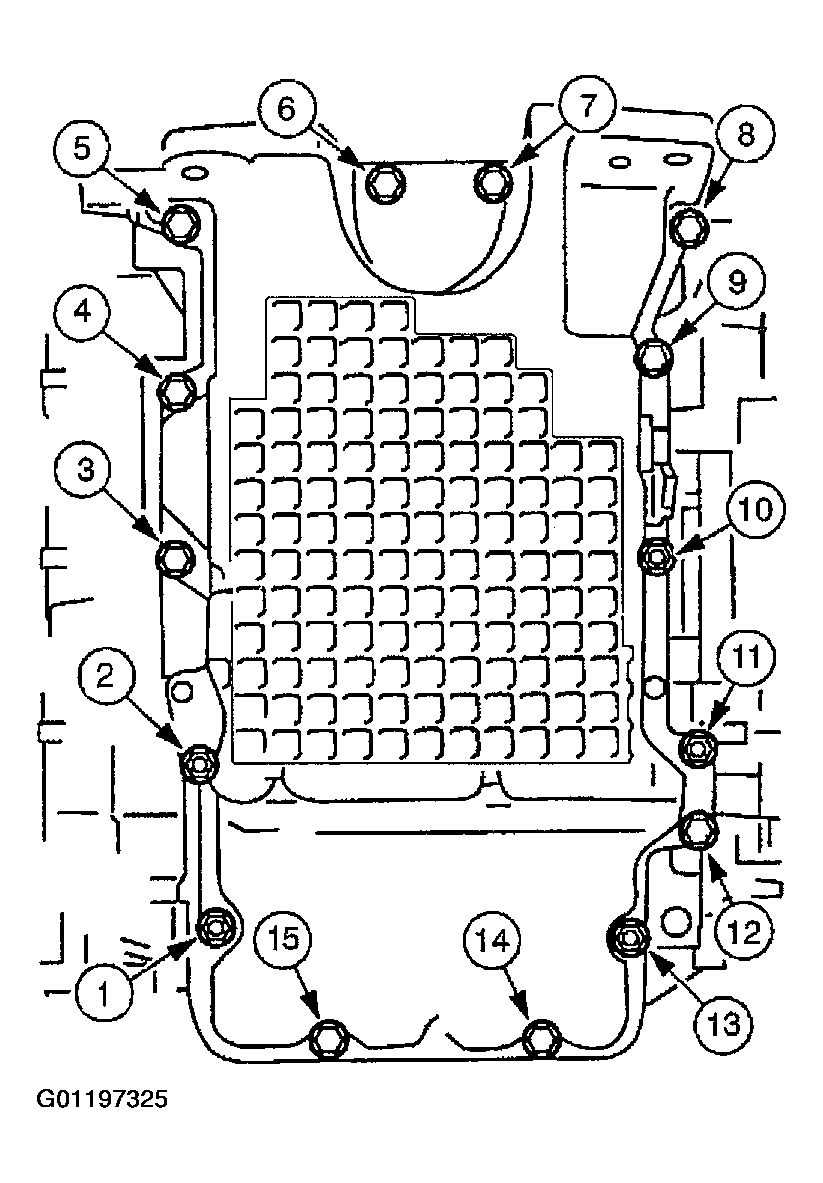

Fig 3: Oil Pan Bolt/Stud Tightening Sequence

Courtesy of MAZDA MOTORS CORP.
