Exhaust Manifold (RH) Installation Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the exhaust manifold installation nuts in the order shown.

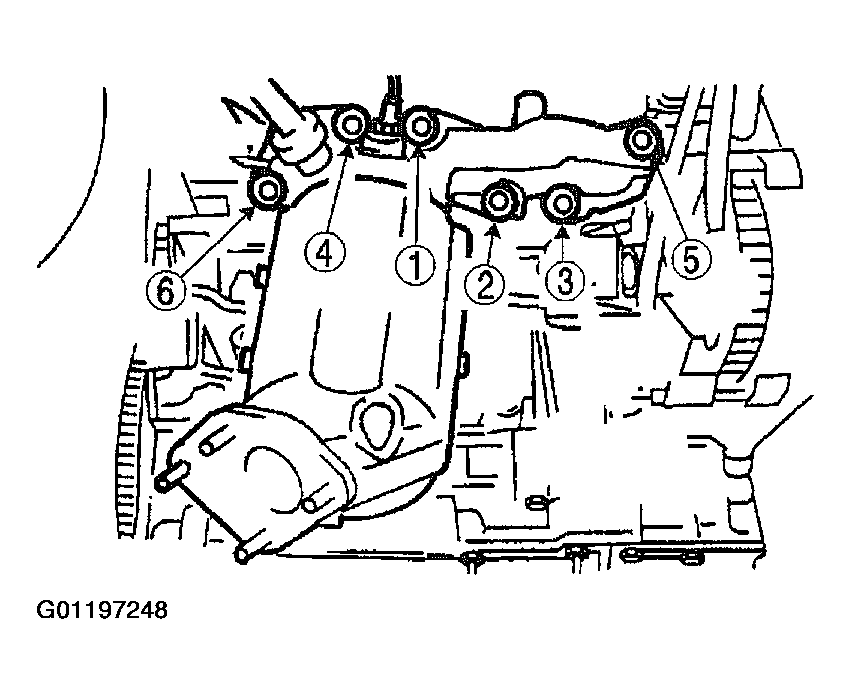

Fig 1: Exhaust Manifold Nut Tightening Sequence (RH)
Courtesy of MAZDA MOTORS CORP.
