IMCC Actuator Operation Test: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the IMCC actuator connector.
Remove the IMCC actuator. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Connect battery positive voltage to terminal A and ground to terminal B.

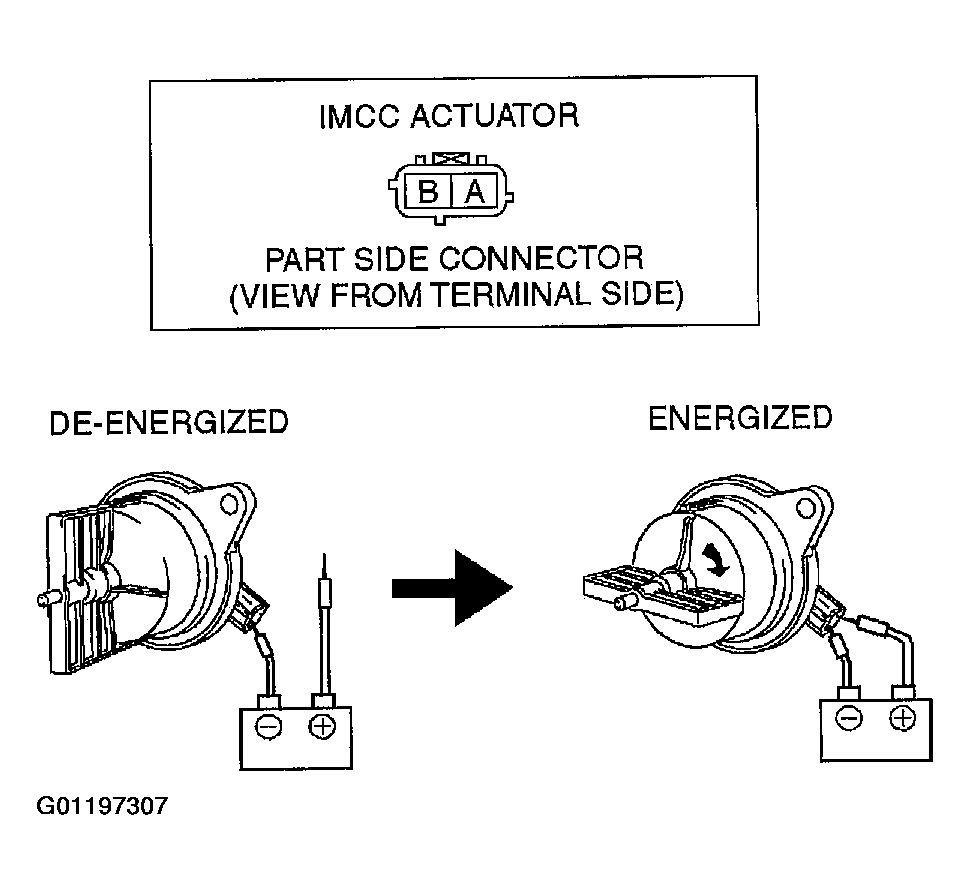

Fig 1: Testing IMCC Actuator Operation/Identifying Terminals
Courtesy of MAZDA MOTORS CORP.
Verify that the IMCC actuator operates.
- If not specified, replace the IMCC actuator.
- If as specified, carry out the "Circuit Open/Short Inspection". See CIRCUIT OPEN/SHORT INSPECTION .
