Resistance Inspection
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.

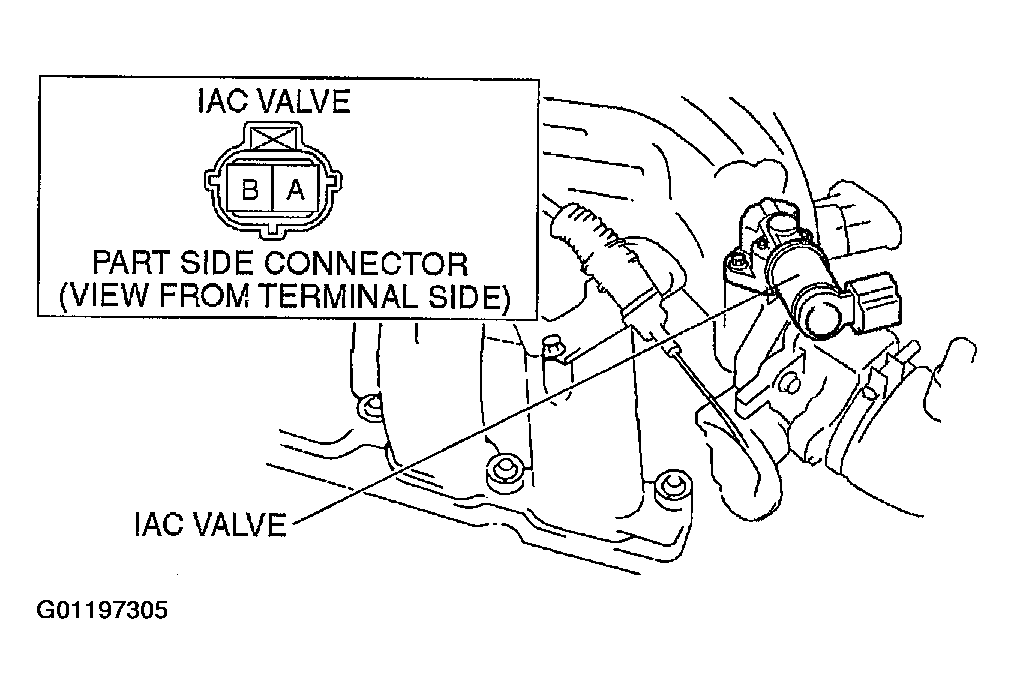

- Disconnect the IAC valve connector.
- Measure the resistance between the IAC valve terminals using an ohmmeter.
- If not as specified, replace the IAC valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- If as specified but the Operation Test is failed, carry out the "Circuit Open/Short Inspection".
Resistance
- 8.69-10.56 Ohms
