No. 7 Insufficient Air (Or No Air) Blown From Vents

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

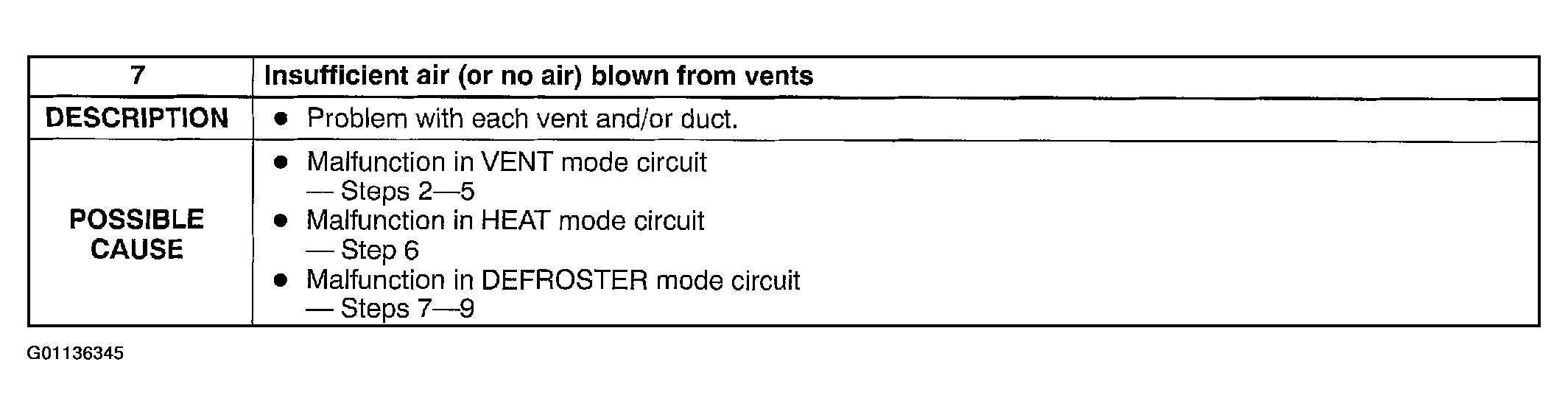

Fig 1: No. 7 Insufficient Air (Or No Air) Blown From Vents - Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

Diagnostic procedure

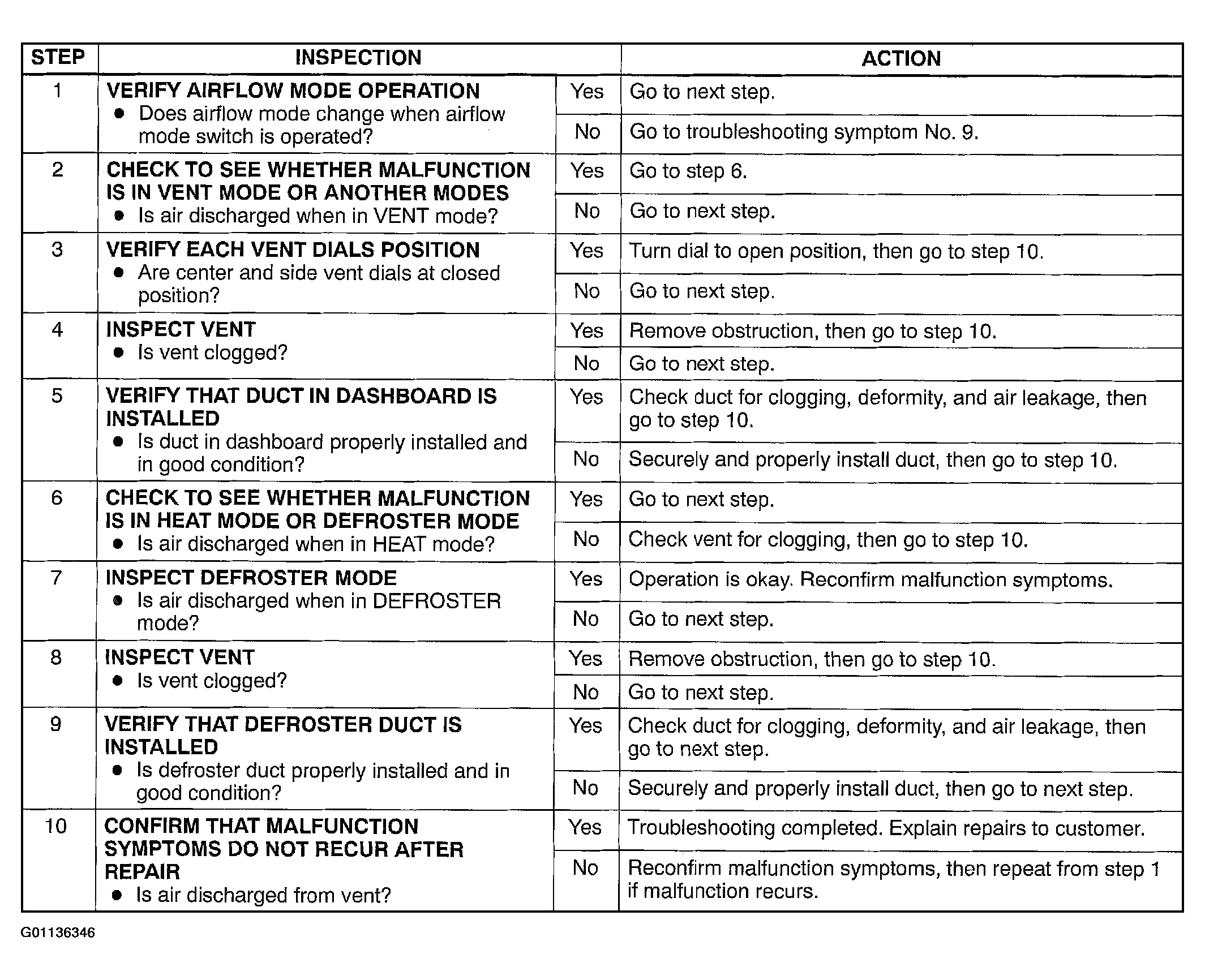

Fig 2: No. 7 Insufficient Air (Or No Air) Blown From Vents - Diagnostic Procedure

Courtesy of MAZDA MOTORS CORP.
