No. 5 Air From Vents Not Cold Enough

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: No. 5 Air From Vents Not Cold Enough - Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

Diagnostic procedure

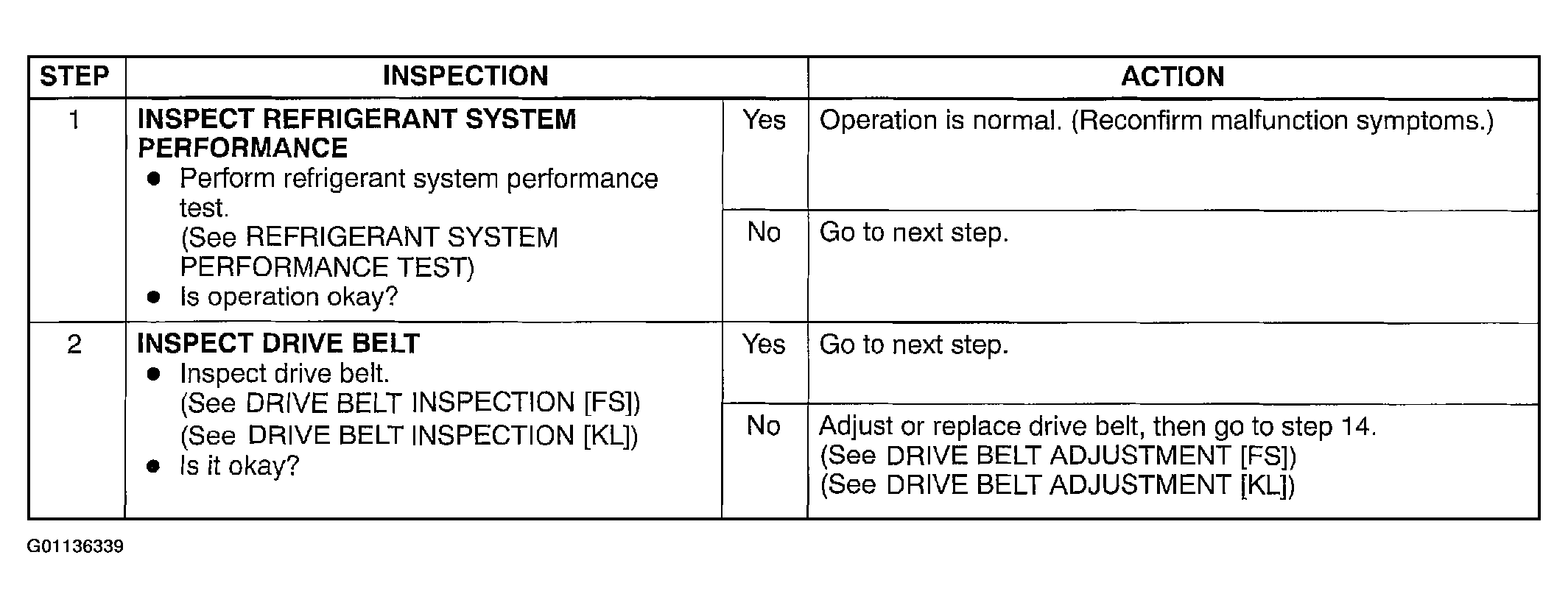

Fig 2: No. 5 Air From Vents Not Cold Enough - Diagnostic Procedure (Steps 1 & 2)

Courtesy of MAZDA MOTORS CORP.

Fig 3: No. 5 Air From Vents Not Cold Enough - Diagnostic Procedure (Steps 3-10)

Courtesy of MAZDA MOTORS CORP.

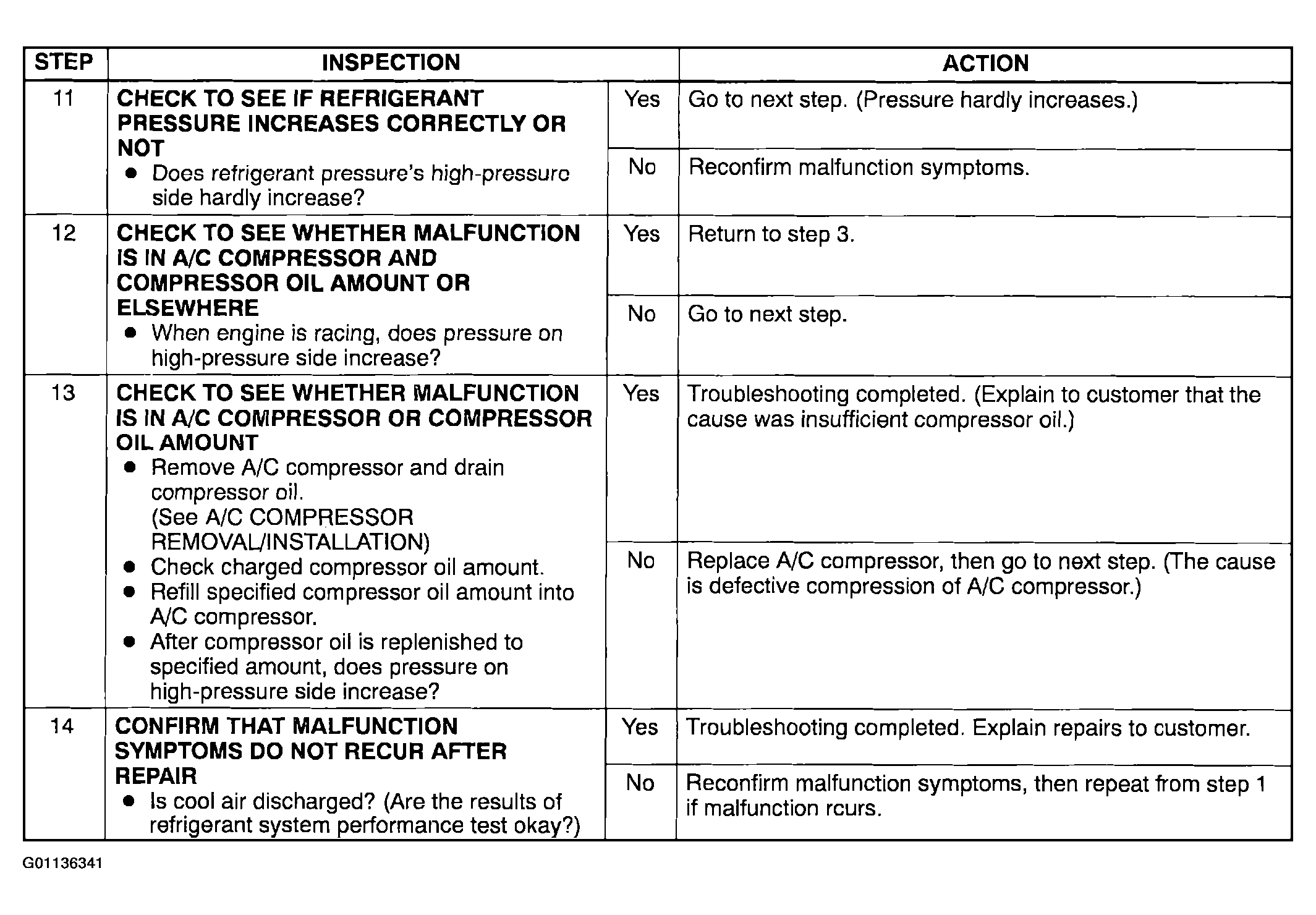

Fig 4: No. 5 Air From Vents Not Cold Enough - Diagnostic Procedure (Steps 11-14)

Courtesy of MAZDA MOTORS CORP.
