No. 4 No Cool Air

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

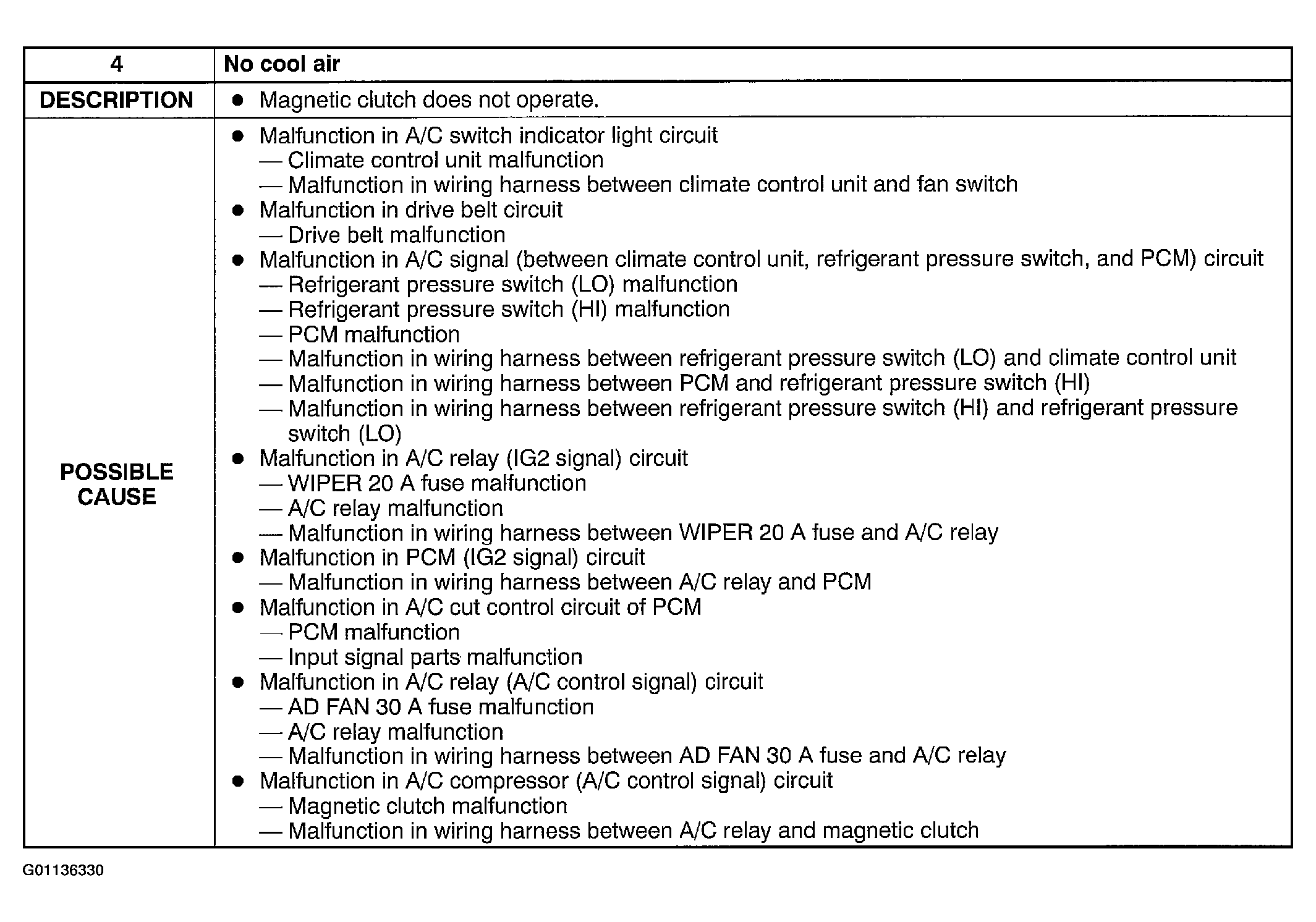

Fig 1: No. 4 No Cool Air - Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

Diagnostic procedure

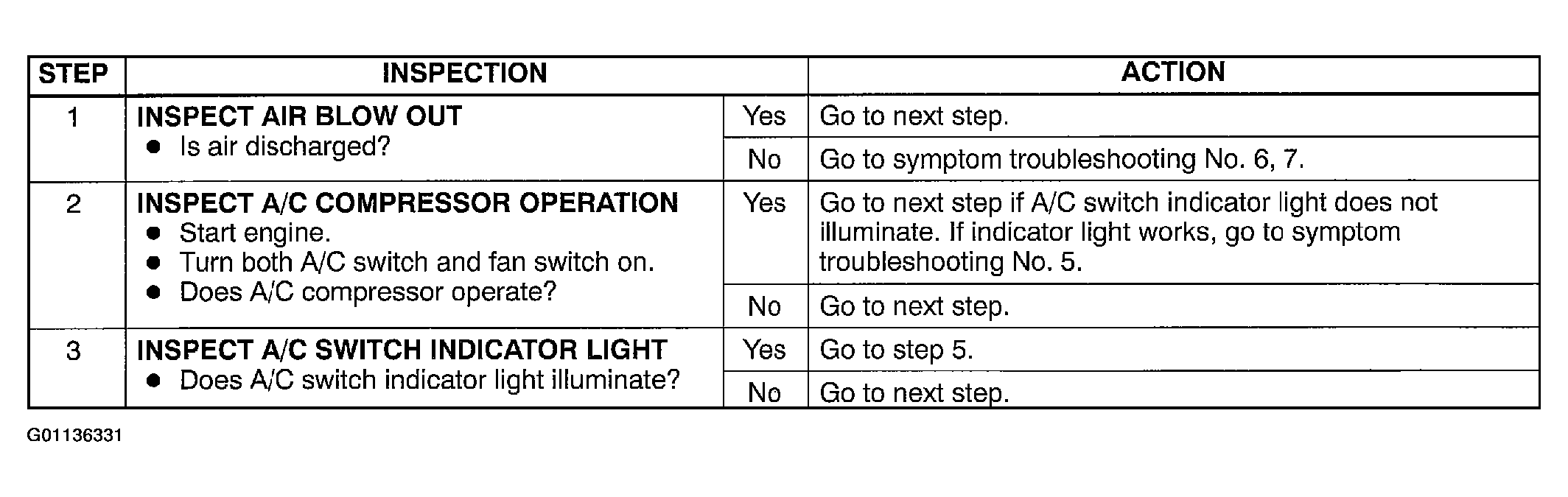

Fig 2: No. 4 No Cool Air - Diagnostic Procedure (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

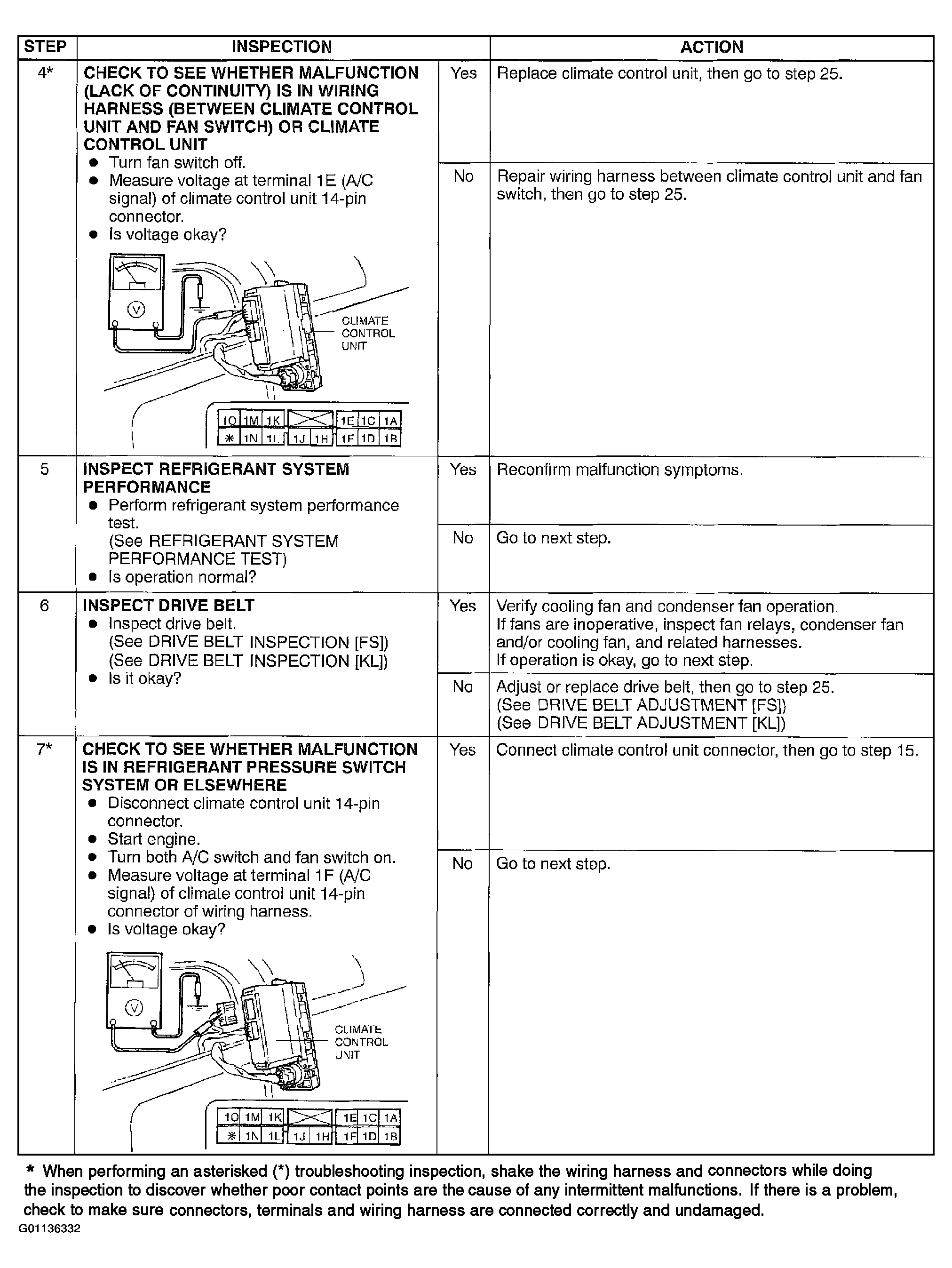

Fig 3: No. 4 No Cool Air - Diagnostic Procedure (Steps 4-7)

Courtesy of MAZDA MOTORS CORP.

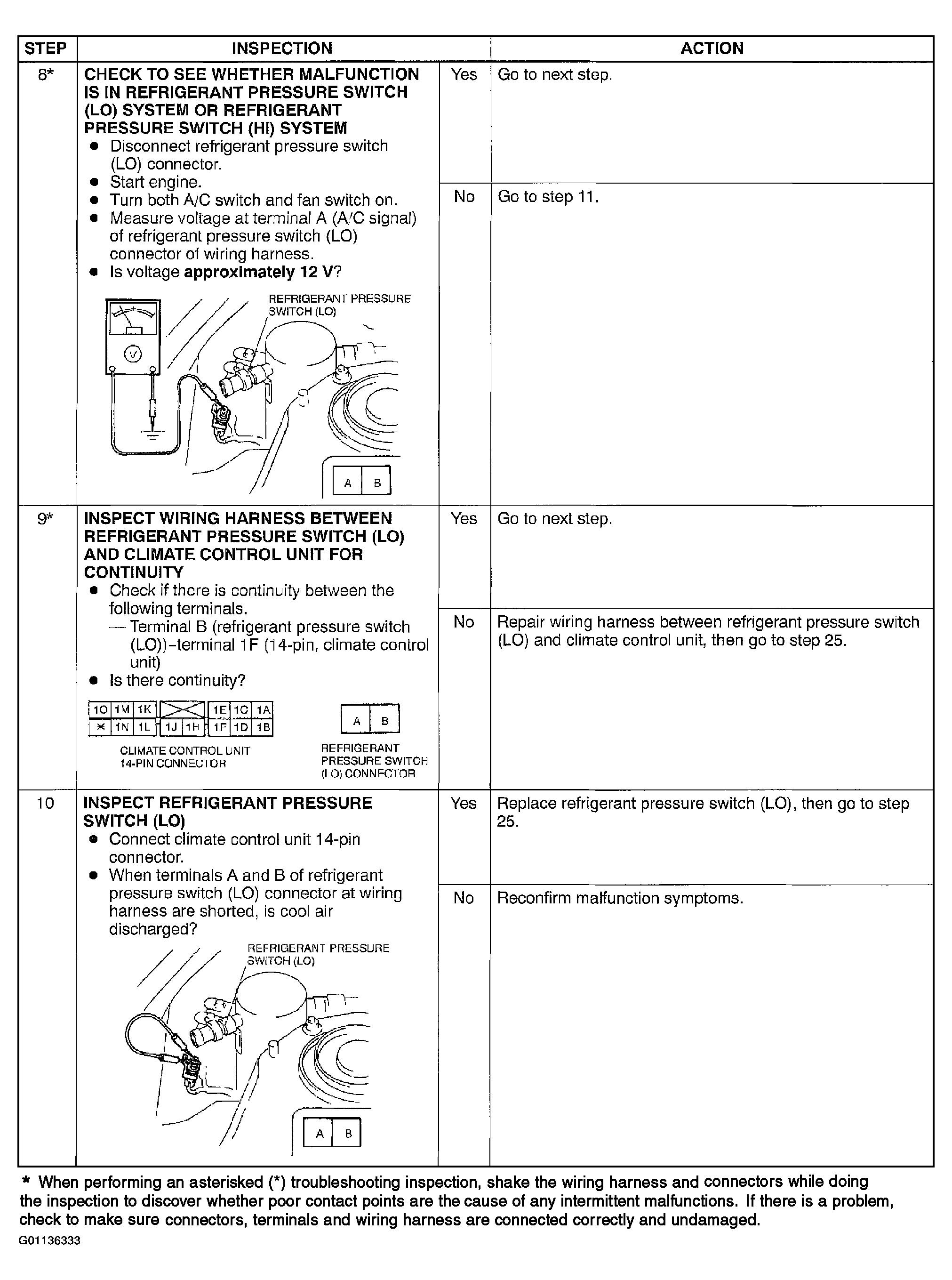

Fig 4: No. 4 No Cool Air - Diagnostic Procedure (Steps 8-10)

Courtesy of MAZDA MOTORS CORP.

Fig 5: No. 4 No Cool Air - Diagnostic Procedure (Steps 11-13)

Courtesy of MAZDA MOTORS CORP.

Fig 6: No. 4 No Cool Air - Diagnostic Procedure (Steps 14-18)

Courtesy of MAZDA MOTORS CORP.

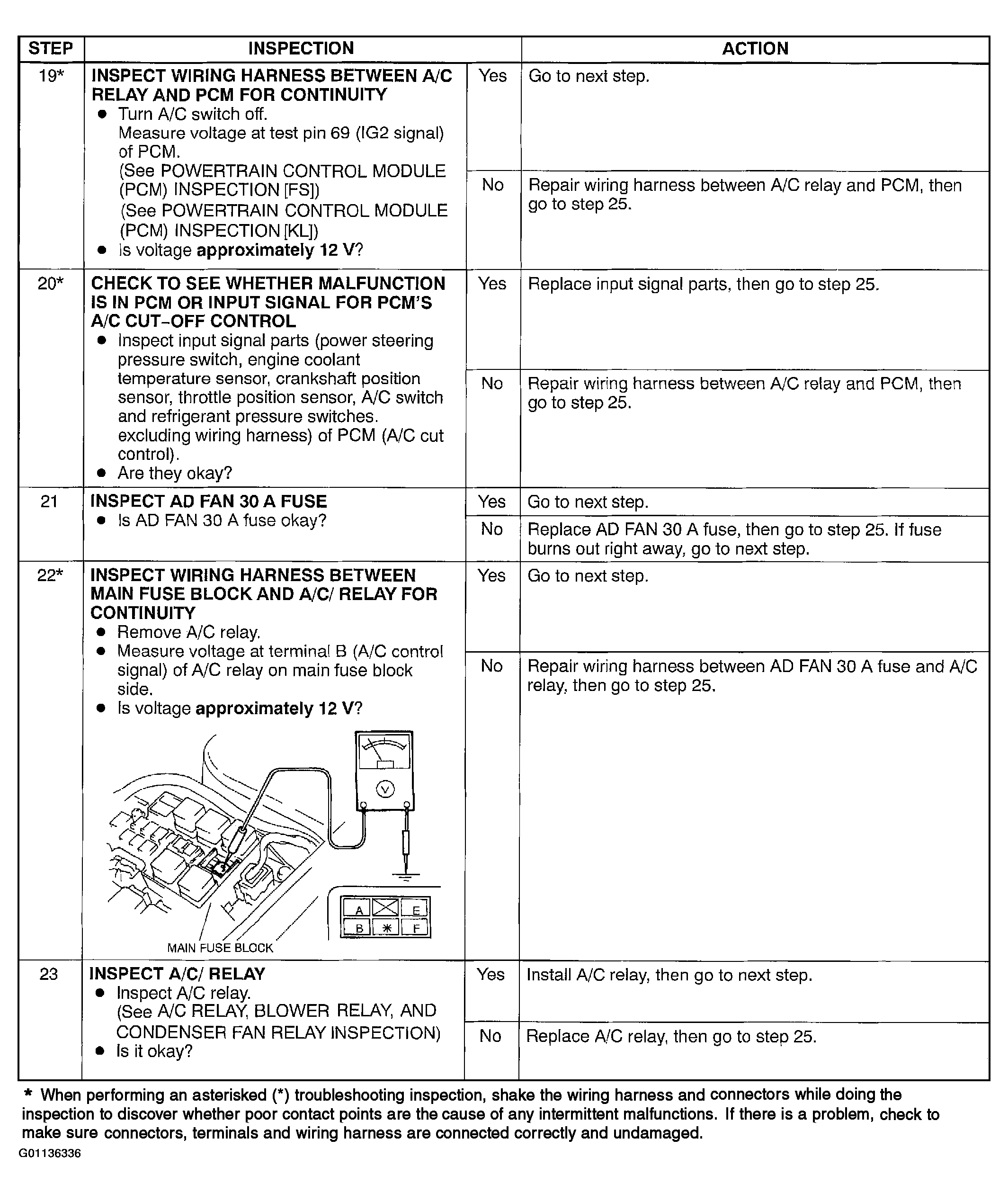

Fig 7: No. 4 No Cool Air - Diagnostic Procedure (Steps 19-23)

Courtesy of MAZDA MOTORS CORP.

Fig 8: No. 4 No Cool Air - Diagnostic Procedure (Steps 24-25)

Courtesy of MAZDA MOTORS CORP.
