No. 3 Air Outlet Temperature Does Not Change

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

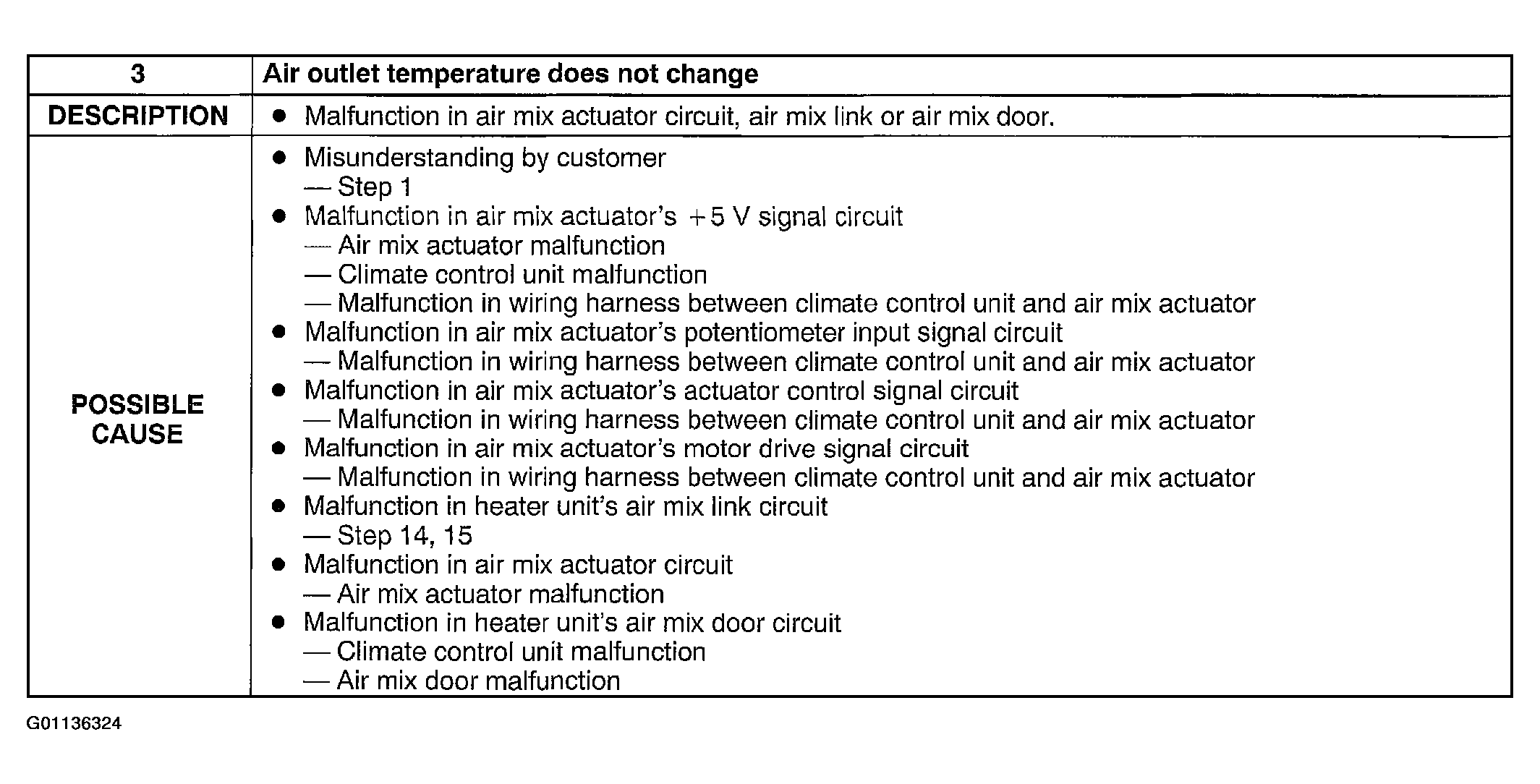

Fig 1: No. 3 Air Outlet Temperature Does Not Change - Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

Diagnostic procedure

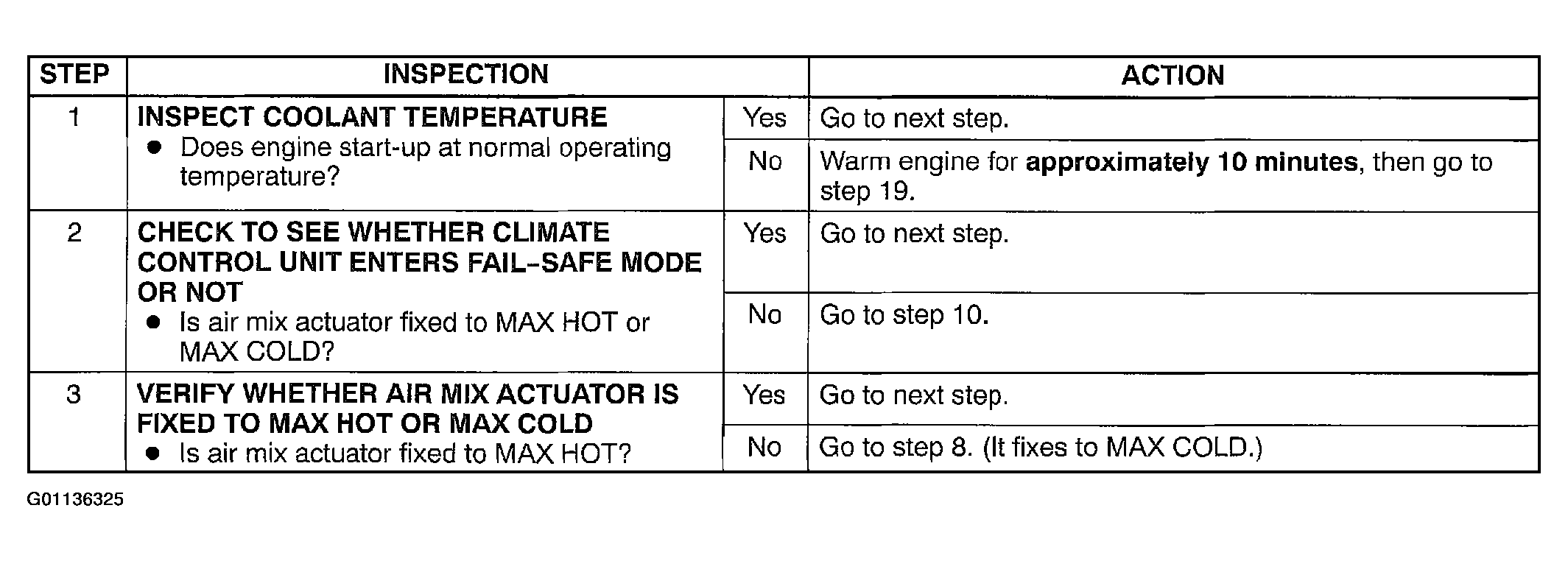

Fig 2: No. 3 Air Outlet Temperature Does Not Change - Diagnostic Procedure (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

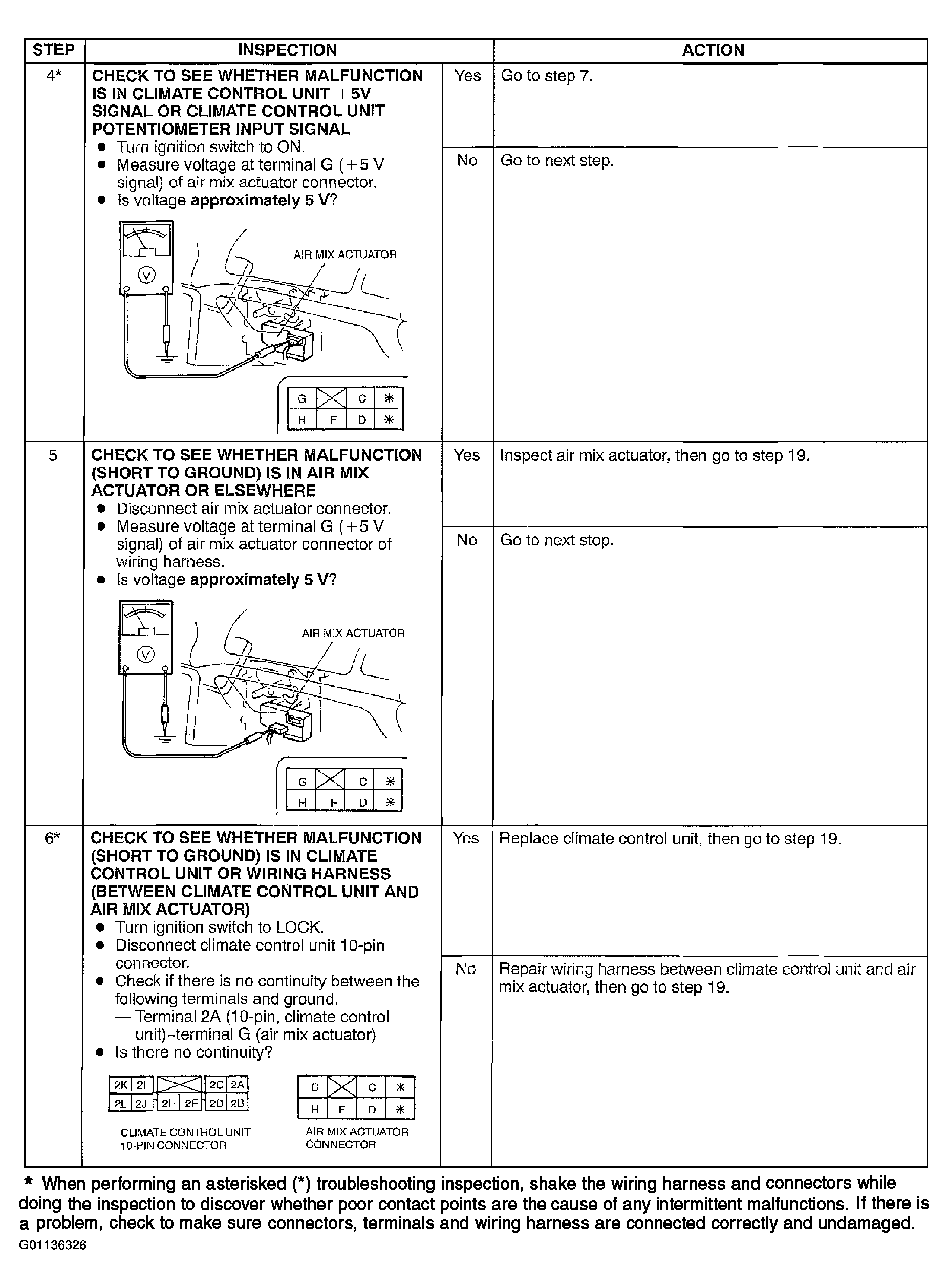

Fig 3: No. 3 Air Outlet Temperature Does Not Change - Diagnostic Procedure (Steps 4-6)

Courtesy of MAZDA MOTORS CORP.

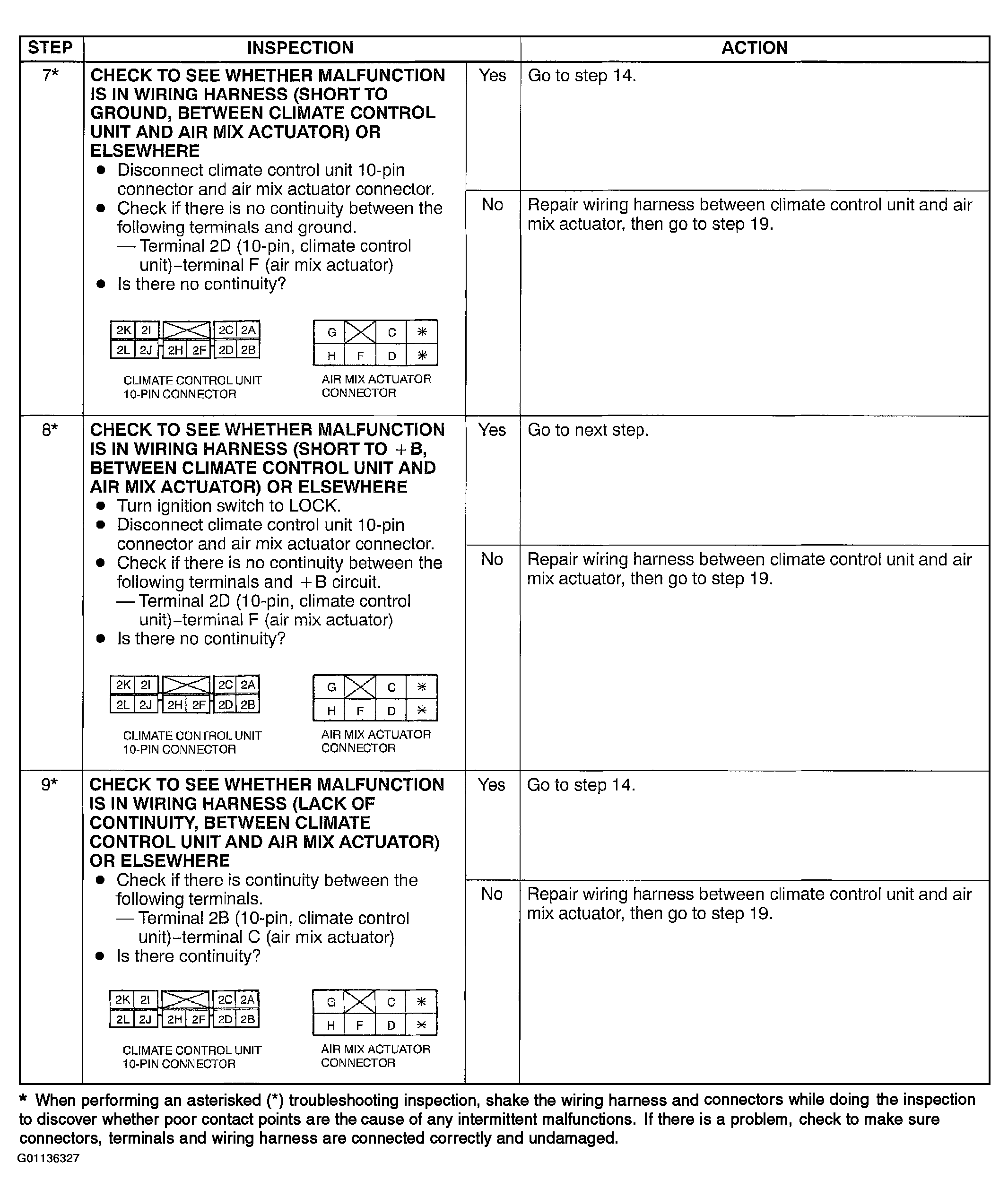

Fig 4: No. 3 Air Outlet Temperature Does Not Change - Diagnostic Procedure (Steps 7-9)

Courtesy of MAZDA MOTORS CORP.

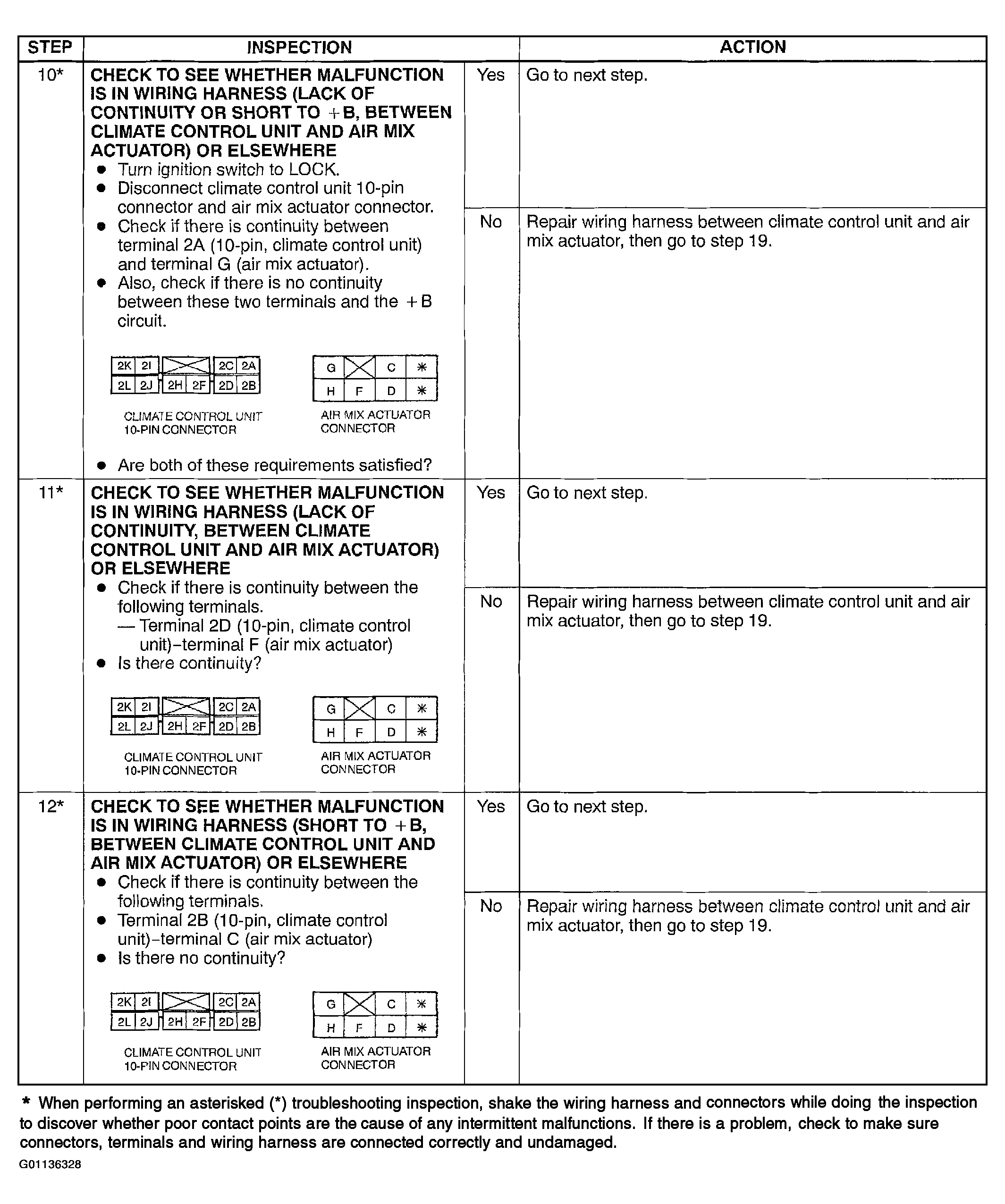

Fig 5: No. 3 Air Outlet Temperature Does Not Change - Diagnostic Procedure (Steps 10-12)

Courtesy of MAZDA MOTORS CORP.

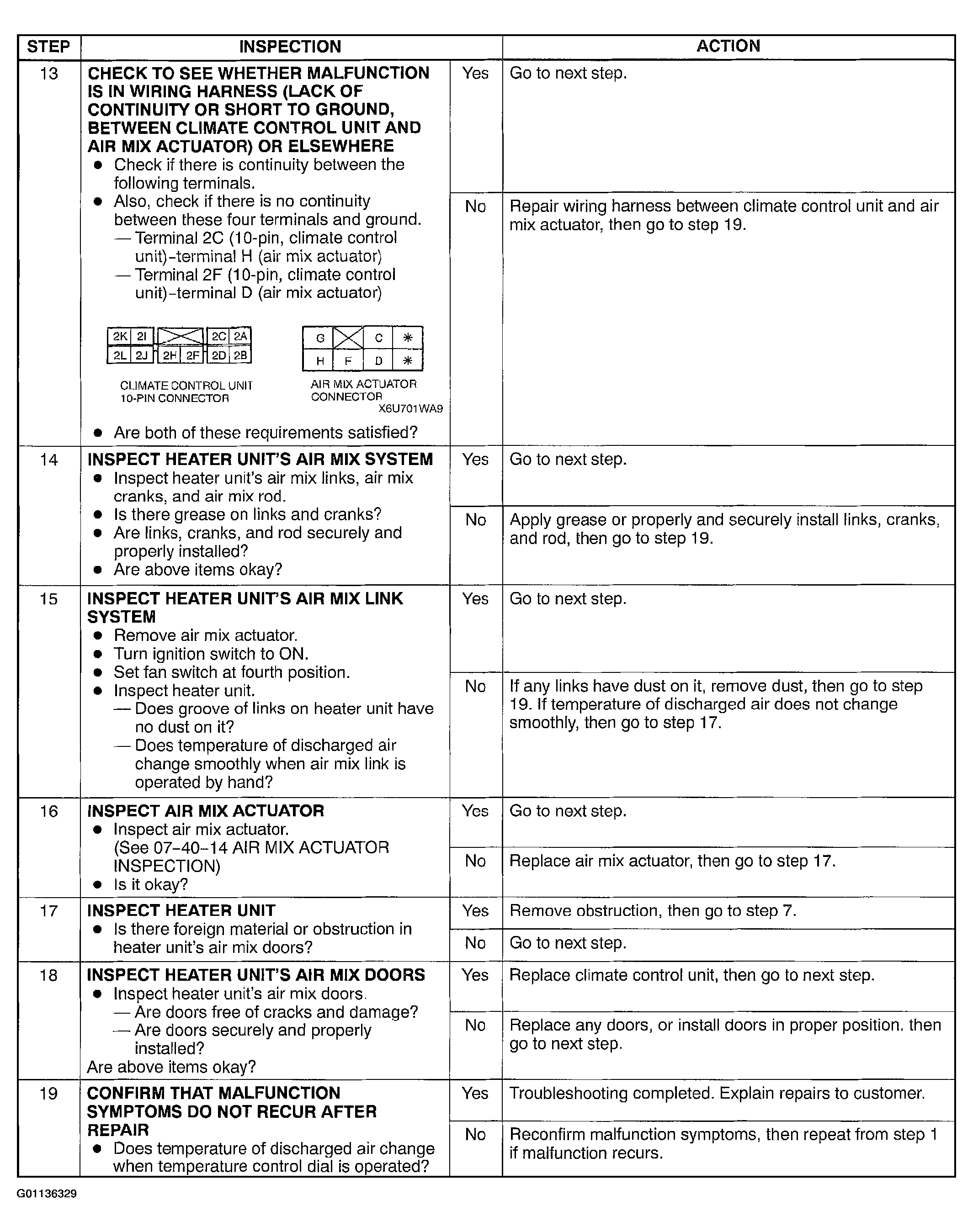

Fig 6: No. 3 Air Outlet Temperature Does Not Change - Diagnostic Procedure (Steps 13-19)

Courtesy of MAZDA MOTORS CORP.
