No. 2 Illumination Light And Indicator Light In Each Switch Do Not Illuminate

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

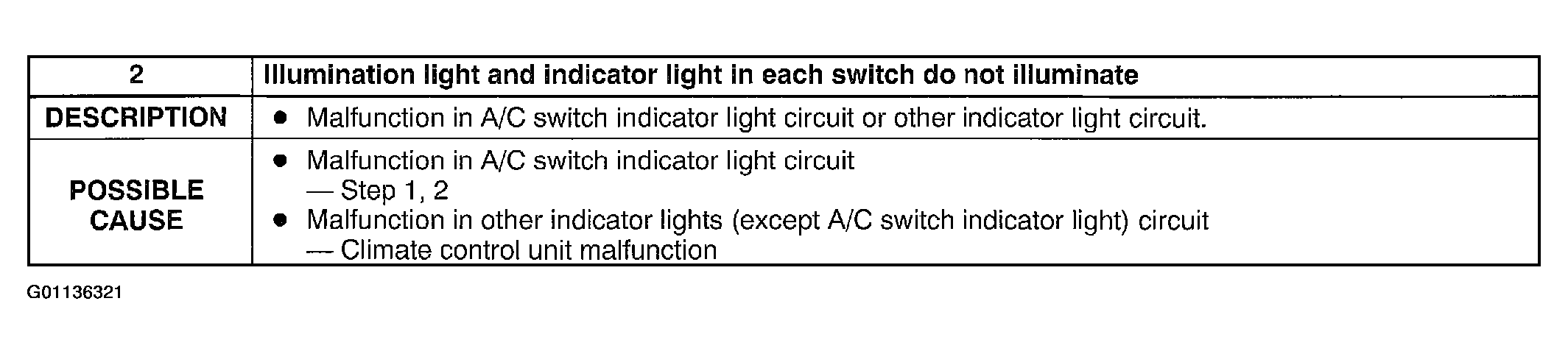

Fig 1: No. 2 Illumination Light & Indicator Light In Each Switch Do Not Illuminate - Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

Diagnostic procedure

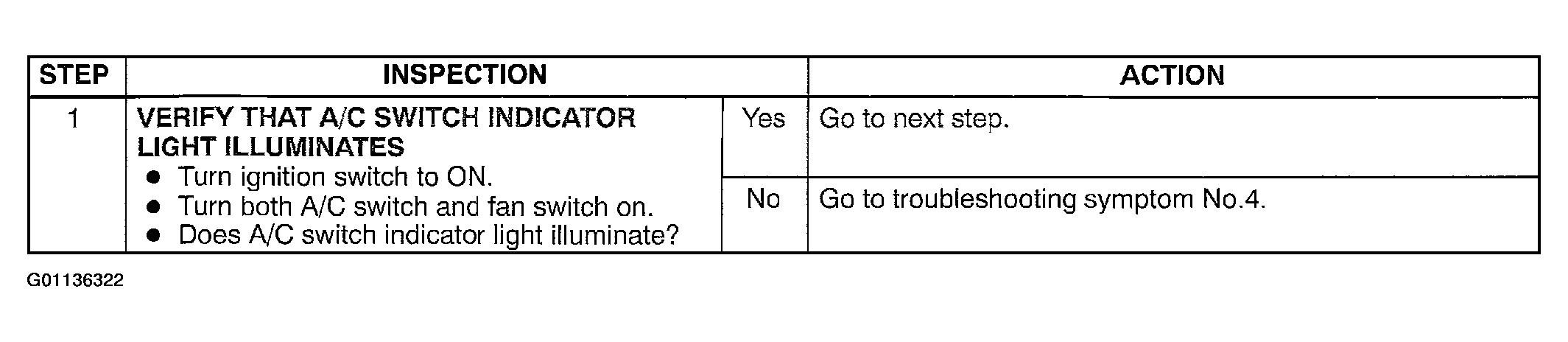

Fig 2: No. 2 Illumination Light & Indicator Light In Each Switch Do Not Illuminate - Diagnostic Procedure (Step 1)

Courtesy of MAZDA MOTORS CORP.

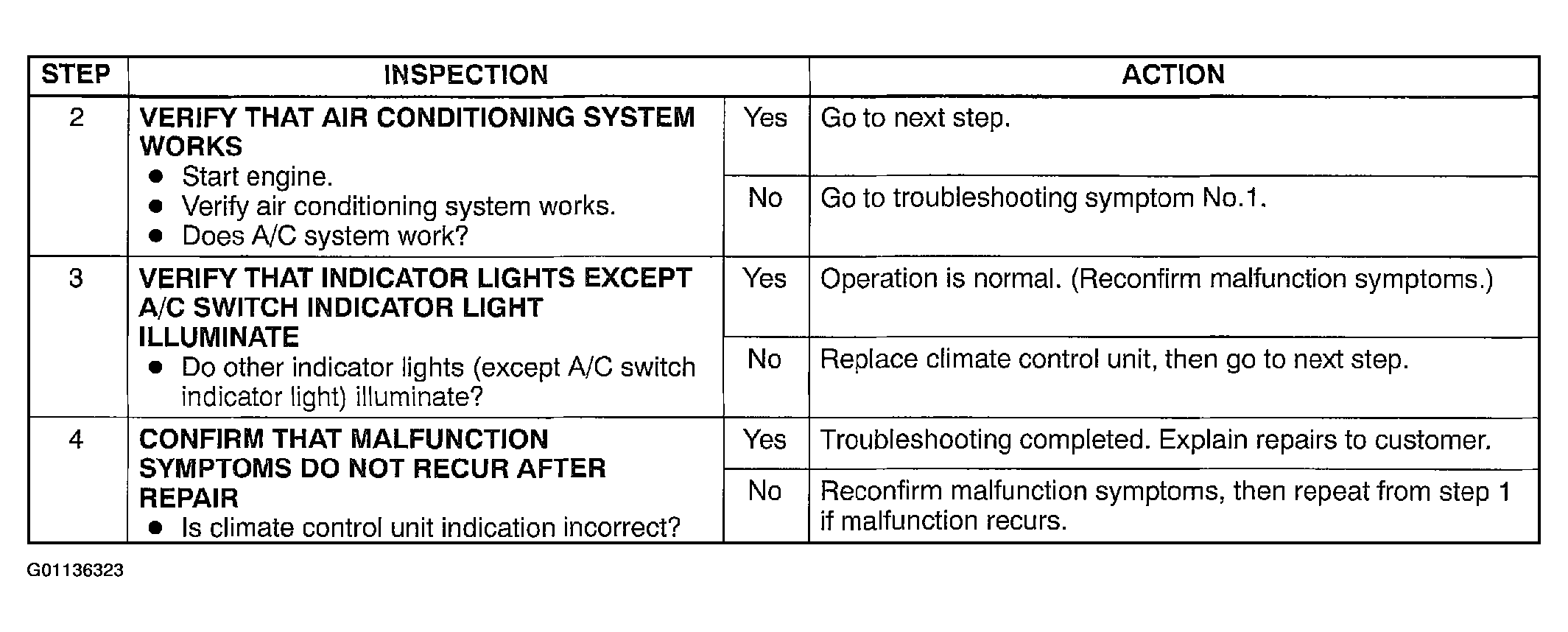

Fig 3: No. 2 Illumination Light & Indicator Light In Each Switch Do Not Illuminate - Diagnostic Procedure (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.
