No. 1 Air Conditioning System Will Not Work At All

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

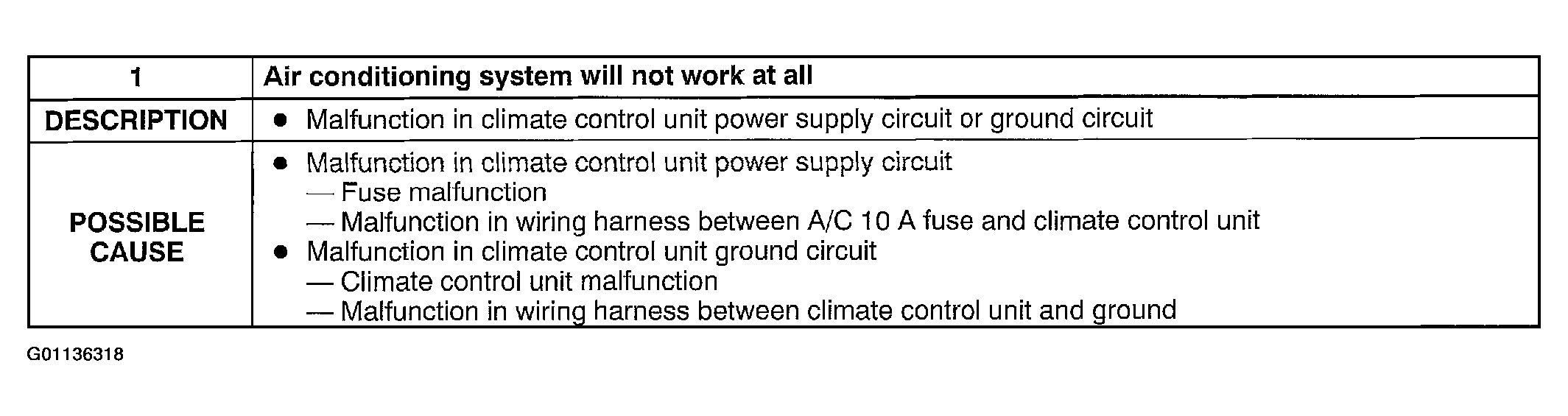

Fig 1: No. 1 Air Conditioning System Will Not Work At All - Description & Possible Causes

Courtesy of MAZDA MOTORS CORP.

Diagnostic procedure

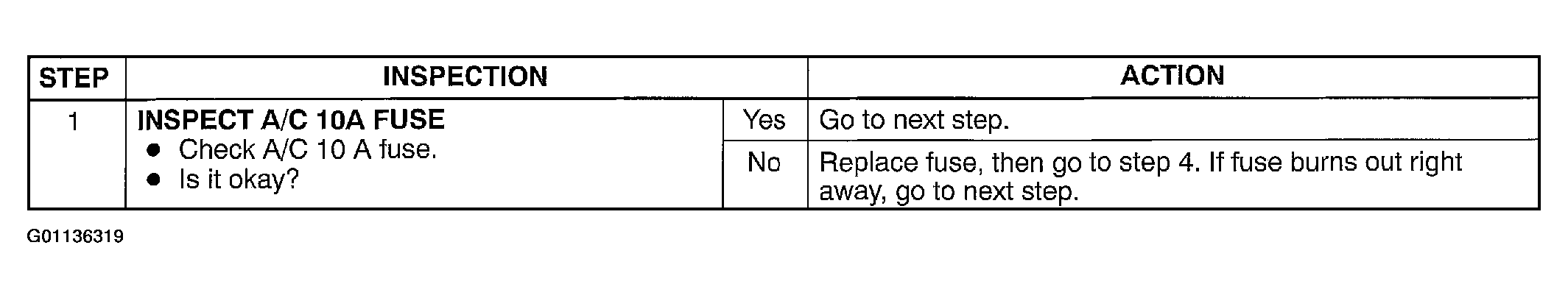

Fig 2: No. 1 Air Conditioning System Will Not Work At All - Diagnostic Procedure (Step 1)

Courtesy of MAZDA MOTORS CORP.

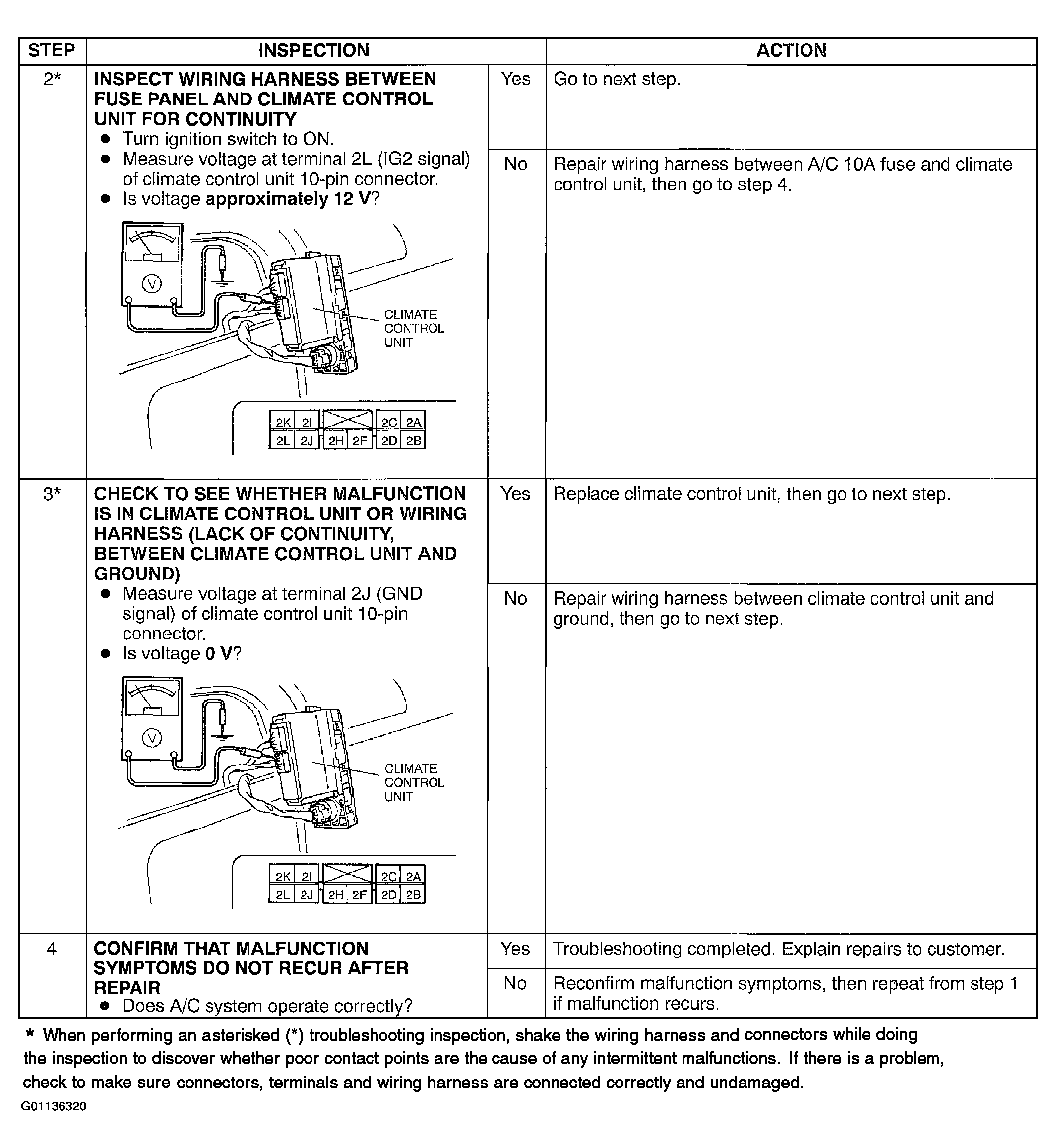

Fig 3: No. 1 Air Conditioning System Will Not Work At All - Diagnostic Procedure (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.
