Engine Mounting/Dismounting: Mounting

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

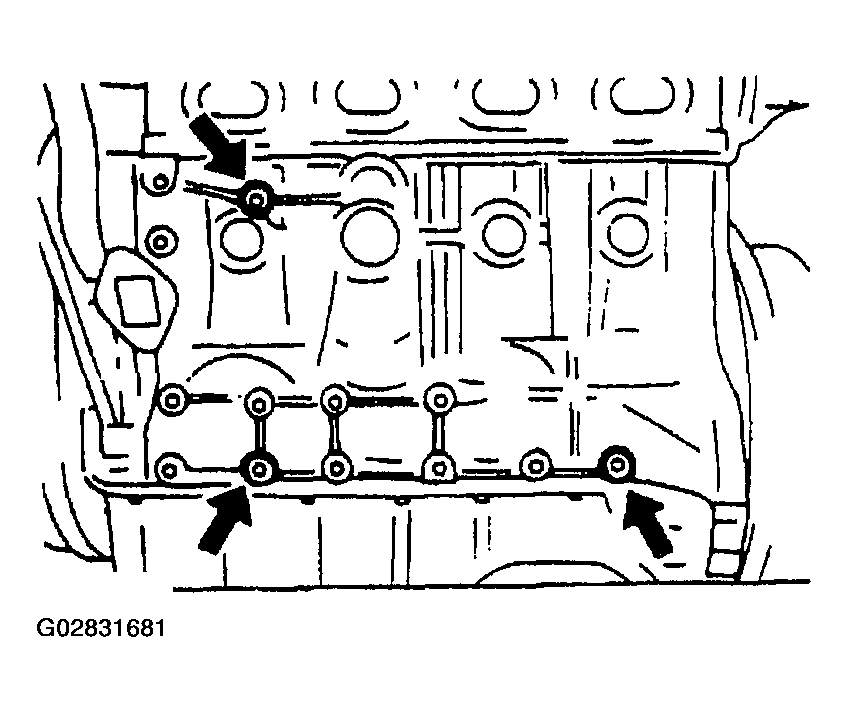

Use the holes shown in the figure.

Fig 1: Identifying SST Mounting Holes
Courtesy of MAZDA MOTORS CORP.

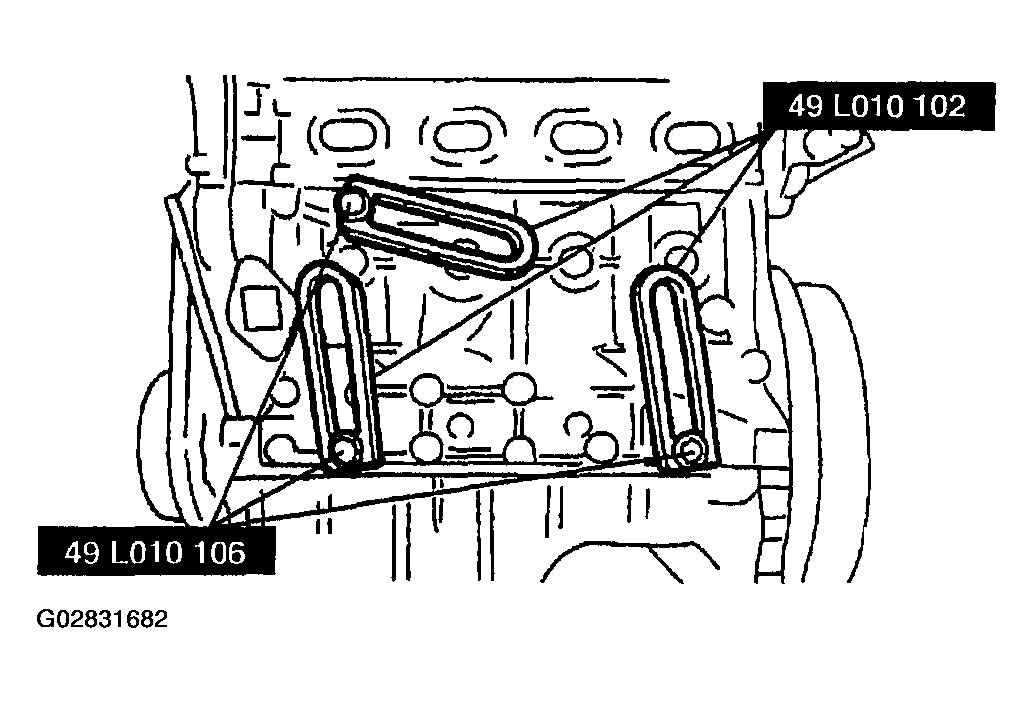

Install the SST (arms) to the cylinder block holes as shown, and hand-tighten the SST (bolts).

Fig 2: Installing SST Arms To Cylinder Block
Courtesy of MAZDA MOTORS CORP.
Assemble the SST (bolts, nuts, and plate) in the specified positions.

Fig 3: Identifying SST Mounting Positions
Courtesy of MAZDA MOTORS CORP.
Install the SST assembled in step 3 to the respective arms.
Adjust the SST (bolts) so that less than 20 mm {0.79 in} of thread is exposed.

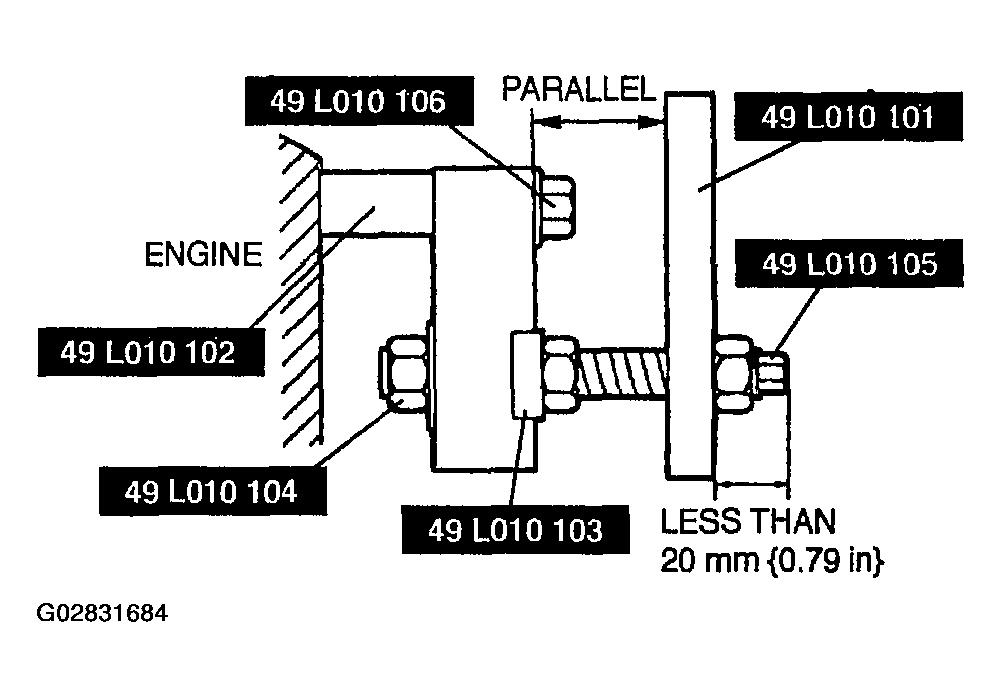

Make the SST (plate and arms) parallel by adjusting the SST (bolts and nuts).

Fig 4: Adjusting SST Plate & Arms
Courtesy of MAZDA MOTORS CORP.
Tighten the SST (bolts and nuts) to affix the SST firmly.
WARNING:
- The self-locking brake system of the engine stand may not be effective when the engine is held in an unbalanced position. This could lead to sudden, rapid movement of the engine and mounting stand handle and cause serious injury. Never keep the engine in an unbalanced position, and always hold the rotation handle firmly turning the engine.
Mount the engine on the SST (engine stand).

Fig 5: Mounting Engine To Engine Stand
Courtesy of MAZDA MOTORS CORP.
Drain the engine oil.
Install the oil drain plug.
Tightening Torque
1. 30-41 N.m {3.0-4.2 kgf.m, 22-30 ft.lbf}
