Crankshaft Inspection: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Measure the crankshaft runout. Replace the crankshaft as necessary.
Runout
1. 0.04 mm {0.0016 in} max.

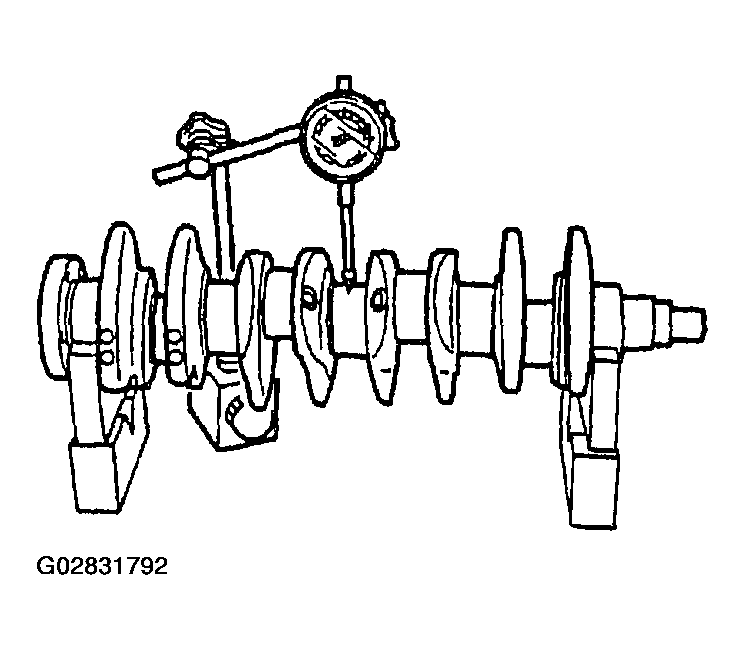

  Fig 1: Measuring Crankshaft Runout
  Courtesy of MAZDA MOTORS CORP.
Measure the journal diameter in X and Y direction at the two points (A and B) as shown. Replace the crankshaft or grind the journal and install the undersize bearing as necessary.
