Timing Belt Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata, 2004 Mazda MX-5 Miata, and 2003 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The following will damage the belt and shorten its life; Forcefully twisting it, turning it inside out, or allowing oil or grease on it.
  1. Mark the timing belt rotation on the belt for proper reinstallation.
    Fig 1: Marking Timing Belt & Identifying Faulty Belts
    G02831690Courtesy of MAZDA MOTORS CORP.
  2. Loosen the tensioner lock bolt.
  3. Push the tensioner in the direction of the arrow and hand-tighten the lock bolt.

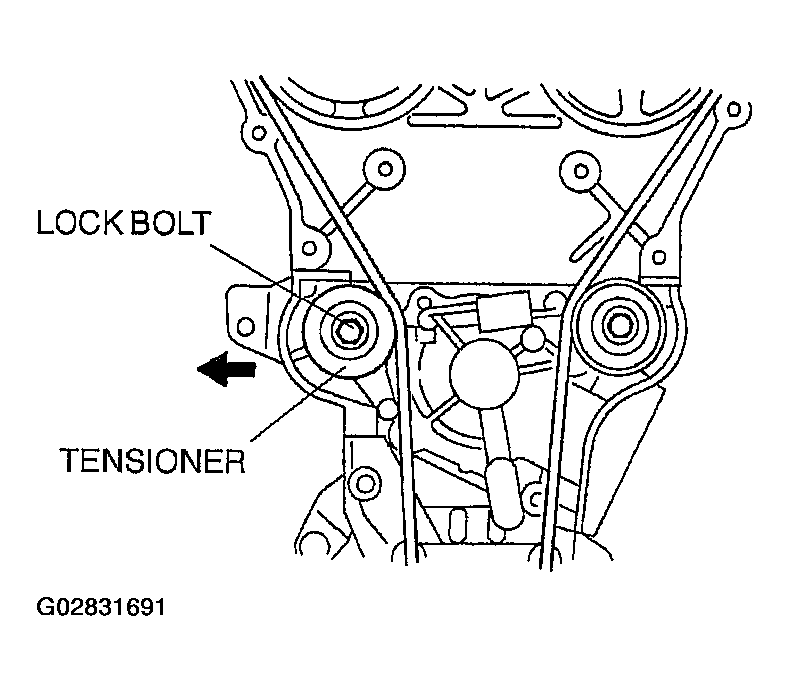

    Fig 2: Identifying Tensioner & Lock Bolt
    G02831691Courtesy of MAZDA MOTORS CORP.
  4. Remove the timing belt.
